Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xingjin / OEM |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5.6 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Plywood outer box with bubble bag or paper |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal, Credit card |
| Supply Ability: | 28000 sets per week |
|
Detail Information |
|||
| Cylinder Volume: | 40L, 70L, 90L, 100L, 120L, 150L, 180L | Capacity Of Gas: | 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |
|---|---|---|---|
| Pattern Of Extinguishing: | Enclosed Flooding | Agent: | Hfc-227ea (FM200) |
| Working Pressure: | 4.2MPa / 5.6MPa | Color: | Red |
| Discharge Time: | ≤10s | Power: | DC24V/1.5A |
| Starting Mode: | Automatic, Electrical Manual, Mechanical Emergency Manual | Product Name: | Fm200 Fire Suppression System |
| High Light: | 150L FM200 Fire Suppression System,5.6MPa M200 Fire Suppression System,10s fm 200 extinguishing system |
||
Product Description
FM200 4.2MPa Pipeline Fire Suppression System Without Driving Device
Description
• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.
• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no secondary pollution gas.
• The ozone-depleting potential value is zero.
• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.
• It is currently an ideal substitute for the halon extinguishing agent.
• According to different filling pressure, different capacity, different extinguishing agent, different starting mode to assemble.
Parameters
| NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
| 1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2Mpa | 5.6Mpa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s | |
| 6 | Power | DC24V/1.5A | |
| 7 | Nitrogen driving device | 6.0±1.0Mpa | |
| 8 | Storage surroundings | Temperature:-10~50℃ Relative humidity:≤97% |
|
| 9 | Proportion | ≤800m² | |
| 10 | Volume | ≤3600m³ | |
Components
The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.
The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

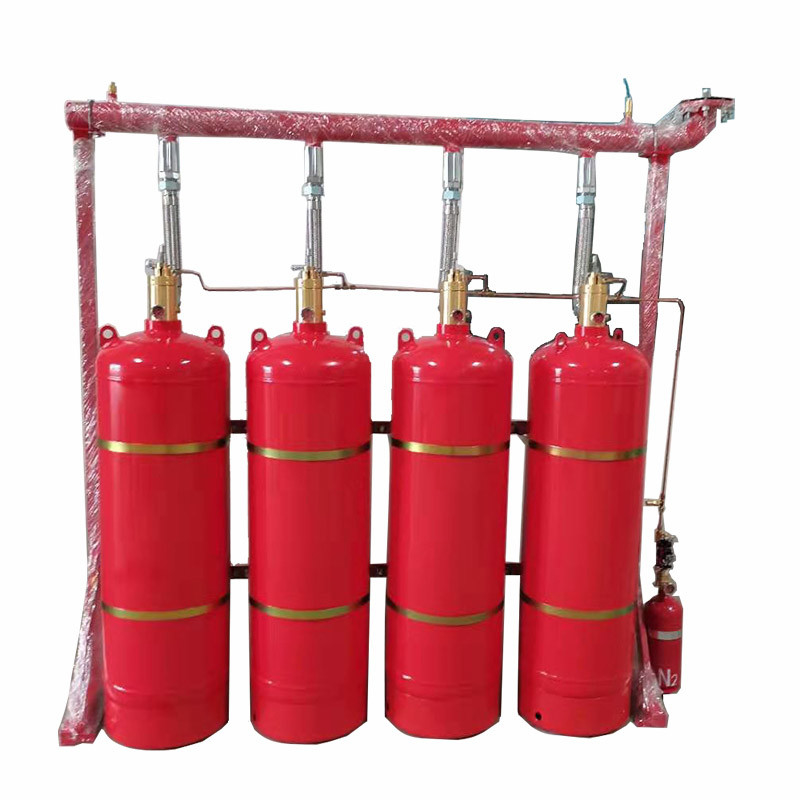

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
Application
The pipe network model of fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Company Introduction
Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in fire suppression system. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All Xingjin staffs welcome everyone from all directions and all industries to come here for visit, guidance and business cooperation.
Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
