Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set system |
| Price: | negotiation |
| Packaging Details: | Plywood case,Paper carton |
| Delivery Time: | 10-15 working days after payment or receipt of L/C |
| Payment Terms: | L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Spraying Time: | ≤10s | Actuation: | Automatic Or Manual |
|---|---|---|---|
| Pattern Of Extinguishing: | Enclosed Flooding | Printed Color: | Silver(cabinet), Red(cylinder) |
| Working Pressure: | 2.5MPa | Capacity Of Gas: | 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |
| High Light: | FM200 Cabinet Extinguisher,100L Cabinet Extinguisher,Single Cylinder Cabinet Extinguisher |
||
Product Description

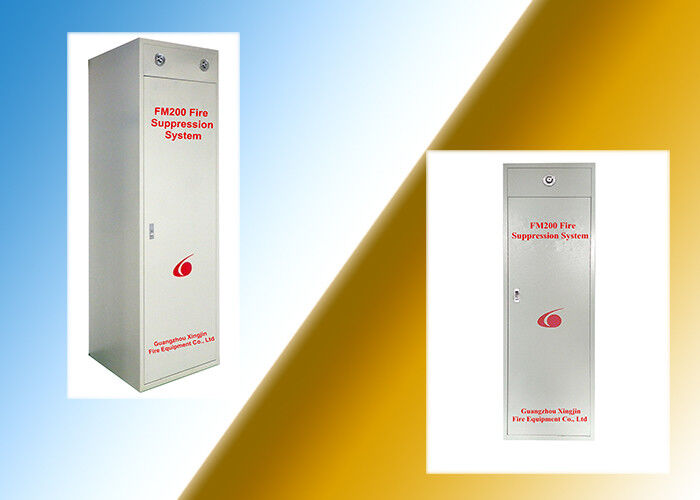

100L FM200 Cabinet Extinguisher Single Cylinder with Two Nozzles
Description:
The fire extinguishing speed, high efficiency, strong initiative.
FM200 clean gas automatic fire extinguishing system can completely extinguish fire within 10 second. Usually, clean gas fire extinguishing agent FM200 relative to the reserve design fire extinguishing concentration is low, only 9%, FM200 clean fire extinguishing agent is liquid to be stored and can be quickly purification clean fire extinguishing gas, highly motivated to put out a fire.
FM200 clean gas automatic fire extinguishing system is very suitable for protection of electrical, magnetic media, documents, or high value of collection and equipment, and the protected objects without damage, without leaving any residue after fire, do not interrupt the daily work of protected areas.
Compositions:
Actually, a complete one set system contains two parts: the extinguishing device(the whole composition is like the photo beside) and electrical elements.
One set cabinet type fm200 fire suppression device is formed by the following components: fm200 agents, a fm200 cylinder, a hoop, a cabinet, a container valve, a solenoid actuator, a flexible hose(high pressure hose), nozzle(s) and pressure switch.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, and the ship's engine room, cargo hold, etc.
Parameter:
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr, 120Ltr,150Ltr,180Ltr |
| 2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | 0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Competitive Advantage:
Cabinet fm200 fire suppression system has a large number of advantages, and here is going to have a brief explanation:
1/ Swift response. Since there is no long distance transportation of pipes, so fm200 gas can be directly discharged into protection zone. Meanwhile, its spraying time is less than 8 second. So it will save more time relatively when the fire happens.
2/ Convenient installation. Compared with pipe network system, cabinet system would be relatively simple to conduct installation. After installation of control panels and electric components, left work is just to connect it with one cabinet fire extinguishing device or devices. But one room should not be matched with more than 4 pieces of it because of the limitation of the output current of a control panel.
3/ Lower cost. Obviously, the price would be cheaper than pipe network type for the protection zone which just needs one single cylinder, because there is no need to consider about the expense of pipes and pipe fittings, also the cost of manpower for this part.
After-Sale Service
-----------------------------------------------------------------------------------
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
