0.6kg/L 5.7MPa CO2 Automatic Fire Extinguishing System

Product Details:
Place of Origin: China
Brand Name: xingjin
Model Number: QME70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of system
Price: negotiation
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Nitrogen Pressure Of Driving Device: 6.0±1.0Mpa(20℃) Spraying Time: ≤60s
Pattern Of Extinguishing: Enclosed Flooding Working Pressure: 5.7MPa
Cylinder Volume: 70L Capacity Of Agent: 42kg
Type: Pipe Network Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual
High Light:

5.7MPa Automatic Fire Extinguishing System


0.6kg/L Automatic Fire Extinguishing System

Product Description

CO2 automatic fire extinguishing system




Fire suppression systems are designed to suppress or extinguish a fire in sensitive environments where water from a fire sprinkler is not a desired extinguishing agent. Common areas where you will find fire suppression systems include server rooms, engine rooms, flammable storage areas, museums, and data centers.

There are a few different types of agents that are used in a suppression system to suppress the fire. In server rooms and environments where you have personnel working in the area, you will usually find clean agent or inert gas suppression systems. In environments where there are few personnel or none at all, you will typically find CO2 fire suppression systems. The areas that you’ll find CO2 fire suppression systems include engine rooms, generator rooms, power stations, flammable liquid storage rooms, and around large industrial machines.

While CO2 fire suppression systems are highly effective at suppressing fires, the CO2 agent also poses a health risk when compared to the other agents. For this reason, you’ll find CO2 fire suppression systems most often in non-occupied environments.




No. Specification Technical Parameter
1 Device Model QME70
2 Capacity 70Ltr
3 Filling Volume of Gas 42kg
4 Working Pressure 5.7MPa
5 Max Working Pressure 12.4MPa
6 Spraying Time ≤60s
7 Max Filling Rate 0.6kg/L
8 Power DC24V/1.6A
9 Working Pressure of Releasing Device Container Valve: 19±0.95MPa;
Manifold: 15±0.75MPa
10 Nitrogen Pressure of Driving 6.0±1.0Mpa(20℃)
11 Condition of Reserving Room for Container Temperature: 0~50℃



0.6kg/L 5.7MPa CO2 Automatic Fire Extinguishing System 0



Pipe network type of CO2 automatic fire suppression system is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

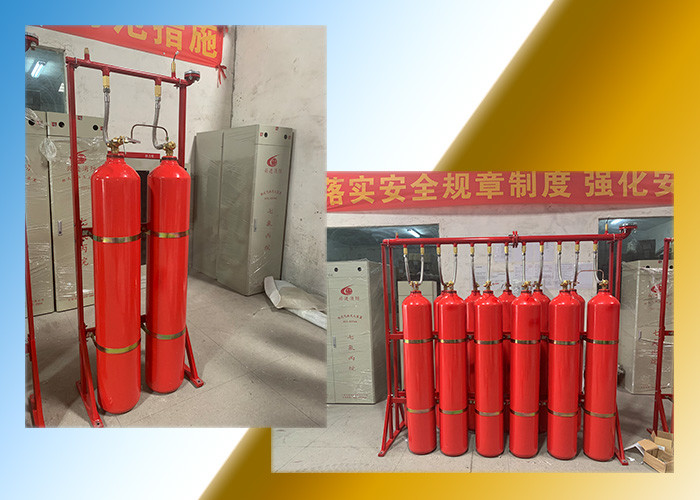

Extinguishing devices are such things, like cylinder to fill and store CO2, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.

Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.


0.6kg/L 5.7MPa CO2 Automatic Fire Extinguishing System 10.6kg/L 5.7MPa CO2 Automatic Fire Extinguishing System 2
