25m Maximum Length Automatic Actuation Fire Detection Tube with Enclosed Flooding for Server Cabinet FM200 Suppression

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 5 sets

Price: negotiable

Packaging Details: Plywood case

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 200 sets per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                fire detection tubing, fire extinguisher tube


Max Length Of Detecting Tube:	25m	Capacity:	42kg
Actuation:	Automatic	Pattern Of Extinguishing:	Enclosed Flooding
Application:	Server Cabinet

Max Length Of Detecting Tube:	25m
Capacity:	42kg
Actuation:	Automatic
Pattern Of Extinguishing:	Enclosed Flooding
Application:	Server Cabinet

Product Description

Product Overview

The FM200 fire trace suppression system is an easy-to-use and highly dependable fire suppression solution. Unlike conventional FM200 systems, it operates without the need for electrical elements to function as a complete unit.

A warning device located at the top of the system performs the same function as electrical components. Whether direct or indirect type, the compositions are identical except for the detecting tube. In the direct type, a single soft pipe serves two roles: the detecting tube and the discharge pipe. In the indirect type, one detecting soft pipe and one tough pipe are used for discharging the agent.

System Components

Direct Type

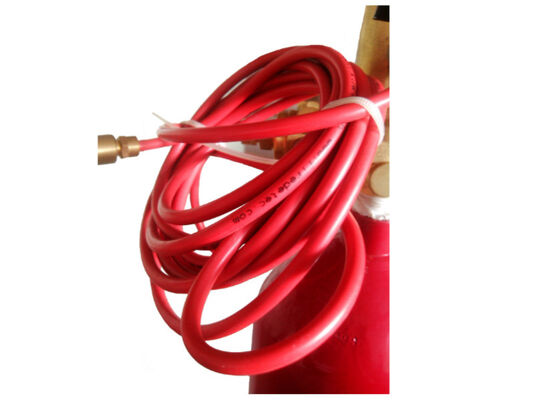

The direct type fire detecting tube suppression system consists of a cylinder, a fire detecting tube up to 25 m long, a container valve, and two agent options: CO2 and FM200.

Indirect Type

The indirect type shares the same components as the direct type, with the addition of a release tube. In this configuration, the fire detecting tube is used solely for detection, so a separate release tube is required. In the direct type, the detecting tube handles both detection and release.

Technical Parameters

No.	Parameter	Direct Type CO2 Device	Indirect Type CO2 Device	Direct Type FM200 Device
1	Storage Pressure (20°C)	5.17 MPa	5.17 MPa	2.5 MPa
2	Max. Working Pressure	12.1 MPa	12.1 MPa	4.2 MPa
3	Min. Agent Needed per Unit	2.5 kg/m³	1.5 kg/m³	0.7 kg/m³
4	Max. Length of Fire Tube	25 m	25 m	20 m
5	Max. Length of Release Tube	—	12 m	—
6	Max. Filling Ratio	0.6 kg/L	0.6 kg/L	1.12 kg/L

Key Advantages

Convenient installation and transportation. The system combines fire fighting and alarm functions, eliminating the need for electrical elements and pipe fittings. After fixing the cylinder in place, simply route the detecting tube around the potential fire source.
Non-electric start mode. No external power is required to activate the system. It operates using its own storage pressure rather than relying on outside force. When the detecting tube is ruptured by fire, the agent discharges automatically.
Minimal space occupation. Ideal for protecting specific equipment such as telecommunication systems rather than entire zones. The cylinder mounts on the outer cabinet and occupies very little space.

Working Procedure

Indirect Type: The fire burns the detecting tube → the warning system sounds an alarm to attract attention → the container valve opens and the agent flows through the discharge pipe due to the pressure change → the agent sprays out and extinguishes the fire.

Direct Type: The fire burns the detecting tube → the warning system rings and the fire agent flows through the detecting tube → the agent reaches the fire location and sprays out to extinguish the fire.
