Data Center FM200 Fire Suppression System with 40 Hanging Tank

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiation
Packaging Details: Plywood case or paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
  • Detail Information
  • Product Description

Detail Information

Agent: Fm200 Capacity Of Cylinder: 40L
Color: Red Actuation: Automatic Electrical
Pattern Of Extinguishing: Enclosed Flooding Standard Of Examination: GB25972-2010
High Light:

fire suppression systems

,

automatic fire suppression system

Product Description

Data Center FM200 Fire Suppression System with 40 Hanging Tank





Parameter:



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start





Description:



    1. Clean gas, colorless and tasteless and non-corrosive

    2. Electric insulation, utilization for extinguishing of electrical combustion

    3. No residue and pollution inside protection zone

    4. No damage to ozone layer

    5. Totally automatic system

    6. Accurate control of protection zone





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is really small and there is no more space to put extinguishing device, this type can be under consideration. Because it will be hanged on the ceiling or attached on the wall.





Simulated diagram:



    Below attached is one mimic diagram of FM200 Fire Suppression System with 40 Hanging Tank,

             Data Center FM200 Fire Suppression System with 40 Hanging Tank 0





Attentions:



1/ One protected zone only allows to be equipped with one temperature-based hanging type fm200 fire extinguisher in case that the fire extinguisher fails to activate at the same time and then lengthen the spraying time.



2/ Users should follow the routine check schedual that we provide in the manual instruction to make sure that the system is always in a good condition.



3/ If there is any problem of the system, we suggest that users shouldn't fix even touch it themselves. The best solution is to call and explain the situation to us first, and then we will send professionals to fix it.



4/ The hanging type fm200 fire extinguisher can install on the celling or on the wall, there is no permanent position.

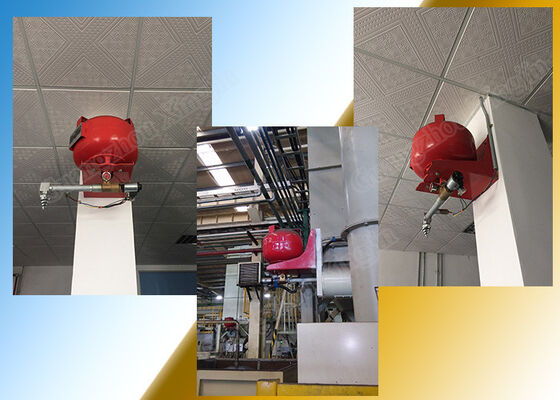

Data Center FM200 Fire Suppression System with 40 Hanging Tank 1



Company Introduction:


Guangzhou Xingjin Fire Equipment Co., Ltd. is located in Guangzhou, which plays a significant role in communication between China and the rest of the globe. We are a manufacturer, and we commit ourselves to the research and development of HFC-227ea (FM200) products with our professional and mature team, which includes the program design team, the skilled installation team, the quality detecting team, and the after-sales service team. Our popular FM200 products, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube, are now widely used.



Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
