Single Cabinet HFC227ea Fire Suppression System with Enclosed Flooding for Medical Equipment Protection

The Single Cabinet HFC227ea Fire Suppression System is a clean-agent, self-contained solution engineered specifically for the protection of medical equipment and other high-value assets. Its compact cabinet design eliminates the need for a piped network, making installation straightforward and cost-effective for small to medium-sized protection zones.

• The agent quantity stored for the largest zone is sufficient to protect all zones through selector valves.
• Delivers direct targeting to expensive machinery and delicate devices.
• Operates without the need for monitoring staff.
• Supports manual, electromagnetic, and mechanical actuation methods.
• Leaves no residue and causes no pollution within the protected zone.
• Does not damage the ozone layer.

This system is suitable for a wide range of sensitive and high-risk environments, including:

• Electronic computer rooms, data processing centers, and telecommunications facilities
• Process control rooms and expensive medical equipment
• Industrial equipment, clean rooms, and anechoic chambers
• Libraries, museums, and art galleries
• Emergency power facilities and flammable liquid storage areas

It is also ideal for locations where fire is likely to occur, such as paint-spraying production lines, aging electrical equipment, rolling machines, printing machines, oil switches, oil-immersed transformers, melt impregnating tanks, large generators, drying equipment, cement production pulverized coal processes, ship engine rooms, and cargo holds.

The HFC227ea agent is effective against all classes of fire except metal fires, and it functions as a clean agent that leaves no residue or pollution after extinguishing. This makes it particularly suited to critical assets and delicate devices, as it causes no damage to protected property while remaining a cost-effective fire suppression choice.

The system is highly efficient: the extinguishing device discharges the full agent charge in under 10 seconds, enabling rapid flooding of the protected area. A built-in time-delay mechanism of approximately 2 minutes provides sufficient time for personnel to evacuate the hazardous zone after a fire is detected.

Unlike piped-network FM200 systems, this cabinet-type unit requires no pipeline installation, making it simple to deploy. For relatively small protection zones with no more than three sub-zones, it offers significant cost savings compared with piped alternatives.

A complete system consists of two parts: the extinguishing device and the electrical elements. Each cabinet-type FM200 fire suppression device is assembled from the following components:

• FM200 agent
• FM200 cylinder
• Mounting hoop
• Cabinet
• Container valve
• Solenoid actuator
• Flexible high-pressure hose
• Nozzle(s)
• Pressure switch

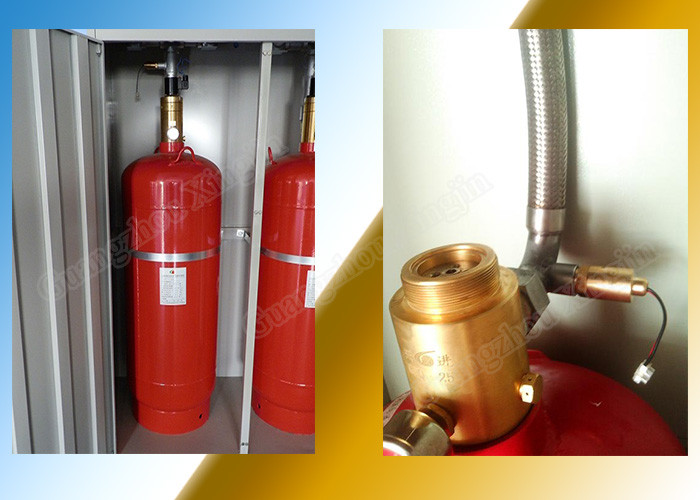

Cabinet-type HFC227ea fire suppression device and its internal components.
