China FM200 Fire Suppression System manufacturer

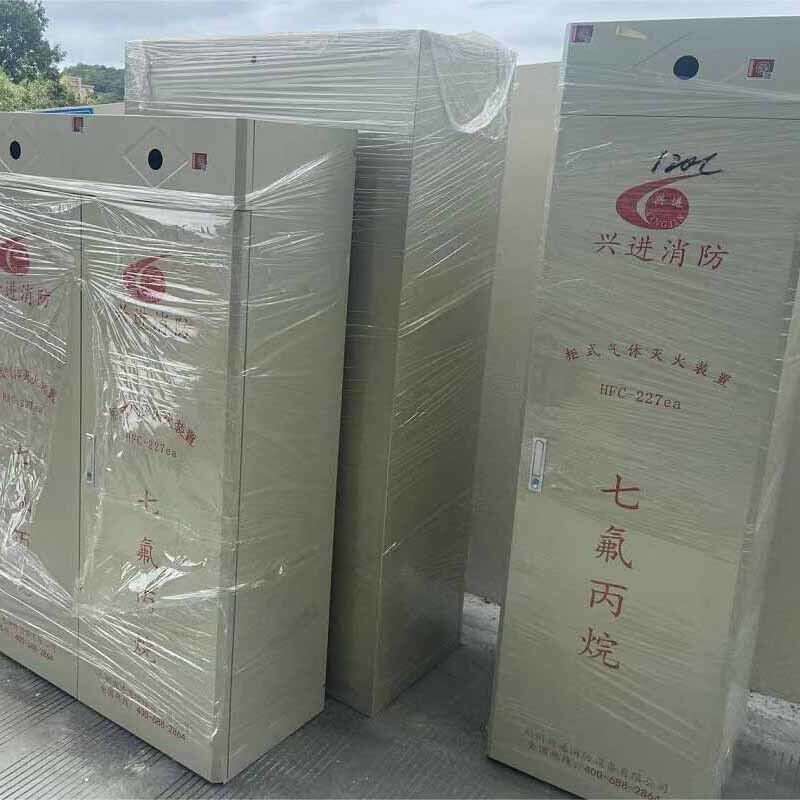

150L Fm200 Restaurant Fire Suppression Systems No Pipe Network

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case,Paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card
Supply Ability: 3,00 set per month

Detail Information

Max Working Pressure: 4.2Mpa Working Temperature: 0~50℃
With Pipe Network Or Not: No Pipe Network Cabinet Quantity: Double
Agent: Fm200(htc-227ea Or Heptafluoropropane) Capacity Of Cylinder: 150L

Product Description

150L Fm200 Restaurant Fire Suppression Systems No Pipe Network





Parameter:



No. Specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 Max working pressure 4.2Mpa





Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.

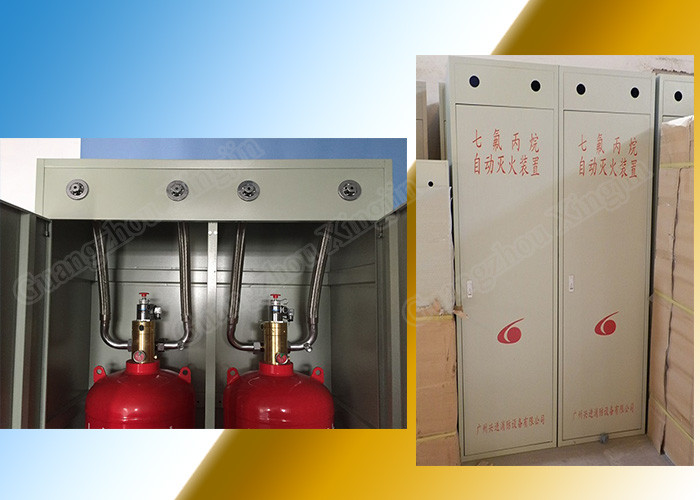

Compositions:



    The components of the cabinet type fm200 fire suppression system is very simple. A set of electrical elements and fire extinguishing device together make up a complete cabinet type fm200 fire suppression system. A special part only for electrical elements will be placed after this chapter, so here is not going to explain it.

    The fire extinguishing device is composed by the following compositions:

1/ fm200 fire agent

2/ fm200 cylinder

3/ container valve

4/ flexible hose

5/ nozzle

6/ cabinet





Applications:



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Working principle:



    Here is the illustration of working principle to whole system, it will show you the complete woking sequence of the system:



                 150L Fm200 Restaurant Fire Suppression Systems No Pipe Network





Attentions:



1/ The proportion of the protected zone should be smaller than 500 square metres; the volume of the protected zone shouldn't be bigger than 1600 cubic metre.



2/ There should be some routine checks for the fire suppression system in case that some mistakes hinder the activation of the system.



3/ If there is any mistake, users should first contact us and do not touch anything. All the maintenance should be performed by our professionals.
