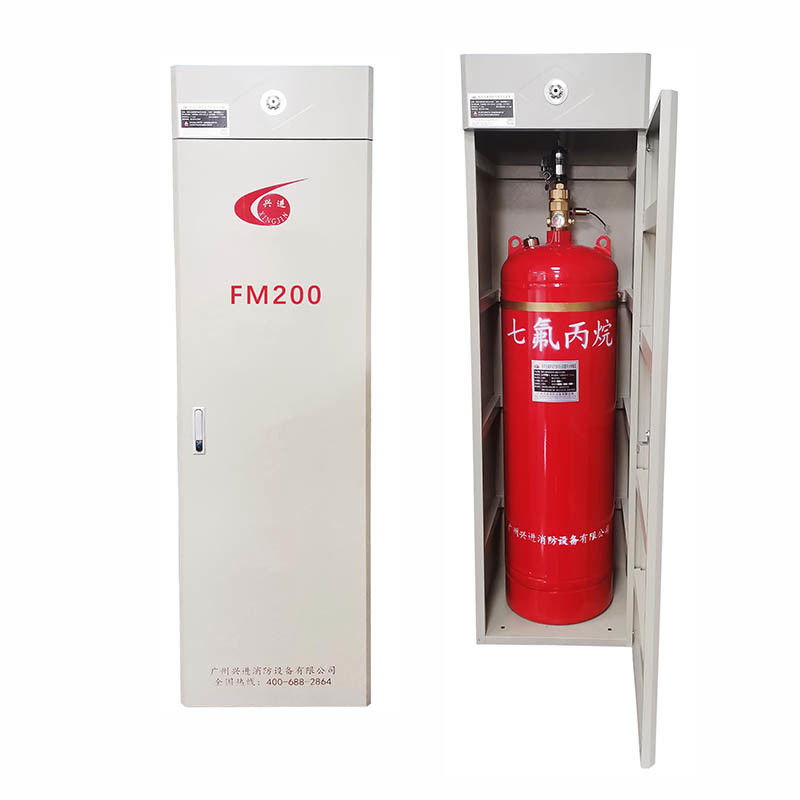

Nontoxic And Odorless FM200 Heptafluoropropane Fire Suppression System Cabinet Type

Product Description

 Nontoxic And Odorless FM200 Heptafluoropropane Fire Suppression System Cabinet Type





Description:



    1. Totally automatic system

    2. Accurate control and monitoring of protection zone

    3. No need for employment of monitor staff

    4. Manual or electromagnetic manipulation and mechanical manipulation

    5. Preparation for storage room

    6. Space confirmation of placement for cylinder group





Compositions:



   Pipe network fm200 fire suppression device is composed of the following components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.



   If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and selective valve should be got rid of from its composition.









Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, and the ship's engine room, cargo hold, etc.





Parameter:



NO.	Specifications	Parameters
		4.2Mpa	5.6Mpa
1.	Capacity	70l,100l,120l,150l,180l	90l,120l
2.	Filling pressure	4.2Mpa	5.6Mpa
3.	Filling density	≤950kg/m³	≤1080kg/m³
4.	Discharge time	≤10s	≤10s
5.	Power	DC24V/1.6A	DC24V/1.6A
6.	Nitrogen driving device	6.0±1.0Mpa	6.0±1.0Mpa
7.	Storage surroundings	Temperature:-10~50℃ Relative humidity:≤97%	Temperature:-10~50℃ Relative humidity:≤97%
8.	proportion	≤800m²	≤800m²
9.	volume	≤3600m³	≤3600m³



Competitive Advantage:



   Every fire suppression system has its strong points. here is going to throw light upon the pipe network type fm200 fire suppression system.

   Strong points:



1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.



2/ Efficient spraying of gas. One set of pipe network system can make the discharge on average for big zones in a short time with the help of the deployment of the pipeline.



3/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building but with different dimensions or on different floor. Meanwhile, it can reduce the cost based on the original by the least and safe utilization of fire extinguishing gas. Because of the adoption of selective valves that can guide the fire extinguishing gas into the room on fire, so it would be relatively smarter to monitor each room to avoid an accident. It is worthy to mention that the combined rooms should be at most 8 in accordance with our standard.

Application

The clean agent gas may put out fires without causing damage and is safe for electronic devices.



-Telecommunications facilities: Large facilities that store telecommunications equipment frequently need fire suppression systems. System FM200 can defend against fires that can damage crucial communication infrastructure.



-Museums and art galleries: These establishments frequently house priceless and irreplaceable treasures that need to be safeguarded. Fires can be put out by FM200 devices without endangering the artifacts with water or other damages.



-Data centers are crucial to the running of many businesses and organizations because they contain enormous volumes of vital data. System FM200 can defend against fires that can result in data loss or disruption.



-Control rooms: To monitor and manage complicated processes, control rooms are frequently utilized in industrial and manufacturing environments. Fires that could obstruct these operations and cause substantial damage are protected by FM200 devices.



Medical and research facilities: These establishments frequently include delicate equipment and supplies that require fire protection. Fires can be put out with FM200 systems without endangering the materials or equipment.

















































































































Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.









After-Sale Service

• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
