Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | QMH20/80, QMH30/80 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Plywood outer box with bubble bag or paper |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal, Credit card |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Cylinder Volume: | 80L | Capacity: | 23.9kg(20MPa), 33.56kg(30MPa) |
|---|---|---|---|
| Pattern Of Extinguishing: | Enclosed Flooding | Agent: | IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide) |
| Working Pressure: | 20MPa, 30MPa | Color: | Red |
| High Light: | Inergen Clean Agent Fire Suppression System,IG541 Fire Suppression System,30MPa Inert Gas Fire Suppression System |
||
Product Description

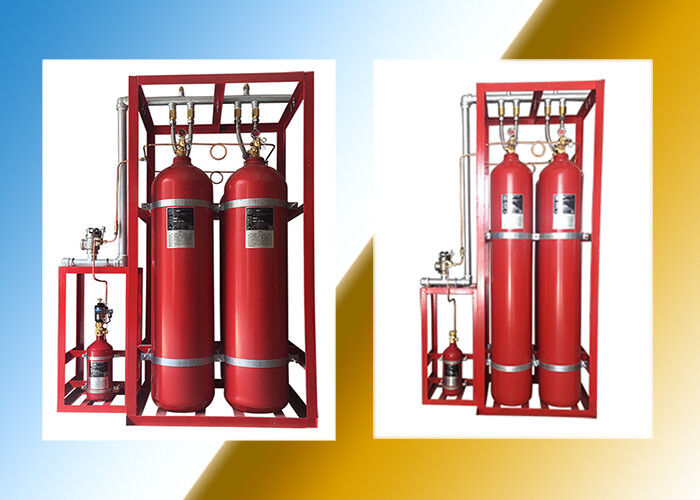

30MPa IG541 Inergen Fire Suppression System
Description
Another sort of clean agent fire suppression system that is intended to put out flames quickly and effectively without harming delicate equipment or leaving behind residue is the IG541 automatic fire extinguishing system. The method produces a non-conductive, non-conductive, and environmentally benign fire-extinguishing agent using a combination of three naturally occurring gases: nitrogen, argon, and carbon dioxide.
The IG541 system is frequently employed to safeguard control rooms, server rooms, data centers, and communication hubs. The apparatus quickly delivers the extinguishing chemical into the enclosed space when heat or smoke are detected. The mechanism is activated by a fire detection system.
By lowering the enclosed space's oxygen content to a point below which combustion cannot occur, the IG541 system puts out fires. The system is made to put out fires quickly and effectively while causing as little damage as possible to the structure or the equipment it is protecting.
The IG541 system's architecture is straightforward and dependable, making installation and maintenance easy. It works well for many different purposes. The system is quite flexible and may be set up to satisfy different fire prevention needs.
The IG541 system has the advantage of being an environmentally safe option for fire suppression because it has a low potential for ozone depletion and global warming. Additionally, the system is safe to use in occupied spaces because the extinguishing chemical is non-toxic and doesn't produce any hazardous byproducts.
Overall, the IG541 automatic fire extinguishing system minimizes damage and downtime while providing timely and effective protection for irreplaceable facilities and equipment.
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 20MPa | 30MPa |
| 2 | Device Model | QMH20/80 | QMH30/80 |
| 3 | Capacity | 80Ltr | 80Ltr |
| 4 | Filling Capacity of Gas | 22.37kg | 33.56kg |
| 5 | Filling Rate | 0.29kg/L | 0.42kg/L |
| 6 | Outside Diameter of Cylinder | Φ286mm | Φ267mm |
| 7 | Height of Cylinder | 1910mm | 1770mm |
| 8 | Max Working Pressure | 23.2MPa | 36.6MPa |
| 9 | Min Working Pressure | 18MPa | 27MPa |
| 10 | Spraying Time | ≤120s | |
| 11 | Power | DC24V/1.6A | |
| 12 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | |
| 13 | Condition of Reserving Room for Container | temperature: 0~50℃ | |
Application
Leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural artifacts, etc. are just a few examples of the rooms that are available.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Advantages
One benefit of the agent, according to its description, is that it may be applied to all classes of class fires, with the exception of metal flames. Additionally, it is a clean agent. There are no aftereffects of the fire's suppression in terms of pollution.
Another is the IG541 extinguishing system's proficiency in handling important items or machinery. There won't be any harm done to your products as a result. It is a low cost fire suppression system that works well.
You can adequately secure your possessions by doing this. It is equipped with an extinguishing device that can put out a fire quickly, ideally in less than 10 seconds. It implies that all agents will be rapidly discharged in this way. The result will be widespread flooding. Also included is a time delay mechanism. It takes around two minutes. It suggests that there will be ample time to safely evacuate everyone in the case of a fire.
It can enable the secure management of multiple zones by a single system. As a result, large and numerous zones will experience huge cost savings.
Mimic Diagram
Multiple cylinders for one zone
Multiple cylinders for multiple zones
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
