FM200 gas Fire extinguishing equipment
120L Red Automatic FM200 Fixed Fire Suppression System Design With Low Maintenance High Quality Cheap Price Flexible
Description
Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system. The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.
This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.
Parameters
| NO. |
Specifications |
4.2Mpa system |
5.6Mpa system |
| 1 |
Capacity |
40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr |
70Ltr,90Ltr,120Ltr |
| 2 |
Device model |
QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 |
QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 |
Filling pressure |
4.2Mpa |
5.6Mpa |
| 4 |
Max filling rate |
0.95kg/L |
1.08kg/L |
| 5 |
Discharge time |
≤10s |
| 6 |
Power |
DC24V/1.6A |
| 7 |
Nitrogen driving device |
6.0±1.0Mpa |
| 8 |
Storage surroundings |
Temperature:-10~50ºC
Relative humidity:≤97% |
| 9 |
Proportion |
≤800m² |
| 10 |
Volume |
≤3600m³ |
Components
The pipe network type fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

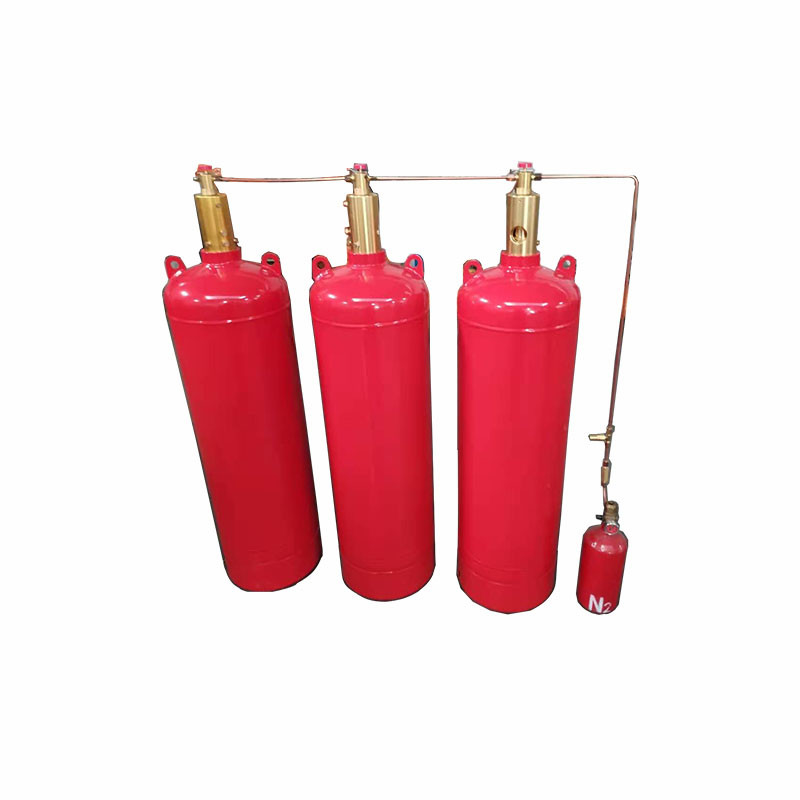

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
Part Cases Show
• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School, Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City, Tobacco Building, etc.
• In Guangdong province, the project cases are GAC Group, 10086 in Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air Controller, Yingfu Building in Shenzhen, Bank of Communication in Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV Station, etc.
• In Shandong province, the project cases are Lushang Office Building, Lushang Marketing Center, etc.
• Part in Sichuan
• Part in Guangdong
• Part in Foreign Country
Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
