China FM200 Fire Suppression System manufacturer

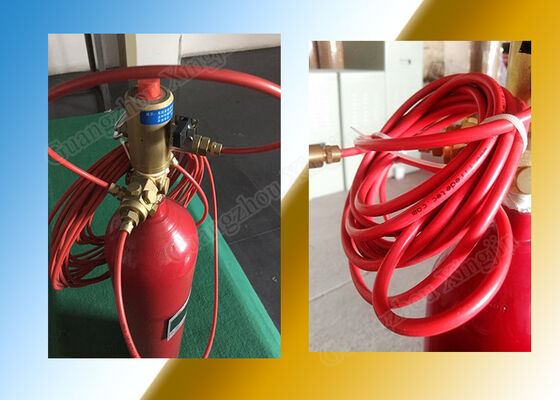

Clean And Pure FM200 Fire Trace Suppression System / HFC-227ea Fire Trace Extinguisher

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 200 sets per week

Detail Information

Working Temperature: 0-50℃ Capacity: 3kg Fm200
Zone Management: Single Pattern Of Extinguishing: Enclosed Flooding
Standard Of Examination: GB25972-2010 Material: Seamless Steel Cylinder

Product Description

Clean And Pure FM200 Fire Trace Suppression System / HFC-227ea Fire Trace Extinguisher





Parameter:



No. Specification Technical parameter
1 Type Fm200 direct type
2 model WZ-Q/T-QZ3-XJ60
3 Working pressure 2.5Mpa
4 Max working pressure 4.2Mpa
5 Working temperature 0-50℃
6 Density of unit volume 0.7kg/m3
7 Max length of detecting tube 20m
8 Quantity of agent 3kg





Description:



    Fire detect tube through the container valve connected to the fire extinguishing agent containers, for fire detection, fire tube blasting, in case of fire , the pressure drop in the pipe of the fire, start the container Valves, by the transformation of the containers in the valve outlet Joint, lowered the extinguishing agent to the original fire tube explosion Broken hole to release.

    The fire agent is a kind of clean, odorless and tasteless gas, which won't endanger the ozone layer. Because of its environmently friendly characteristic, fm200 fire suppression system is seen as a good alternative to the halon series.





Composition:



    Fm200 fire trace suppression system can be divided into two types, direct type and indirect type. Direct type fm200 fire trace suppression system is formed by: cylinder with container valve and fire detecting tube. The difference between direct type and indirect type is that indirect type has one more component, the releasing tube.

    This type of fire suppression system is no need to use with electrical elements, because its top part has a small warning alarm. When the system starts working, the warning alarm will ring together.

                 Clean And Pure FM200 Fire Trace Suppression System / HFC-227ea Fire Trace Extinguisher





Applications:



    Power plants, communications, broadcasting, petrochemical, railway and so on system.



              Clean And Pure FM200 Fire Trace Suppression System / HFC-227ea Fire Trace Extinguisher





Advantages:



    The fire detecting tube fire suppression device has the following advantages:



1/Convenient installation and transportation. Because this system combines fire fighting and alarm function together, and no needs to match electrical elements and pipe fittings, so after fixing the cylinder on a place, all left to do is fixing the detecting tube around a potential source of fire.



2/Non-electric start mode. It doesn’t need the power to activate the system. This system’s work principle is using its own storage pressure instead of relying on the outside force activating. When the detecting tube is broken by the fire, the agent will discharge.



3/Little occupation of space. This system is suitable for protecting a system, like telecommunication system, rather than a protected zone. The cylinder fixes on the outer cabinet, and will not occupy many places.
