Highlight:
Storage Medium: |
Novec 1230, FK-5-1-12, C6F12O |
Transport Package: |
Plywood Outer Box With Bubble Bag Or Paper |
Mini Order: |
1 Set |
Model: |
QMP40/4.2, QMP70/4.2, QMP100/4.2, ...... |
Product Name: |
Novec 1230 |
Material: |
Steel |
Safety: |
High |
Discharge Time: |
≤10s |
Filling Density: |
≤950kg/m3,≤1080kg/m3 |
Nitrogen Pressure Of Driving De Vice: |
6.0±1.0Mpa(20℃) |
Condition Of Reserving Room For Container: |
Temperature: -10~50℃, Relative Humidity: ≤97% |
Max Working Pressure: |
5.3Mpa/8.0Mpa |
Min Working Pressure: |
4.2Mpa/4.6Mpa |

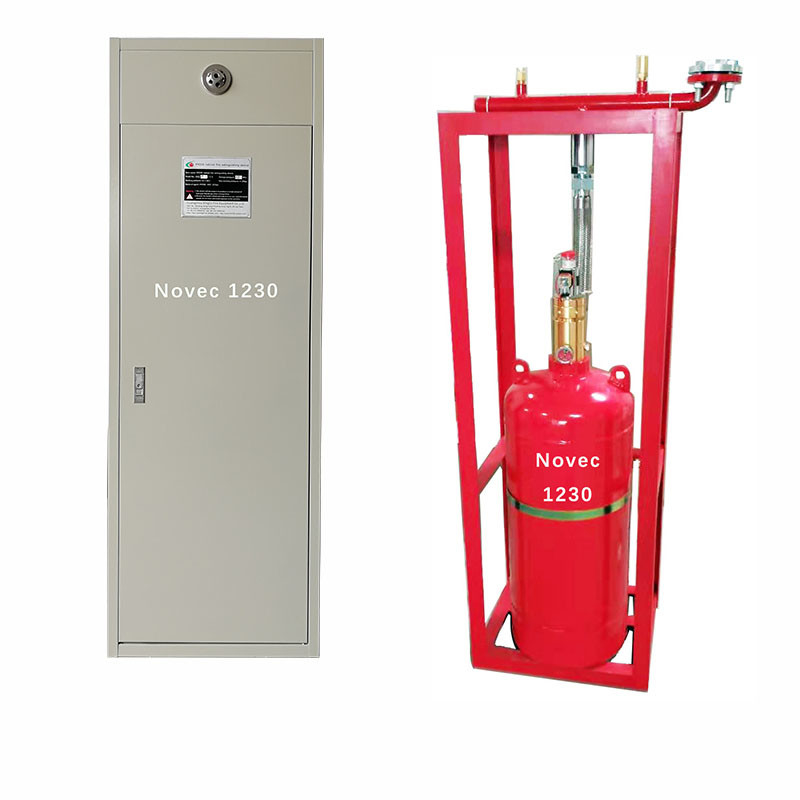

Pipe Network Type Of Novec1230 Automatic Fire Suppression System
Description:
Novec1230 fluid offers a unique combination of safety, low environmental impact and extinguishing performance, making it the only chemical halon replacement to offer a viable, long-term, environmentally sustainable technology for special hazards fire protection.
Compositions:
Pipe network type of Novec1230 automatic fire suppression system is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.
Extinguishing devices are such things, like cylinder to fill and store Novec1230, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, an echoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying
equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.
Competitive Advantage:
In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.
Another one is that Novec1230 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.
It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.
It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.
Parameter:
| specification |
Technical Parameter |
| Filling pressure |
4.2Mpa |
5.6Mpa |
| Scale of Protective region for one zone |
area:max single-zone is 800m² volume: max single-zone is 3600m³ |
| Spraying time |
≤10s |
| Filling density |
≤950kg/m3 |
≤1080kg/m3 |
| power |
DC24V/1.6A |
|
Nitrogen Pressure of Driving De
vice
|
6.0±1.0Mpa(20℃) |
|
Condition of reserving room for
container
|
temperature: -10~50℃, relative humidity: ≤97% |
| max working pressure |
5.3Mpa |
8.0Mpa |
| min working pressure |
4.2Mpa |
4.6Mpa |
Packaging and Shipping:
Packaging: The NOVEC 1230 Fire Suppression System is packaged in a sturdy cardboard box to ensure safe transportation and storage. The box is labeled with the product name, specifications, and safety instructions.
Shipping: The product is shipped via air or sea freight, depending on the customer's preference. It is packed in a wooden crate for added protection during transportation. The crate is labeled with the product name, specifications, and handling instructions.
Purchasing Notice
1. If you know little about the volume or area of your warehouse, factory or workshop, such as length, width, height, please be sure to contact us in time. In this way, our engineers can design the specifications and quantity of the product according to your needs.
2. If the required specification parameters are not available in the parameter table, please let us know your requirements and we will provide you with a satisfactory design solution.
3. If you have confirmed our products, please place an order and pay. After that, we will arrange shipment as soon as possible.
4. If there are any transportation difficulties, please contact us immediately, and we will provide you with a satisfactory solution to save freight as much as possible.
