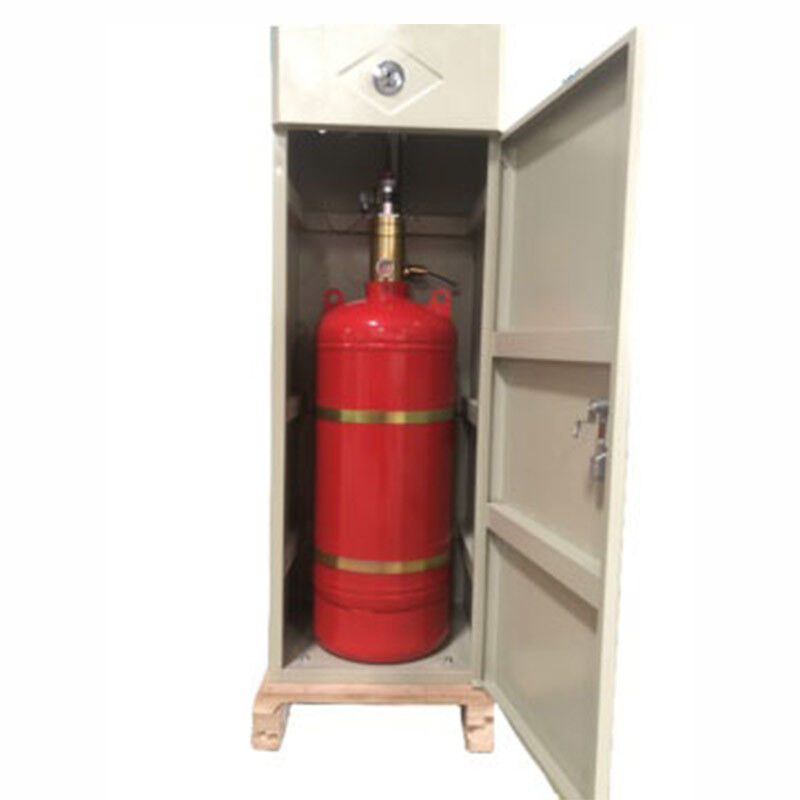

Cabinet FM200 Fire Extinguishing System for Solo Zone Enclosed Flooding with 4.2Mpa Max Working Pressure

The Cabinet FM200 Fire Extinguishing System is a low-maintenance, high-safety solution equipped with advanced features. It is designed for solo-zone suppression applications, delivering reliable fire protection with minimal operational oversight.

FM200 (HFC-227ea) is a colorless, tasteless, non-corrosive, and electrically insulating gas that leaves no residue or pollution after extinguishing. Its Ozone Depletion Potential (ODP) is zero, making it an environmentally friendly extinguishing agent. These properties also make it suitable for special locations where electrical fires are likely to occur.

Combined with the extinguishing device and electronic accessories, the entire system can be actuated automatically. It monitors the protected area through detectors and can activate the extinguishing device via a solenoid actuator without manual intervention. This achieves full automation, eliminating the risk of an unnoticed fire and reducing the cost of personnel required to supervise the protected area.

The system is suitable for a wide range of sensitive and high-risk environments, including:

• Electronic computer rooms and data processing centers
• Telecommunications facilities and process control rooms
• Expensive medical equipment and industrial equipment areas
• Libraries, museums, and art galleries
• Clean rooms and anechoic chambers
• Emergency power facilities and flammable liquid storage areas

It is also ideal for locations where fires are prone to occur, such as paint-spraying production lines, aging electrical equipment, rolling machines, printing machines, oil switches, oil-immersed transformers, melt impregnating tanks, large generators, drying equipment, cement production processes involving pulverized coal, as well as ship engine rooms and cargo holds.

The Cabinet FM200 Suppression System for solo zones is primarily composed of two parts: extinguishing devices and electrical accessories.

These include the cabinet that houses the extinguishing device, the cylinder that fills and stores FM200, the flexible hose, the solenoid actuator, and related components.

These are used to detect and monitor the entire protected area, control the full system, warn occupants to evacuate, and prevent fire expansion.

Tog, these integrated parts efficiently detect, supervise, alarm, and extinguish fires automatically.
