Enclosed Flooding FM200 Fire Suppression System with Automatic or Manual Actuation and 150L Cylinder Capacity

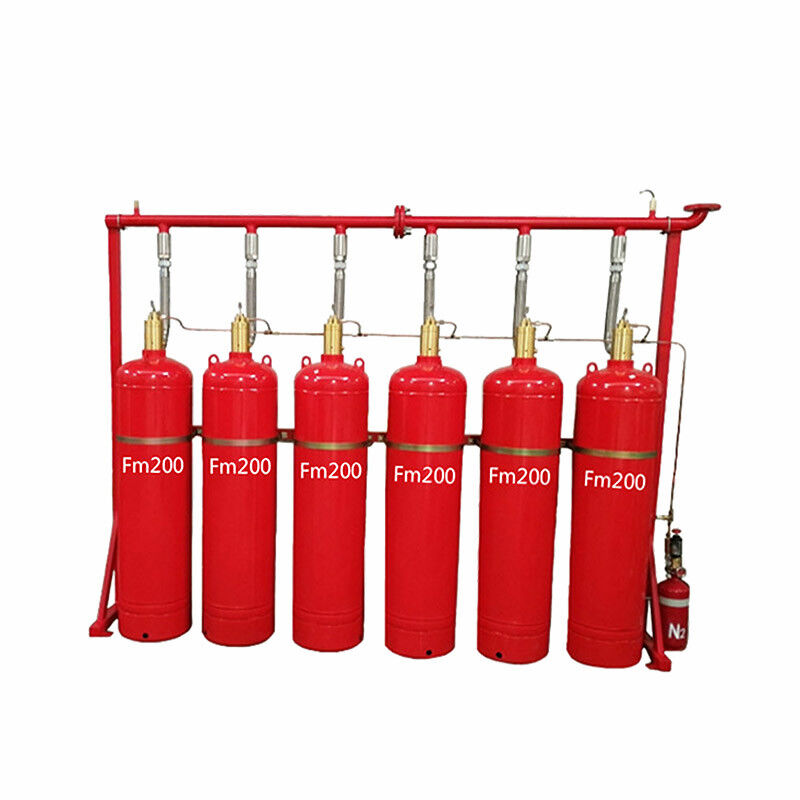

The 120L Automatic FM200 Fire Suppression System is offered factory-direct with quality assurance and the best price. This 4.2 MPa FM200 system is also available in a 150L model.

FM200 (HFC-227ea) is a colorless, tasteless, non-corrosive, and electrically insulating gas that leaves no residue or pollution after extinguishing. Its ODP is zero, making it an environmentally friendly extinguishing agent. Because of these properties, it is suitable for special locations where electrical fires are likely to occur.

Combined with the extinguishing device and electronic accessories, the entire system can be actuated automatically. It monitors the protective region through detectors and can start the extinguishing device via a solenoid actuator automatically, achieving full automation. This eliminates the risk of a fire going unnoticed when no one is present and saves the cost of employing personnel to supervise the protected area.

Management of multiple zones is also under the safe control of the whole system. One system can protect multiple zones through selective valves, allowing the system to target different protective zones alternately. Agent can be discharged into the zone where the fire occurs, efficiently putting out the fire in a short time. Note that a small room should be prepared as storage space for the entire system.

Suitable for locations where fires are likely to occur, including:

• Paint-spraying production lines
• Aging electrical equipment
• Rolling machines
• Printing machines
• Oil switches
• Oil-immersed transformers
• Melt impregnating tanks
• Tanks
• Large generators
• Drying equipment
• Cement production processes involving pulverized coal
• Ship engine rooms and cargo holds

Cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high-pressure hose, etc. These are mainly used for storing the FM200 agent.

Smoke detector, heat detector, bell, etc.

Conduit, connector, elbow, flange, etc.

The complete composition of the whole system is shown below:

Guangzhou Xingjin Fire Equipment Co., Ltd. is located in Guangzhou, surrounded by convenient transportation and a beautiful environment. Guangzhou plays an important role in communication between China and the world. As a manufacturer, we devote ourselves to the study and development of HFC-227ea (FM200) products with a professional and mature team that includes a program design team, a skillful installation team, a quality detecting team, and an after-sales service team.

Our popular FM200 products are widely used, including the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher (ceiling-mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube. As a result of high-quality products and services as well as our good reputation, our company is well-received by customers in China.

• 5-year quality guarantee
• Xingjin operates under a high-efficiency management system
• Advanced equipment and professional engineers ensure all products are highly satisfactory
• 8×6 hours of technical support and service

• An efficient sales and after-sales team to resolve all client questions in a timely manner
• 8×6 hours of technical support and service
