2.5Mpa 180L Hfc-227ea Fm200 Cabinet Fire Extinguishing System With High Quality

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L

Payment & Shipping Terms

Minimum Order Quantity: 1set system

Price: negotiation

Packaging Details: Plywood case,Paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card

Supply Ability: 3,00 set per month

Get Best Price
Product Details
High Light:

FM200 Fire Suppression Cabinet System

,

10s Fire Suppression Cabinet System

Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Product Description

 Nontoxic And Odorless FM200 Heptafluoropropane Fire Suppression System Cabinet Type





Description:



    1. Totally automatic system

    2. Accurate control and monitoring of protection zone

    3. No need for employment of monitor staff

    4. Manual or electromagnetic manipulation and mechanical manipulation

    5. Preparation for storage room

    6. Space confirmation of placement for cylinder group





Compositions:

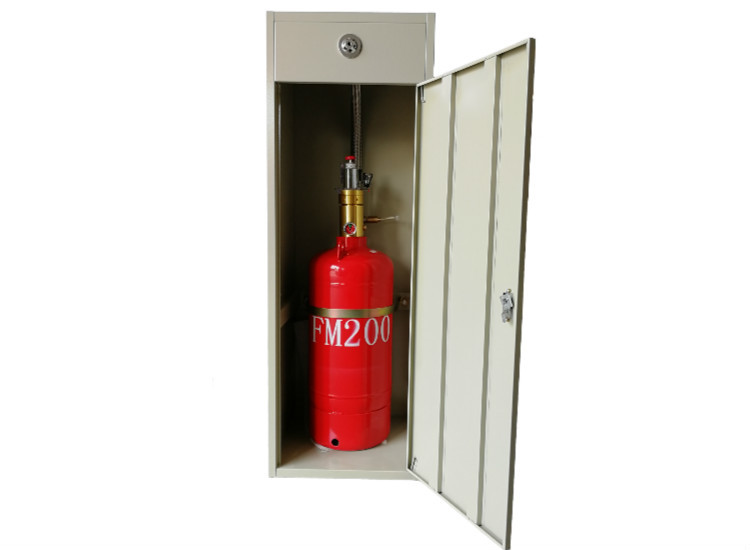

  Actually, a complete one set system contains two parts: the extinguishing device(the whole composition is like the photo beside) and electrical elements.



  One set cabinet type fm200 fire suppression device is formed by the following components: fm200 agents, a fm200 cylinder, a hoop, a cabinet, a container valve, a solenoid actuator, a flexible hose(high pressure hose), nozzle(s) and pressure switch.



                              2.5Mpa 180L Hfc-227ea Fm200 Cabinet Fire Extinguishing System With High Quality 0





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, and the ship's engine room, cargo hold, etc.





Parameter:



NO. Specifications Parameters
1. Cylinder capacity 40l,70l,90l,100l,120l,150l,180l
2. Filling pressure 2.5Mpa
3. Filling density 950kg/m³
4. Discharge time ≤10s
5. Working temperature 0℃~50℃
6. Max working pressure 4.2Mpa
7. Discharge pressure 5.6±0.28Mpa
8. Proportion of protected zone ≤500m²
9. Volume of protected zone ≤1600m³
10. Actuation Automatic or manual start




Competitive Advantage:



   Cabinet fm200 fire suppression system has a large number of advantages, and here is going to have a brief explanation:



1/ Swift response. Since there is no long distance transportation of pipes, so fm200 gas can be directly discharged into protection zone. Meanwhile, its spraying time is less than 8 second. So it will save more time relatively when the fire happens.



2/ Convenient installation. Compared with pipe network system, cabinet system would be relatively simple to conduct installation. After installation of control panels and electric components, left work is just to connect it with one cabinet fire extinguishing device or devices. But one room should not be matched with more than 4 pieces of it because of the limitation of the output current of a control panel.



3/ Lower cost. Obviously, the price would be cheaper than pipe network type for the protection zone which just needs one single cylinder, because there is no need to consider about the expense of pipes and pipe fittings, also the cost of manpower for this part.
