Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set system |
| Price: | negotiable |
| Packaging Details: | Plywood case,Paper carton |
| Delivery Time: | 10-15 working days after payment or receipt of L/C |
| Payment Terms: | L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card |
| Supply Ability: | 3,00 set per month |
|
Detail Information |
|||
| Spraying Time: | ≤10s | Actuation: | Automatic Or Manual |
|---|---|---|---|
| Pattern Of Extinguishing: | Enclosed Flooding | Printed Color: | Silver(cabinet), Red(cylinder) |
| Relief Pressure: | 5.0±0.225Mpa | Structure: | No Pipeline |
| High Light: | gas fire suppression system,gas fm 200 |
||
Product Description
Pure hfc-227ea agent fm200 fire suppression system for single occupied zone
Description
Hfc-227ea is not only a kind of chemical element used in medicine for curing asthma but also used in fire suppression system as an agent. Because of its clean and environmentally friendly characteristic, hfc-227ea is widely recognized as the proper substitute to the halon series.
When using this type of fm200 fire suppression system, buyers also need to have some pipes, because this system needs a separated small room to storage itself and some pipes to transport fire agent.
Application
As this system’s nature, it can be used in a lot of places and fits for many kinds of fire. The following kinds of places are just list for reference.
Telecommunication rooms
Data and paper archives
Switch gear rooms
Computer rooms
Military applications and cell sites
High-tech medical
Robotic equipment
Telecommunication centers
Textile manufacturing
Records and data archives
Parameter
| NO. | Specifications | Parameters |
| 1. | Cylinder capacity | 40l,70l,90l,100l,120l,150l,180l |
| 2. | Filling pressure | 2.5Mpa |
| 3. | Filling density | 950kg/m³ |
| 4. | Discharge time | ≤10s |
| 5. | Working temperature | 0℃~50℃ |
| 6. | Max working pressure | 4.2Mpa |
| 7. | Discharge pressure | 5.6±0.28Mpa |
| 8. | Proportion of protected zone | ≤500m² |
| 9. | Volume of protected zone | ≤1600m³ |
Advantages

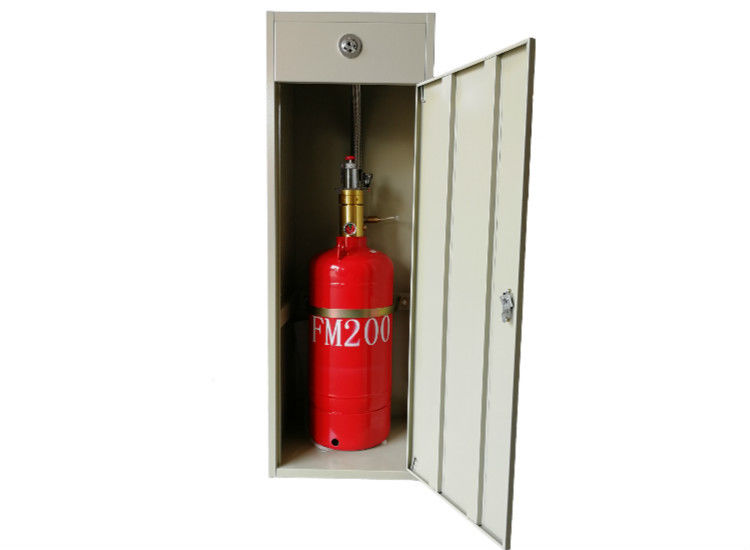

This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type fm200 fire suppression system. Besides, here is going to list out the advantages of this system.
1/ Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.
2/ Easy installation. A few components and an easy structure make the system install easily.
3/ Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.
Component
Actually, a complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on eletrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:
1/ Fm200 cylinder
2/ Container valve
3/ Solenoid actuator
4/ Flexible hose
5/ Liquid flow check valve
6/ Cylinder frame
7/ Manifold
8/ Safety valve
9/ Pressure switch
Working procedure
The procedure is a little bit complicated, so let us show you the proper right process.
A fire happens → the smoke detector and heat detector send signal back to the control panel → the control panel activates the alarm bell to inform people of escaping the building → after a few seconds( customized), activates the fire suppression system to put out the fire.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
Part Cases Show
• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School, Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City, Tobacco Building, etc.
• In Guangdong province, the project cases are GAC Group, 10086 in Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air Controller, Yingfu Building in Shenzhen, Bank of Communication in Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV Station, etc.
• In Shandong province, the project cases are Lushang Office Building, Lushang Marketing Center, etc.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
