FM200 Automatic Fire Suppression Tube For Enclosed Spaces With Hfc-227ea Agent

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N

Payment & Shipping Terms

Minimum Order Quantity: 100 sets

Price: negotiation

Packaging Details: Plywood case, carton or as requirement

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 300 sets per week

Get Best Price
Product Details
High Light:

fm 200 system

,

fm200 suppression system

Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea, Novec 1230
Color:
White
Length:
2000mm, 3000mm, 4000mm, 5000mm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Capacity Of Agent:
0.5 M³, 0.75 M³, 1 M³, 1.25 M³
Blasting Temperature:
110℃±10℃
Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea, Novec 1230
Color:
White
Length:
2000mm, 3000mm, 4000mm, 5000mm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Capacity Of Agent:
0.5 M³, 0.75 M³, 1 M³, 1.25 M³
Blasting Temperature:
110℃±10℃
Product Description

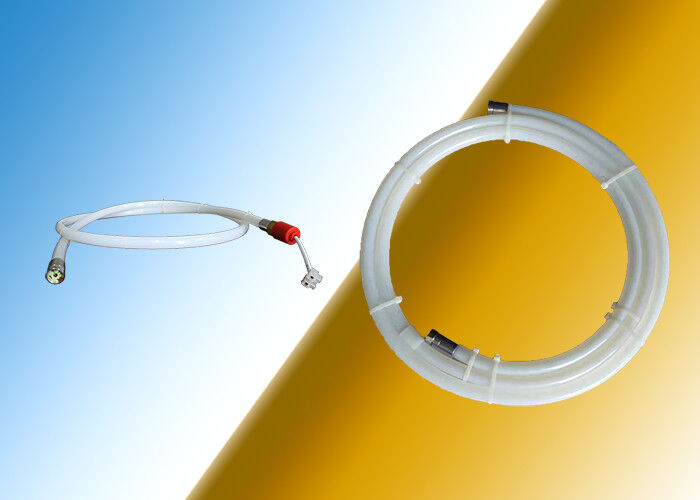

CCC FM200 Tube Fire Supprssion System







Description:



The FM200 automatic fire suppression tube(AFST) is a new and innovative fire suppression device for enclosed spaces.

Nothing to pull or handle to squeeze to start suppression - AFST operates automatically.

The AFST fire extinguishing device is designed to protect small enclosed spaces or engine compartments that are at risk of fire. The AFST will operate automatically when the fire detection tube is exposed to direct flame impingement or the temperature melting point of AFST tubing.

The fire suppression agent is stored in the AFST Tubing and when activated applies the extinguishing agent directly on the fire point of origin and around the enclosed compartment through the tube at its melted point.

The FM200 Automatic Fire Extinguisher Tube is a type of fire suppression system that uses flexible polymer tubing filled with pressurized FM200 gas agent to detect and suppress fires. The tubing is designed to burst open upon exposure to high temperatures, releasing the FM200 gas agent and extinguishing the fire.

The FM200 Automatic Fire Extinguisher Tube system is a cost-effective and efficient way to protect enclosed spaces, such as electrical cabinets and server rooms, from potential fires. The tubing is lightweight and flexible, making it easy to install in tight spaces or around complex equipment. The system is automatic and requires no external power source to be activated.

When a fire occurs, the FM200 Automatic Fire Extinguisher Tube system detects the high temperatures and the tubing bursts open, releasing the FM200 gas agent. The gas agent suppresses the fire by reducing the oxygen levels in the affected area. This effectively extinguishes the fire, prevents it from spreading, and minimizes damage to equipment and property.

FM200 gas agent is non-toxic, non-conductive, and environmentally friendly, making it a suitable option for use in areas where traditional fire protection methods may be detrimental to equipment or property. Furthermore, the FM200 Automatic Fire Extinguisher Tube does not leave any residue behind after discharge.

The FM200 Automatic Fire Extinguisher Tube system is very cost-effective and requires minimal maintenance. It is a suitable alternative to traditional water-based fire suppression systems for enclosed spaces, and it can be easily integrated with existing fire alarm and detection systems for maximum protection.



Guangzhou Manufacturer FM200 Automatic Fire Extinguisher Tube



FM200 Automatic Fire Suppression Tube For Enclosed Spaces With Hfc-227ea Agent 0








Technical Specification:



Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage (cubic meter)

Working temperature(℃) Blasting temperature(℃)
XJ200H/N Hfc-227ea/
Novec 1230
500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±5 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10



FM200 Automatic Fire Suppression Tube For Enclosed Spaces With Hfc-227ea Agent 1



Application:

Based on the volume of protected enclosure, the tubes are suitable for the ranges but even more than those:

Engine compartments of boats;

Engine compartments of on-road vehicles: car, SUV, van, recreational vehicle, mini bus, etc.

Engine compartments of off-road vehicles: ATV, small tractor, forklift truck, small construction machine, golf cart, grass cutting machine, etc.

Electrical switchboard, fuse box, rack, electrical cabinet, etc.
