90L FM200 Fire Suppression System Professional Manufacturers Direct Sales Quality Assurance price concessions

Product Details

Place of Origin: Guangdong

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMQ5.6/90W-XJ

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 20000 sets per month

Get Best Price
Product Details
High Light:

90L FM200 Fire Suppression System

,

50℃ FM200 Fire Suppression System

Filling Pressure:
5.6 Mpa
Discharge Time:
≤10s
Filling Density:
≤1250kg/m³
Drive Device Pressure:
6.0Mpa(20℃)
Pressure Of Adding Pressure Cylinder:
13.5Mpa
Ambient Temperature:
0~50℃
Cylinder Volume:
90Ltr
Power:
DC24V/1A
Filling Pressure:
5.6 Mpa
Discharge Time:
≤10s
Filling Density:
≤1250kg/m³
Drive Device Pressure:
6.0Mpa(20℃)
Pressure Of Adding Pressure Cylinder:
13.5Mpa
Ambient Temperature:
0~50℃
Cylinder Volume:
90Ltr
Power:
DC24V/1A
Product Description

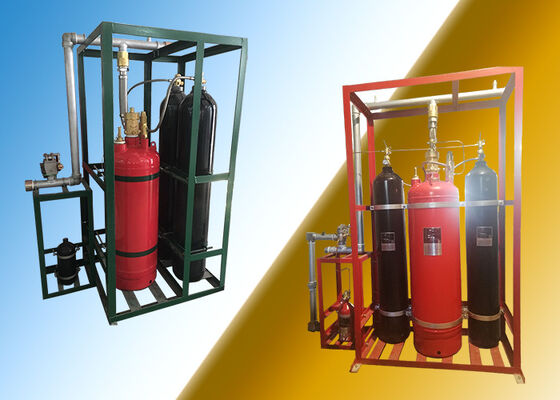

Piston Flow Type FM200 Fire Suppression System



Due to the distance between the location where the FM-200 container would be remotely stored and the hazard that needs to be safeguarded, the design of some systems using a typical stored pressure FM-200 system could be quite difficult. The quantity of nitrogen pressure present in a typical FM-200 stored pressure container is typically the primary contributing factor to this issue. However, the FM-200 Piston Flow Clean Agent Fire Suppression System may discharge the FM-200 agent across extended distances within 10 seconds thanks to additional nitrogen from the support cylinder and the slowing down of pressure loss in the head space of the FM-200 container. Longer distances between the storage container room and the places that need fire protection are made possible by this innovative technology.

The system is designed to cover numerous and distant protected regions with total inundation. The highly flexible system can save equipment costs by installing a single system to help guard against different threats. It allows the construction of up to 122m (400ft) of piping for protected regions. The system is made to deliver a clean agent solution that is safe to use in populated spaces and is dependable, quick to act, and effective. The technology has no ozone depletion potential (ODP), making it environmentally beneficial.





                                     90L FM200 Fire Suppression System Professional Manufacturers Direct Sales Quality Assurance price concessions 0







No. Name Specification
1 Device Model QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
2 Cylinder Volume 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
3 Filling Capacity of Gas 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg
4 Max Working Pressure 8Mpa, 5.3Mpa
5 Max protected area Single zone: 800m2
6 Max protected volume Single zone: 3600m3
7 Spraying Time ≤10s
8 Agent Filling Density ≤1250kg/m3
9 Power DC24V/1A
10 Pressure of Adding Pressure Cylinder 13.5Mpa
11 Pressure of Driving Device 6.0Mpa(20℃)
12 Condition of Reserving Room for Container temperature: 0~50℃




System Composition



-----------------------------------------------------------------------------------



The main components of this system are the agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relieving device, level gauge, relief valve, and pipe system, which can be used to create a unit independent system. Fire protection for both single and multiple zones can be implemented using combined distribution systems and other formats.





Pipe fittings, such as high pressure galvanized steel pipe and flange and elbow, are those conduits to link extinguishing device and guide agent into protective zone.

Electrical accessories are those items that are used to operate the entire system, detect and monitor the entire protective area, alert people to evacuate, and stop the spread of fire.



These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



                            90L FM200 Fire Suppression System Professional Manufacturers Direct Sales Quality Assurance price concessions 1





Competitive Advantage:



Designed to discharge the FM-200 agent within 10 seconds over long distances

Colourless, odourless, non-contaminating gaseous fire protection

Designed to help protect critical assets and processes

Safe to use in occupied areas

FM-200 has been tried and tested through thousands of installations around the world

Proven technical service support





Application:



It is frequently used for class A, B, C fires and electrical equipment fires in computer rooms, power distribution rooms, telecommunications centers, libraries, archives, treasure chests, and underground engineering. However, it does not apply to fire areas that include active metal chloride, digestive fiber, potassium, sodium, magnesium, or uranium.



Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                90L FM200 Fire Suppression System Professional Manufacturers Direct Sales Quality Assurance price concessions 2



Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher

(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.

90L FM200 Fire Suppression System Professional Manufacturers Direct Sales Quality Assurance price concessions 3



Why Choose Us

-----------------------------------------------------------------------------------

• 5 years quality guarantee



• Xingjin is running in a high efficiency management system



• Advanced equipments & professional engineers to promise all products are quite Satisfactory.



• We provide 8×6 hrs technical support and service.







After-Sale Service

-----------------------------------------------------------------------------------

• We have an efficient sales and after sales team to promise slove all client's question in time.



• We provide 8×6 hrs technical support and service.







FAQ

-----------------------------------------------------------------------------------

• Q: Are you a manufacturer or a trading company?



A: We are a manufacturer.



• Q: Is the OEM order available?



A: Yes, produce in accordance with per client's requirement.



• Q: Where is your factory located?how can i visit there?



A: Our factory is located in Guangzhou, Guangdong province, China.



Very welcome you to come our factory.
