Guangzhou Xingjin Fire Equipment Co.,Ltd.

CMA 2000mm Novec1230 Automatic Fire Suppression Tube Factory direct quality assurance best price

Product Details:
Place of Origin: China
Brand Name: Xingjin
Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE
Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: Plywood case, carton or as requirement
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Type: Automatic Fire Suppression Tube Agent: FM200 / Novec1230
Color: White Length: 2000mm, 3000mm, 4000mm, 5000mm
Diameter Of The Tube: 18mm Coverage: 0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent: 500g±5g; 750g±5g; 1000g±10g; 1250g±10g Blasting Temperature: 110℃±10℃
High Light:

2000mm Automatic Fire Suppression Tube


CMA Automatic Fire Suppression Tube

Product Description

CMA 2000mm Novec1230 Automatic Fire Suppression Tube


Novec1230 Automatic Fire Suppression Tube

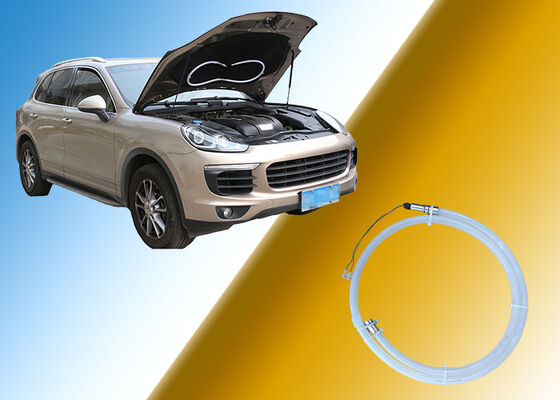

Automatic fire suppression tube can be applied to protect relatively enclosed areas effectively. When the fire temperature is higher than its tolerance, it can be started without electrical automatically. Not only its operation is very easy, but also its installation and maintenance are very simple. It is special for Vehicle Engine Room and Electrical Equipment.

An automatic fire suppression tube is a type of fire extinguishing system that uses a specialized tube filled with a fire extinguishing agent to suppress fires. The tube is made of a polymer material that can rupture at a specific temperature to release the extinguishing agent.

When heated by a fire, the tube ruptures and releases the agent, which works by interrupting the chemical reaction at the core of the fire. The agent either cools the burning material or interrupts the chemical reaction that causes the fire, smothering it and extinguishing the flames.

The suppression tube is typically lightweight, compact, and easy to install, making it suitable for a wide range of fire protection applications. It is commonly used in small enclosures, server rooms, electrical cabinets, and other areas where traditional fire suppression systems may not be practical.

Automatic fire suppression tubes are effective, reliable, and cost-effective. They require minimal maintenance and do not require external power to operate, making them an ideal choice for areas where power sources are limited.


Technical Specification:


Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage (cubic meter)

Working temperature(℃) Blasting temperature(℃)
XJ200H/N Hfc-227ea/
Novec 1230
500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±5 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10


CMA 2000mm Novec1230 Automatic Fire Suppression Tube Factory direct quality assurance best price 0




Automatic fire suppression tube (tube fire suppression systems) can be used to protect enclosed engine areas, such as cars, sever rooms, light boxes. switchboards is also used in power plants, substations, gas industry, banks, private households, industrial complexes and everywhere where there is a risk of fire.


CMA 2000mm Novec1230 Automatic Fire Suppression Tube Factory direct quality assurance best price 1


Company Introduction


Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher

(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.

CMA 2000mm Novec1230 Automatic Fire Suppression Tube Factory direct quality assurance best price 2




• Q: Are you a manufacturer or a trading company?


A: We are a manufacturer.




• Q: Is the OEM order available?


A: Yes, produce in accordance with per client's requirement.




• Q: Where is your factory located? Can I visit there?


A: Our factory is located in Guangzhou, Guangdong province, China.

     Yes, we always welcome and wait for your visit.
