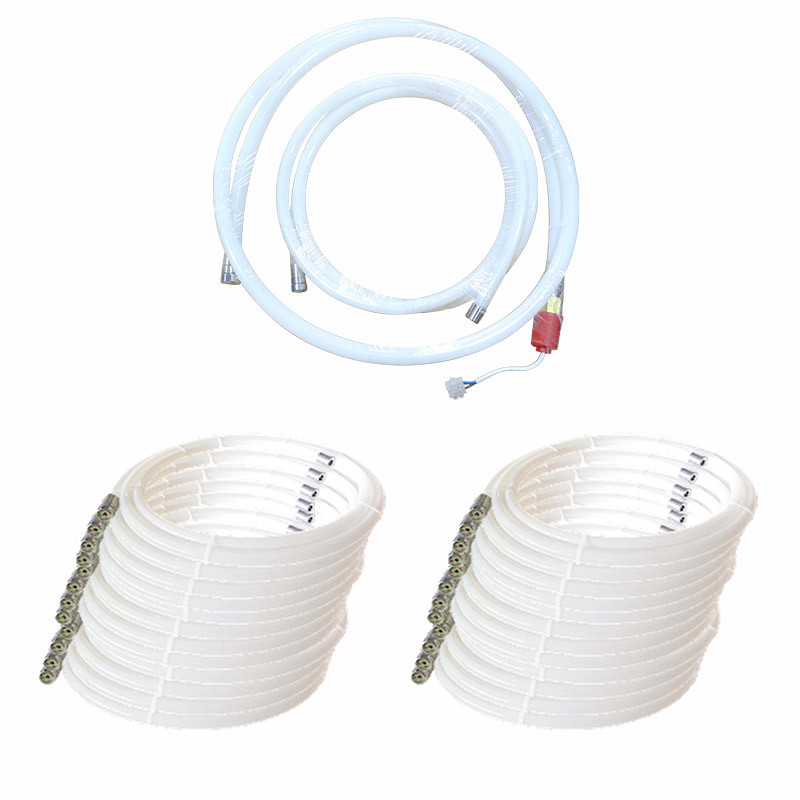

White FM200 Automatic Fire Suppression Tube Factory Direct Quality Assurance Best Price

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE

Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N

Payment & Shipping Terms

Minimum Order Quantity: 100 sets

Price: negotiation

Packaging Details: Plywood case, carton or as requirement

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 30000 sets per month

Get Best Price
Product Details
High Light:

Hfc227ea Fire Suppression Tube

,

18mm Fire Suppression Tube

Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea / Novec1230
Color:
White
Length:
200cm, 300cm, 400cm, 500cm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent:
500g±5g; 750g±5g; 1000g±10g; 1250g±10g
Blasting Temperature:
110℃±10℃
Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea / Novec1230
Color:
White
Length:
200cm, 300cm, 400cm, 500cm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent:
500g±5g; 750g±5g; 1000g±10g; 1250g±10g
Blasting Temperature:
110℃±10℃
Product Description

Automatic fire suppression tube for car engine





Description:

Designed to automatically suppress fires in small enclosed areas. During a fire, the heat degrades will continue to rise and it will melt the storage tube which contains the extinguishing agent under pressure. The sensitive tube is made of special plastic with stainless fittings on either end. When meet the fire, the tube will be melted, then it will form a hole as a “nozzle”, allowing the extinguishing agent to put out the fire. The storage tube is filled with FM200/HFC-227ea or Novec1230 as extinguishing agent, both of them are extremely effective, clean and people-safe extinguishing medium. It is suitable for class A, B, C, D and E of fires. Ideal for electric cupboards, data cupboards, switchboards, etc. It can be installed by anyone and thus no training is required for installation. The extinguishing agent discharges as a liquid, disperses in the form of a gas and leaves no residue after extinguishing. There are no clean-up costs. The agent does not conduct electricity, corrode or cause thermal shock damage.An automatic fire suppression tube is a type of fire suppression system that uses a tube made of a special polymer material filled with a fire extinguishing agent to quickly and effectively extinguish fires. The tube is installed in areas where fires are most likely to occur, such as inside electrical panels or near cooking equipment in kitchens.


When a fire starts, the heat from the flames causes the polymer tube to rupture at the point nearest to the source of the fire. This releases the fire extinguishing agent, which is then expelled from the tube, smothering the flames and extinguishing the fire.

Automatic fire suppression tubes are easy to install and require minimal maintenance. They are also cost-effective and do not require any external power sources or complicated electronic systems to operate. As a result, they are commonly used in a variety of settings, including commercial kitchens, server rooms, and manufacturing facilities.



Automatic fire suppression tube for car engine



White FM200 Automatic Fire Suppression Tube Factory Direct Quality Assurance Best Price 0










Technical Specification:



Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage (cubic meter)

Working temperature(℃) Blasting temperature(℃)
XJ200H/N Hfc-227ea/
Novec 1230
500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±5 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10



White FM200 Automatic Fire Suppression Tube Factory Direct Quality Assurance Best Price 1



Application:

The Tube Type Automatic Fire Systems are used to protect the relatively enclosed space, including but not limited to:



1) Engine Compartments of Boats and Yachts.



2) Engine Compartments of All On-Road Vehicles and Off-Road Vehicles: Car, Van, Bus, Mini Bus, Truck, Rally Car, Mining Machine or Construction Machine, etc.



3)Electric Panel, Switch Board, Sever Panel, .Control Box, etc.



Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


White FM200 Automatic Fire Suppression Tube Factory Direct Quality Assurance Best Price 2





FAQ



1)Where can you use this Tube Automatic Fire Suppression System?

Vehicle's engine room, electrical panel, server room, electrical control cabinet, etc.



2)Are your company a manufacturer or trading company?

---We are a professional Manufacturer of automatic fire suppression systems and fire extinguishers. We have our own factory to produce the fire fighting equipments.



3)Can you print our logo on products?

---Yes, no problem.We also support OEM.



4)How long does it take to finish the goods?

--- Depend on order quantity, it will take about in 10-15 working days.



5)What's your MOQ?

---Our MOQ is 100 pcs.
