High Quality FM200 Piston Flow System Safe And Environmentally Friendly Fire Suppression

Product Details:
Place of Origin: Guangdong, China
Brand Name: Xingjin
Model Number: QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Filling Pressure: 5.6 MPa, 4.2 MPa Discharge Time: ≤10s
Filling Density: ≤1250kg/m³ Driving Device Pressure: 6.0MPa(20℃)
Pressure Of Adding Pressure Cylinder: 13.5MPa Ambient Temperature: 0~50℃
Cylinder Volume: 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr Power: DC24V/1A
High Light:

Piston Flow FM200 Gas Suppression System


CCC fm 200 fire system


Piston Flow fm 200 fire system

Product Description

Piston Flow Type FM200 Gas Suppression System


The use of FM200 fire extinguishing agent as a fire suppressant is not prohibited by the montreal protocol. It is a clean agent that belongs to a class of compounds that was introduced specifically to facilitate the phase-out of ozone depleting gases, such as Halon 1301. It is the most widely used of the chemical replacements for Halon 1301. It is an agent that has been used successfully to help protect tens of thousands of high technology facilities in 70 countries around the world.


Piston Flow Type FM200 Gas Suppression System is a type of fire suppression system that uses a piston mechanism to discharge the FM200 gas agent quickly and effectively. The system is designed to protect critical facilities, such as data centers, computer rooms, and other facilities containing valuable equipment.

The Piston Flow Type FM200 Gas Suppression System comprises a storage container that holds the pressurized FM200 gas agent, a set of distribution piping, and a specially designed discharge head. When the system is activated, the piston mechanism is triggered, creating a pressure shock wave that pushes the FM200 gas agent through the distribution piping and into the protected area.

The FM200 gas agent effectively suppresses the fire by reducing the oxygen levels in the affected area, effectively smothering the flames and preventing the fire from spreading. The system is designed to detect and suppress the fire quickly, minimizing damage to equipment and facilities and reducing downtime.

The Piston Flow Type FM200 Gas Suppression System is environmentally friendly and leaves no residue behind after discharge. The system is also cost-effective to maintain and easy to install, making it an ideal fire suppression solution for critical facilities.

The system can be integrated with other fire suppression and alarm systems, providing comprehensive protection for the protected area. The Piston Flow Type FM200 Gas Suppression System is particularly useful for areas with high ceilings or where discharge piping restrictions exist, such as in large data centers or industrial locations.


Xingjin FM200 gas piston flow type fire suppression systems can be ideal for use in occupied areas. Independent toxicity studies have established that the agent is low in both acute and chronic toxicity with high safety margins between its normal use concentrations and the no observable adverse effect level (NOAEL).



                                     High Quality FM200 Piston Flow System Safe And Environmentally Friendly Fire Suppression 0




No. Name Specification
1 Device Model QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
2 Cylinder Volume 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
3 Filling Capacity of Gas 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg
4 Max Working Pressure 8MPa, 5.3MPa
5 Max protected area Single zone: 800m2
6 Max protected volume Single zone: 3600m3
7 Spraying Time ≤10s
8 Agent Filling Density ≤1250kg/m3
9 Power DC24V/1A
10 Pressure of Adding Pressure Cylinder 13.5MPa
11 Pressure of Driving Device 6.0MPa(20℃)
12 Condition of Reserving Room for Container Temperature: 0~50℃

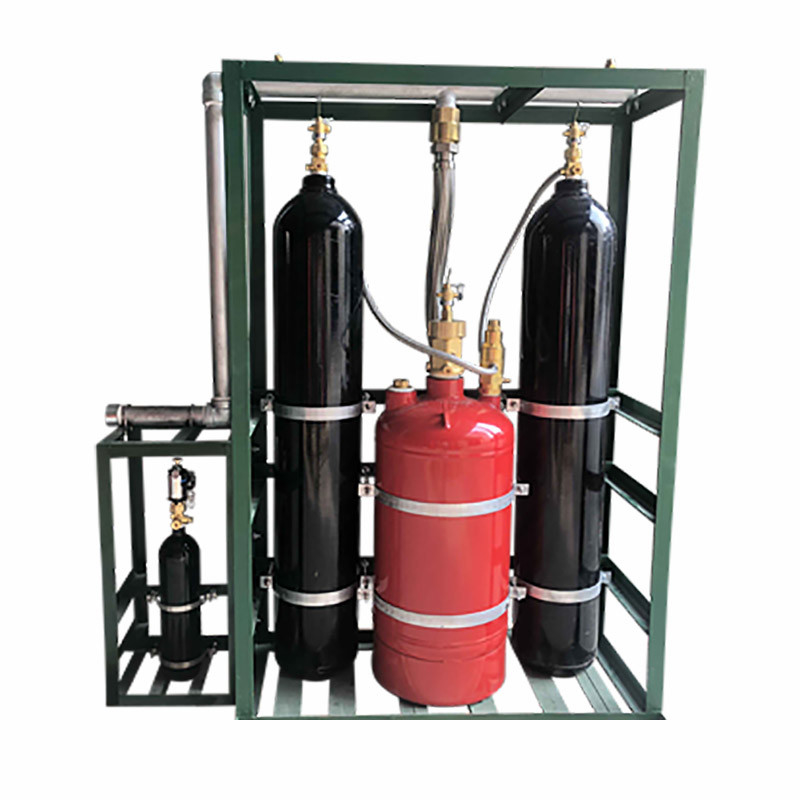

System Composition




This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.


Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.


These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.


                            High Quality FM200 Piston Flow System Safe And Environmentally Friendly Fire Suppression 1



Competitive Advantage:


Proven Technology

Clean, leaves behind no residue

Safe for discharge into occupied spaces

Cost effective engineered system, providing maximum protection

Sustainable technology providing an environmentally-conscientious solution





Data centres

Server rooms

Comms rooms

Electrical distribution rooms

Control rooms

Museums & archives


Anechoic chambers

Marine vessels

Medical records storage


Power generation & power storage



Paint storage

Battery rooms

Large manufacturing complexes

Multi level sites

Clean rooms





We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


                                High Quality FM200 Piston Flow System Safe And Environmentally Friendly Fire Suppression 2



Why Choose Us


• 5 years quality guarantee


• Xingjin is running in a high efficiency management system


• Advanced equipments & professional engineers to promise all products are quite Satisfactory.


• We provide 8×6 hrs technical support and service.




After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.


• We provide 8×6 hrs technical support and service.






• Q: Are you a manufacturer or a trading company?


A: We are a manufacturer.


• Q: Is the OEM order available?


A: Yes, produce in accordance with per client's requirement.


• Q: Where is your factory located?how can i visit there?


A: Our factory is located in Guangzhou, Guangdong province, China.


Very welcome you to come our factory.
