Non Corrosive FM200 Fire Suppression System Without Pollution For Storage Room

Product Details:
Place of Origin: China
Brand Name: Xingjin / OEM
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 40L, 70L, 90L, 100L, 120L, 150L, 180L Capacity Of Gas: 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing: Enclosed Flooding Agent: Hfc-227ea (FM200)
Working Pressure: 4.2MPa / 5.6MPa Color: Red
Discharge Time: ≤10s Power: DC24V/1.5A
Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual Product Name: Fm200 Fire Suppression System
High Light:

Non Corrosive FM200 Fire Suppression System

,

FM200 Fire Suppression System

,

HFC 227ea Fire Extinguishing System

Product Description

Non Corrosive FM200 Fire Suppression System Without Pollution for Storage Room

Description


Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system. The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.



This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.



Parameters



NO. Specifications 4.2Mpa system 5.6Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2Mpa 5.6Mpa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³

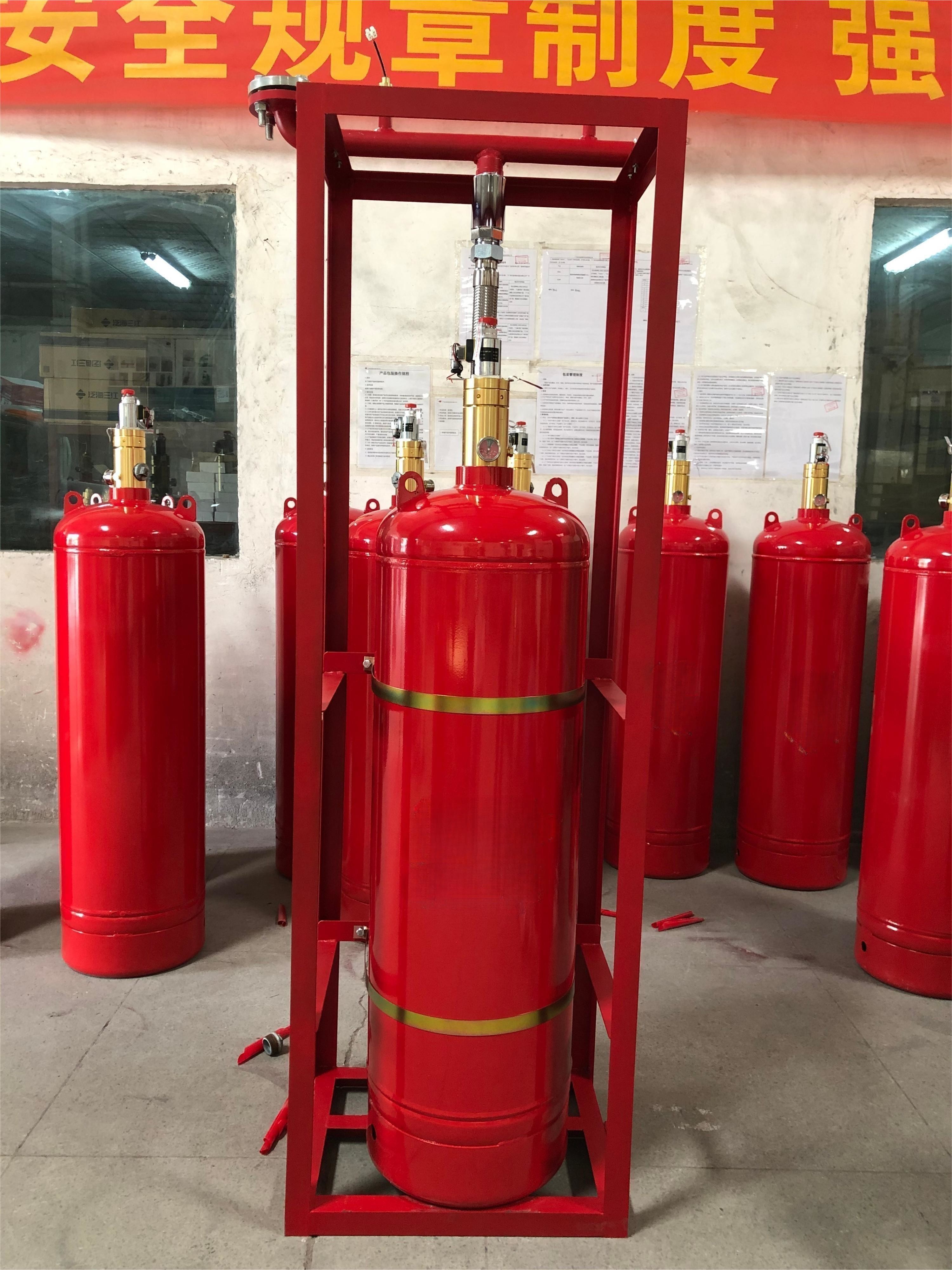

Non Corrosive FM200 Fire Suppression System  Without Pollution For Storage Room 0



Components



The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.



The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.





Non Corrosive FM200 Fire Suppression System  Without Pollution For Storage Room 1

Application


      The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:





     • Computer room, communication room, power distribution room, library, archives,

       Museum, etc.



    • Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas

       source before extinguishing occur, etc.







Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                                                                                      Non Corrosive FM200 Fire Suppression System  Without Pollution For Storage Room 2









After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
