Automatic FM200 Fire Suppression System Without Pollution Enclosed Flooding for Computer Room

The HFC-227ea (FM200) clean agent automatic fire suppression system is widely used in China and around the world. Its most notable advantage is that it meets global environmental protection requirements — it will not harm the ozone layer, even at a 1% probability. Additional strengths, such as the clean, odorless, and colorless agent and easy installation, make it the preferred substitute for Halon 1301.

The FM200 gas fire suppression system works more efficiently when equipped with electric elements. It requires only a small storage room outside but adjacent to the protected zone, helping to save space. The system also distinguishes itself with a fast discharge time of less than 10 seconds.

The pipe network model of the FM200 fire suppression system consists of three parts: the pipe network, the fire fighting equipment, and the electrical elements. The latter two parts are described below.

The electrical elements form a set of detecting devices and always play a subsidiary role in each system. They include several control panels, manual buttons, discharge indicator lights, alarm bells, sounders with light, smoke detectors, and heat detectors.

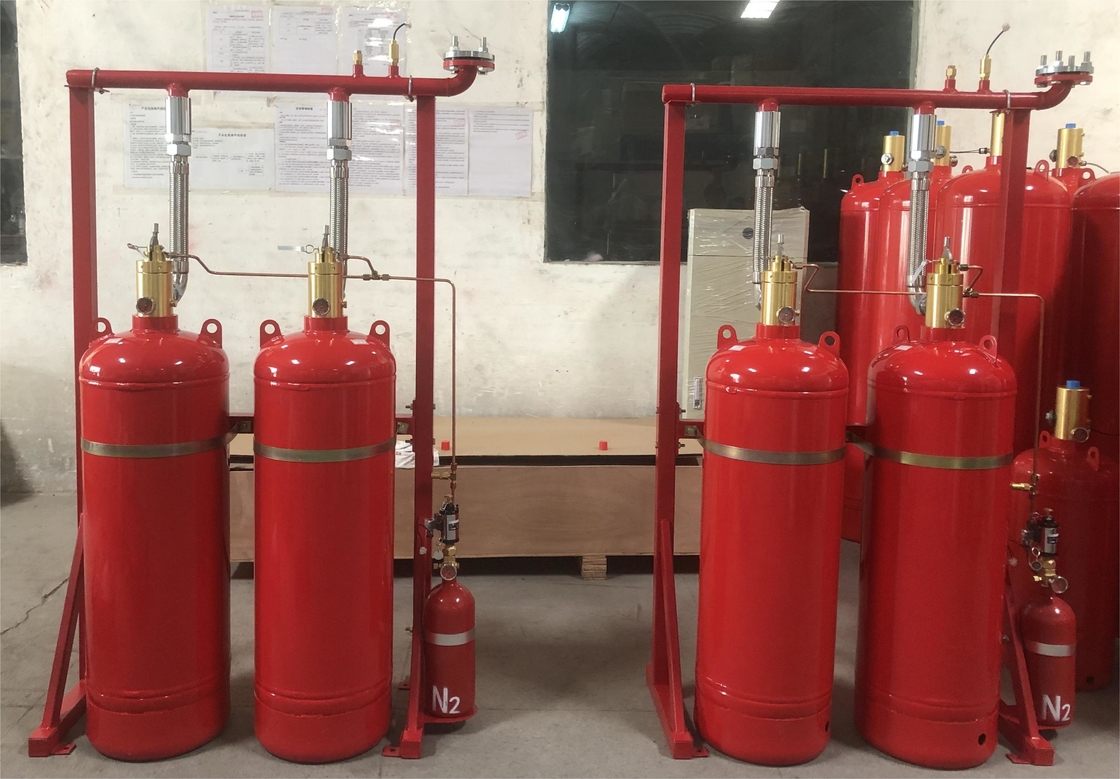

The main part of the system is the fire fighting equipment, which is formed by the following components:

• FM200 cylinders
• Cylinder frame
• Nitrogen-pressure driving devices
• Driving device frame
• Container valves
• Flexible hoses
• Liquid flow check valves
• Gas control pipes
• Gas flow check valves
• Manifolds
• Safety valves
• Selective valves
• Flanges
• Elbows
• Nozzles

The pipe network type FM200 fire suppression system is suitable for many locations and several kinds of fires. The following examples are provided for reference:

• Telecommunications and data processing facilities
• Switch gear rooms
• Applications and cell sites
• High-tech medical applications
• Computer rooms
• Telecommunication centers
• Records and data archives
• Testing and imaging equipment
• Reference material storage
• Chemical laboratories

Goods are always packed with polyfoam first and then placed into a wooden case. When required to meet customer or safety requirements, a pallet can also be made for the goods.

Guangzhou Xingjin Fire Equipment Co., Ltd. is located in Guangzhou, surrounded by convenient transportation and a beautiful environment, and plays an important role in communication between China and the world. As a manufacturer, the company is devoted to the study and development of HFC-227ea (FM200) products with a professional and mature team that includes a program design team, a skillful installation team, a quality detecting team, and an after-sales service team.

Today, popular FM200 products are widely used, including the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher (ceiling-mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube. As a result of high-quality products and services as well as a good reputation, the company is well received by customers in China.

• An efficient sales and after-sales team is available to resolve all client questions in a timely manner.
• 8 × 6 hours of technical support and service are provided.
