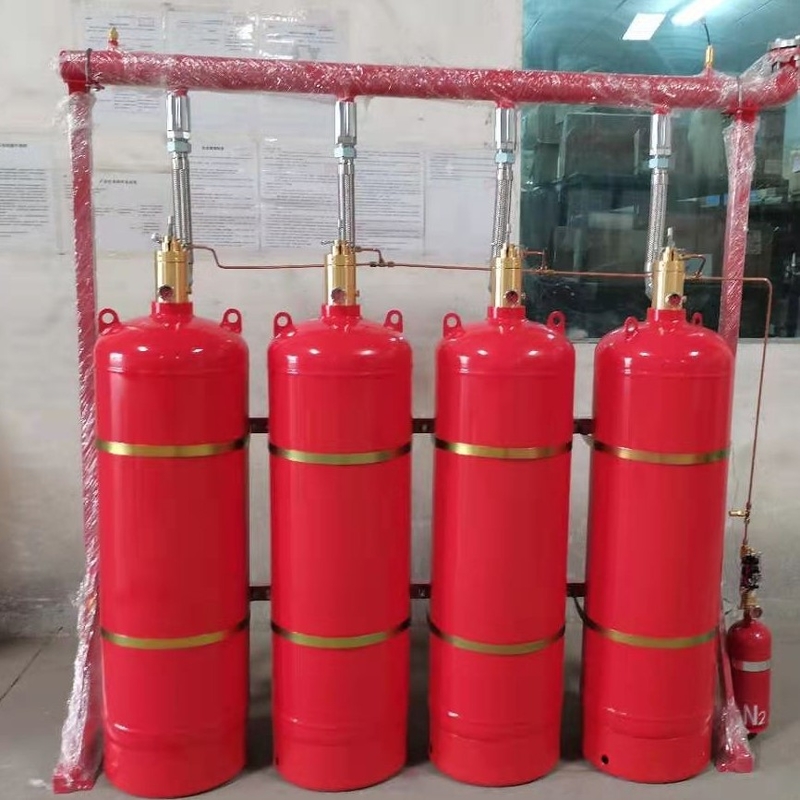

Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L

Product Details

Place of Origin: China

Brand Name: Xingjin / OEM

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

Red FM200 Fire Suppression System

,

40L M200 Fire Suppression System

Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.5A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.5A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Product Description

Red FM200 Fire Suppression System with 4.2Mpa System for Archive 40L

Description


1. The FM200 fire extinguishing system's key benefit is its adaptable use in protected spaces. A single cylinder device is used to focus either a tiny or extremely large protection zone.
2.FM200 is a non-toxic, colorless, odorless, and residue-free cleaning agent. It has been evaluated for safety, and it can also successfully safeguard both human safety and property.
3. The FM200 fire extinguishing system contains a two-minute delay mechanism that gives people adequate time to leave the area safely before all the chemicals are released in a 10-second burst.

4.Using FM200 has environmental benefits in addition to those related to fire protection. When compared to catastrophic fires, the FM200 fire extinguisher agent has the least negative effects on the environment because it doesn't consume stratospheric ozone. Over 100000 applications in more than 70 countries have used the FM200 fire extinguishing solution.



Parameters



NO. Specifications 4.2Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2
3 Filling pressure 4.2Mpa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³




Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 0





Components




1.FM200 storage container: This is a pressurized container that stores the FM200 gas. The container can be made of various materials, such as steel or composite materials, and is equipped with safety devices to prevent over-pressurization.

2.FM200 release valve: This valve releases the FM200 gas into the protected area when a fire is detected. The valve can be actuated manually or automatically through a fire detection system.

3.Distribution piping: This piping network distributes the FM200 gas from the storage container to the protected area. The piping is designed to provide even distribution of the gas to ensure effective suppression of the fire.

4.Nozzles: These are devices that distribute the FM200 gas into the protected area. The nozzle design is critical to ensure that the gas is distributed evenly and effectively to suppress the fire.

5.Fire detection system: This system is used to detect the presence of a fire in the protected area. The system can be designed to detect smoke, heat, or flame, and can be configured to activate the FM200 release valve automatically.

6.Control panel: The control panel is used to monitor the system and provide control over the release of the FM200 gas. The panel can also be used to test the system and perform maintenance tasks.





Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 1

Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 2

Application

As its name says, the single zone pipe network fm200 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network fm200 fire suppression system can be used to protect some large and also significant places, such as the followings:



-IT server rooms: These rooms contain critical computer servers and other electronic equipment, making them prime candidates for FM200 fire suppression systems. The clean agent gas is safe for electronic equipment and can suppress fires without causing damage.



-Telecommunication facilities: Telecommunications equipment is often housed in large facilities that require fire suppression systems. FM200 systems can protect against fires that could disrupt essential communications infrastructure.



-Museums and art galleries: These facilities often contain valuable and irreplaceable artifacts that must be protected. FM200 systems can suppress fires without causing water damage or other damage to the artifacts.



-Data centers: Data centers house vast amounts of critical data, making them essential to the operation of many businesses and organizations. FM200 systems can protect against fires that could cause data loss or downtime.



-Control rooms: Control rooms are often used in industrial and manufacturing settings to monitor and control complex processes. FM200 systems can protect against fires that could disrupt these processes and cause significant damage.



Medical and research facilities: Medical and research facilities often contain sensitive equipment and materials that must be protected from fire. FM200 systems can suppress fires without causing damage to the equipment or materials.



                                                                                               Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 3





































Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 4







































Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 5

































Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                                                                                            Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 6







After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
