20m Fire Detection Tube For Power Plant / Communication / Petrochemical

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 200 sets per week
  • Detail Information
  • Product Description

Detail Information

Storage Pressure: 2.5Mpa Capacity Of Agent: 3kg Fm200
Zone Management: Single Pattern Of Extinguishing: Enclosed Flooding
Standard Of Examination: GB25972-2010 Max Length Of Detecting Tube: 20m
High Light:

20m Fire Detection Tube


Fire Detection Tube For Power Plant

Product Description

3Kg Fm200 Fire Extinguisher Tube With GB25972-2010 Standard



No. Specification Technical parameter
1 Type Fm200 direct type
2 model WZ-Q/T-QZ3-XJ60
3 Working pressure 2.5Mpa
4 Max working pressure 4.2Mpa
5 Working temperature 0-50℃
6 Density of unit volume 0.7kg/m3
7 Max length of detecting tube 20m
8 Quantity of agent 3kg




This device can detect fire situation by a pressurized fire trace tube, which connecting to an extinguishing agent storage. Both HFC-227ea/FM200 or Carbon Dioxide can be used as extinguishing agent for this device.

Usually, it would be designed to two modes of discharge----direct release and indirect release. When fire breaks out, the fire trace will activate the device, and spray extinguishing agent through the fire trace tube itself, we call it direct release. And another mode, the fire trace tube will detect fire, and extinguishing agent is discharge through a pre-installed pipe and nozzle quickly, we call it indirect release.

Fire trace extinguishing device is a good device with covering the shortage of fixed device. Because it can be used in a small space or area of special environment which cannot install pipeline, nozzles, or fire alarm system.




Power plants, communications, broadcasting, petrochemical, railway ans so on system.

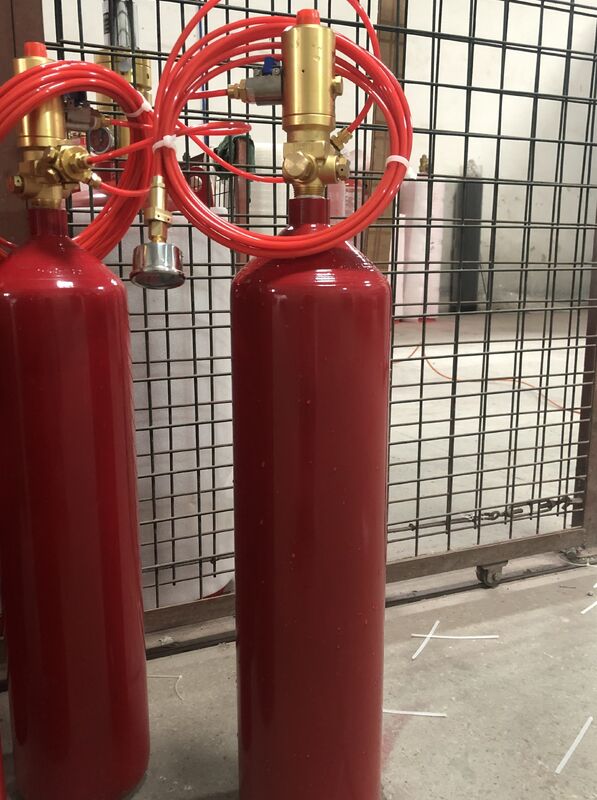

              20m Fire Detection Tube For Power Plant / Communication / Petrochemical 0



Working principle:


    Because of the soft characteristic, the fire detecting tube can be fixed at any places that fire easily happens. Thus when there is a fire in the cabinet, the fire detecting tube can be quickly broken by the fire. After the fire detecting tube broken, the air pressure changes and the fire agent comes out to the broken hole for spraying out to put out the fire. At the same time, the small alarm bell on the top part of the fire extinguisher rings to tell users that there is a fire and please check it and refill the system.





    This extinguishing device needs no electrical elements and pipe fittings to consist of a system. It can be a fire suppression system itself.


    The direct type fire detecting tube fire suppression system is consist of a cylinder, an at most 25m long fire detecting tube, a container valve and two kinds of agents-- co2 and fm200.


    The indirect type fire detecting tube fire suppression system has the same components as the direct type except a release tube added. In this system, the fire detecting tube is used for just detecting function, so it needs a release tube together, however, for the direct type, the fire detecting tube can be used for both detecting and releasing.



The fire detecting tube fire suppression device has the following advantages:

1. Convenient installation and transportation. Because this system combines fire fighting and alarm function together, and no needs to match electrical elements and pipe fittings, so after fixing the cylinder on a place, all left to do is fixing the detecting tube around a potential source of fire.

2. Non-electric start mode. It doesn't need the power to activate the system. This system's work principle is using its own storage pressure instead of relying on the outside force activating. When the detecting tube is broken by the fire, the agent will discharge.

3. Little occupation of space. This system is suitable for protecting a system, like telecommunication system, rather than a protected zone. The cylinder fixes on the outer cabinet, and will not occupy many places.
