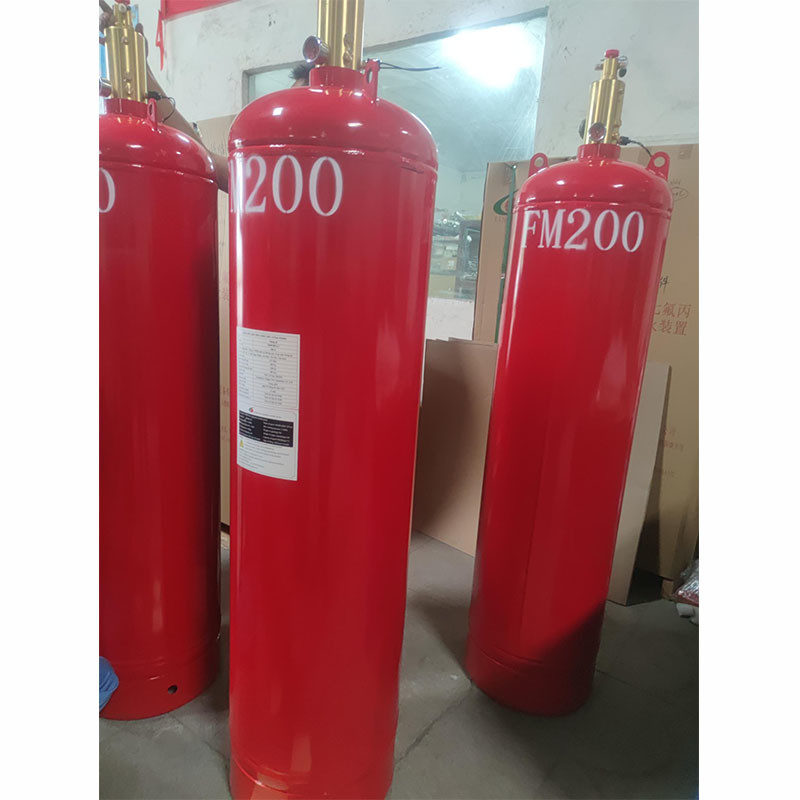

180L Type Hfc227ea Fire Suppression System FM200 Fire System With Low Maintenance For Fire Detection

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/180L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

180L Hfc227ea Fire Suppression System

,

High Durability Hfc227ea Fire Suppression System

Pattern Of Extinguishing:
Totally Flooding
Weight:
80kg
Volume Of Cabinet:
627L
Capacity Of Cylinder:
180L
Agent:
Htc-227ea
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Totally Flooding
Weight:
80kg
Volume Of Cabinet:
627L
Capacity Of Cylinder:
180L
Agent:
Htc-227ea
Standard Of Examination:
GB25972-2010
Product Description

180L Type Hfc227ea Fire Suppression System With Multiple Zones Controlled



180L Type Hfc227ea Fire Suppression System High Durability For Effective Protection

Parameter:



No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa



Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.



An FM200 fire extinguishing system is a type of gaseous fire suppression system that uses FM200 gas to extinguish fires quickly and effectively. FM200 is a clean agent extinguishing agent that is colorless, odorless, electrically non-conductive, and leaves no residue after discharge. The system is commonly used in critical facilities like data centers, museums, archives, and other areas containing important assets and sensitive equipment or materials where water-based fire suppression systems would cause damage.

The FM200 system comprises of FM200 cylinders, release valves, detection, and control panels, piping, and discharge nozzles. The detection and control panels include heat detectors, smoke detectors, manual call points, and pre-action systems.

When a fire is detected, the FM200 system is activated to release FM200 gas into the protected area, extinguishing the fire by reducing the oxygen concentration to a level where combustion cannot occur. The FM200 gas is distributed through the piping system and nozzles to the protected area, which is designed to provide fast and effective fire suppression with minimal disruption to the protected area, occupants, and assets.

One of the main advantages of the FM200 system is its effectiveness in suppressing fires in just a few seconds after activation. The gas is also safe for use in occupied spaces and leaves no residue, making it ideal for use in areas with sensitive electronic equipment. The FM200 gas is environmentally friendly, with a low global warming potential and no ozone depletion potential.

FM200 fire extinguishing systems are common in high-value asset protection applications, such as data centers, server rooms, archives, museums, and clean rooms. The system is a reliable and efficient solution for fire protection, minimizing production downtime, and protecting high-value assets from fire damage.

Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.



    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install.



    Because there is no pipeline installation. If your protective zone is relatively small and there is no multiple zones more than three, it will save much money than the former.



Working principle:



    Here is the illustration of working principle to whole system,





                   180L Type Hfc227ea Fire Suppression System FM200 Fire System With Low Maintenance For Fire Detection 0



Simulated diagram:



    Below attached is one mimic diagram of single cabinet type of fm200 automatic fire suppression system,





                180L Type Hfc227ea Fire Suppression System FM200 Fire System With Low Maintenance For Fire Detection 1





                    180L Type Hfc227ea Fire Suppression System FM200 Fire System With Low Maintenance For Fire Detection 2
