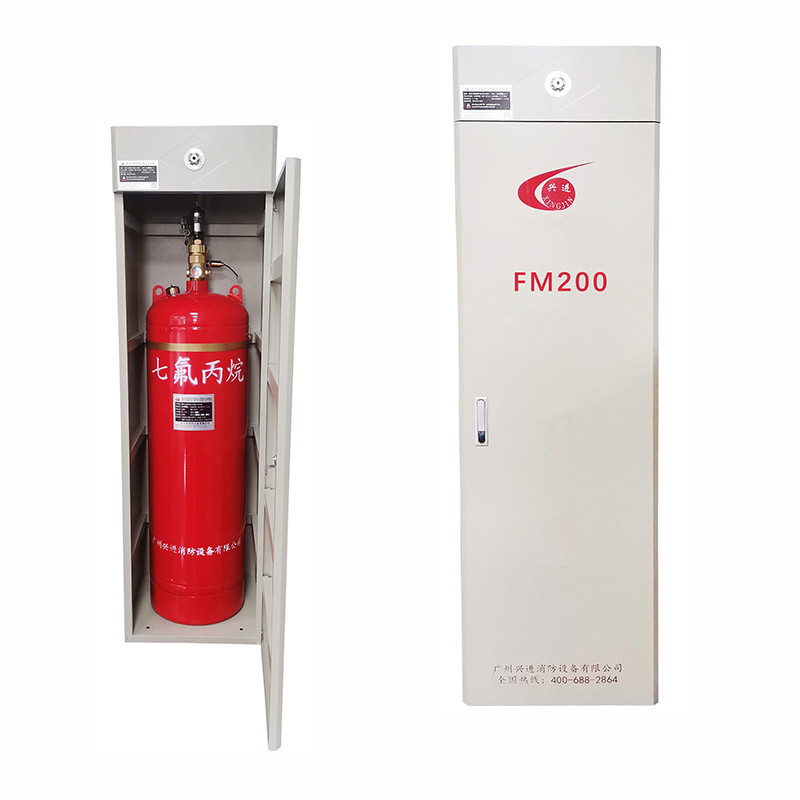

FM200 cabinet type fire extinguishing gas device

Product Introduction:

  FM200 (HFC-227EA) is a colorless, odorless, non-corrosive, electrically insulating gas that leaves no residue or pollution after extinguishing a fire. Its ODP is zero, making it an environmentally friendly fire extinguishing gas. Due to its properties, it can be used in areas prone to electrical fires.

  Combined with a fire extinguishing device and electronic accessories, the entire system can be automatically activated. Detectors monitor the protected area, and electromagnetic actuators automatically activate the fire extinguishing device, making the entire system fully automated.

Compositions:

  The single-cabinet FM200 automatic fire extinguishing system consists of two main components: the fire extinguishing device and the electrical accessories.
  The fire extinguishing device includes a cabinet housing the fire extinguishing device, a gas cylinder for filling and storing the FM200, hoses, and solenoid valves.
  The electrical accessories detect and monitor the entire protected area, control the entire system, issue evacuation alarms, and prevent the spread of fire.
  The integrated two components effectively achieve automatic fire detection, monitoring, alarming, and extinguishing.

Product Parameters:

specification Technical Parameter Filling pressure 2.5Mpa Relief pressure 5.0±0.225Mpa Spraying time ≤10s Working temperature 0～50℃ Power DC24V/1.6A max working pressure 4.2Mpa

model max filling weight of agent(kg) outline dimension length*width*height(mm) GQQ40 38 500×450×1450 GQQ70 67 500×450×1450 GQQ90 85 500×450×1650 GQQ100 95 500×450×1650 GQQ120 114 550×550×1900 GQQ150 143 550×550×1900 GQQ180 173 600×550×2150

Applications:

  Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

  The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying
equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

Packing and Shipping:
Product Packaging:
Each smoke exhaust fan is securely wrapped with protective materials and placed in a sturdy carton to prevent any damage during transportation and ensure safe delivery. .

Shipping:
We provide fast and reliable shipping services for all smoke exhaust fan orders. Once your order is confirmed, our team will quickly process and ship it in time according to your needs. You will receive a tracking number so that you can check the delivery status of your package at any time.

FAQ:

Q: Do you have independent R&D capabilities?
A: We have a professional R&D team and regularly collect feedback from each customer for product improvement and new product development. If the required specifications are not in the parameter table, please let us know your requirements and we will provide you with a satisfactory design solution.

Q: How many years is your warranty period?
A: We can provide a 2-year warranty.

Q: Can we place a trial order first to test the quality?
A: Yes, very welcome.

Q: What is your payment method?
A: T/T, Western Union, L/C and PayPal. The specific method can be negotiated.
