Highlight:

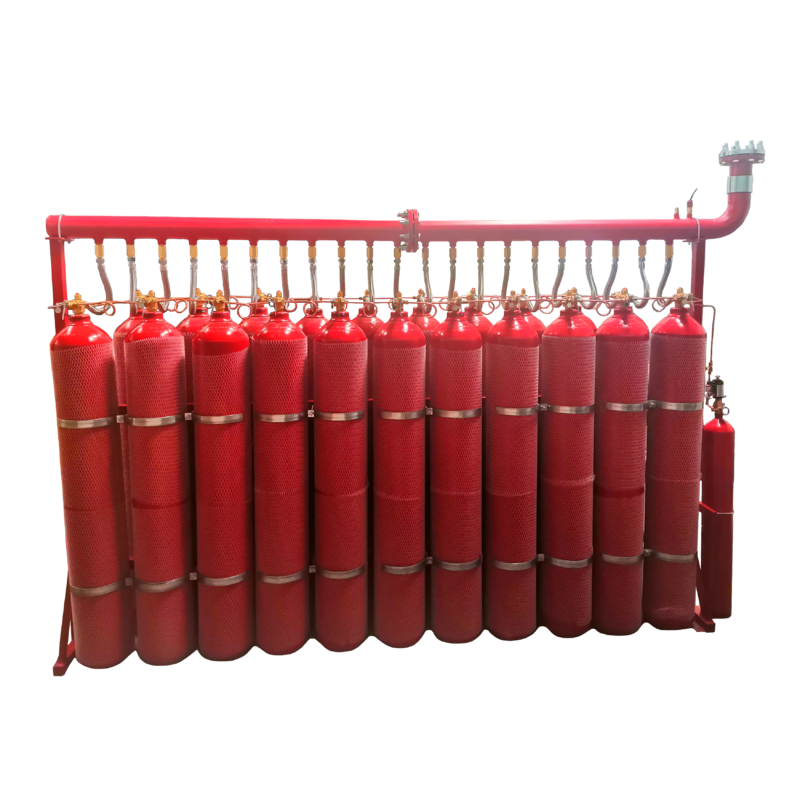

IG100 gas fire extinguishing system
Product Introduction:
The IG100 gas fire extinguishing system uses nitrogen, which makes up 78% of the atmosphere, as its extinguishing agent. Its principle is to reduce oxygen concentration to below 15%, thereby suffocating the fire. This ensures both environmental protection and high fire extinguishing efficiency. Nitrogen is widely available and inexpensive to refill.
Features of the IG100 Fire Extinguishing System:
1. Small footprint: Compared to traditional 15MPa systems, this system reduces the number of fire extinguishing agent cylinders by 25%-50%.
2. Low cost: The constant 6MPa low-pressure release reduces the cost of piping and components for the entire system. After a discharge, no parts need to be replaced; simply disassemble and refill the system for quick operation.
3. Long transmission distance: The constant 6MPa release pressure provides more sustained and effective pressure, with a transmission distance of up to 200 meters.
4. Safer and more stable: The system's low-pressure release minimizes impact on personnel, equipment, and building structures, resulting in greater safety.
System structure and parameters:
The IG100 is mainly composed of the following components: fire extinguishing agent cylinder group, container valve, gas driver, drive gas cylinder group, drive gas cylinder group-container valve, electromagnetic driver, selector valve (or distribution valve), metal hose, one-way valve, air-controlled one-way valve, pressure signal feedback device, manifold, manifold safety valve, nozzle, low-leakage high-sealing valve, and pressure reducing device.
IG100 gas fire extinguishing system technical parameters:
| Operating ambient temperature ℃ |
0℃～+50℃ |
| Work pressure |
Storage pressure |
15.0 MPa |
20MPa |
| Maximum working pressure(+50℃) |
17.2 MPa |
23.2MPa |
| Minimum working pressure(0℃) |
13.6 MPa |
18MPa |
| Container capacity L |
80L |
90L |
80L |
90L |
| Filling volume kg |
14.5kg |
16.5kg |
18.8kg |
20.68kg |
| System operating voltage |
220V AC,24V DC |
| System startup method |
Electrical automatic, electrical manual, mechanical emergency start |
| Fire extinguishing concentration |
Class A hazardous surface fire |
31% |
| Design concentration |
n-heptane |
33.6% |
| Class A hazardous surface fire |
40.3% |
| n-heptane |
43.7% |
| Design concentration in protective areas where people are working |
37.5～43% |
Fire extinguisher bottle set:
| Specifications |
QMD15/80 |
QMD15/90 |
QMD20/80 |
QMD20/90 |
| Design pressure(MPa) |
17.2 MPa |
23.2MPa |
| Work pressure(MPa) |
15 MPa |
20MPa |
| Ambient temperature(℃) |
0℃～+50℃ |
| Container capacityV (L) |
80 |
90 |
80 |
90 |
| Container outer diameter D (mm) |
Φ279 |
Φ325 |
Φ279 |
Φ279 |
| Container height H (mm) |
1578+73 |
1345+60 |
1720+20 |
1790+80 |
| IG100 Gas filling volume(kg) |
14.25kg |
16.04kg |
18.8kg |
20.68kg |
| Nominal diameter of container valve(mm) |
DN15 |
| Container valve outlet thread |
M30*1.5 |
| Safe pressure relief(MPa) |
23 MPa±1.15 MPa |
31.5MPa±1.575MPa |
Driving gas bottle set:
| Model |
Volume |
Filling pressure20℃ |
Outer diameter D(mm) |
High H ( mm) |
Outlet connection thread |
| DQP4/6 |
4L |
6MPa |
￠140 |
390 |
M14×1.5
(Expansion)
|
| DQP10/6 |
10L |
6MPa |
￠140 |
650 |
M14×1.5
(Expansion)
|
IG100 layout diagram:
Packing and Shipping:
Packaging:
The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. The packaging will consist of the following materials:
- Heavy-duty cardboard box
- Bubble wrap
- Protective foam inserts
- Instruction manual
Shipping:
We offer worldwide shipping for our Inert Gas Fire Suppression System. The following shipping options are available:
- Standard shipping: Estimated delivery time of 5-7 business days
- Expedited shipping: Estimated delivery time of 2-3 business days
- International shipping: Delivery time varies depending on location
All shipments will be sent using a reliable and trusted courier service to ensure timely and secure delivery.
Customers will receive a tracking number via email once their order has been shipped.
Customs and Duties:
FAQ:
Q: Are you a trading company or a manufacturing factory?
A: We are both a manufacturer and a trading company. We have our own factory for nearly 15 years, and we provide better services to overseas customers.
Welcome to inquire!
Q: How about the delivery time?
A: According to the minimum order quantity, delivery will be made in 10-15 working days after receiving the deposit. Normally, an order of a 20-foot container takes 30-35 days to complete.
Welcome to inquire about the specific delivery time according to your order quantity!
Q: How do you ensure product quality?
A: We have TUV/SGS/ISO quality control system and strictly implement it. We have a professional quality inspection team, and each packing worker will conduct a final inspection before packaging according to the quality inspection instructions.
Q: What is the payment method?
A: The payment methods basically include T/T, L/C at sight, Western Union, etc.
Q: Can you do OEM production for me?
A: We accept all OEM orders, just contact us and provide your design plan, we will provide you with a reasonable price as soon as possible.
Purchasing Notice
1. If you know little about the volume or area of your warehouse, factory or workshop, such as length, width, height, please be sure to contact us in time. In this way, our engineers can design the specifications and quantity of the product according to your needs.
2. If the required specification parameters are not available in the parameter table, please let us know your requirements and we will provide you with a satisfactory design solution.
3. If you have confirmed our products, please place an order and pay. After that, we will arrange shipment as soon as possible.
4. If there are any transportation difficulties, please contact us immediately, and we will provide you with a satisfactory solution to save freight as much as possible.
