Compact Automatic FM200 Hanging System for Electrical Rooms and Suspended FM200 Fire Suppression System

Name: Compact Automatic FM200 Hanging System for Electrical Rooms and Suspended FM200 Fire Suppression System
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: XQQW8L/10L/16L/20L/30L/40L
Price: 114.00 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou,China

Brand Name: XINGJIN

Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1

Model Number: XQQW8L/10L/16L/20L/30L/40L

Payment & Shipping Terms

Minimum Order Quantity: 5 set

Price: USD69-160/set

Packaging Details: Wooden Box Or Plywood Outer Box With Bubble Bag Or Paper

Delivery Time: 15-20days

Payment Terms: T/T, L/C

Supply Ability: 30000set/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Compact FM200 fire suppression system, Automatic inert gas suppression system, FM200 hanging system for electrical rooms


Tank Size:	8Ltr, 10Ltr, 16Ltr, 20Ltr, 30Ltr	Storage Pressure:	1.6mpa
Maximum Working Pressure:	2.5mpa	Discharge Time:	≤10s
Maximum Filling Density:	1kg/L	Activating Temperature:	68℃
Ambient Working Temperature:	0℃～50℃

Tank Size:	8Ltr, 10Ltr, 16Ltr, 20Ltr, 30Ltr
Storage Pressure:	1.6mpa
Maximum Working Pressure:	2.5mpa
Discharge Time:	≤10s
Maximum Filling Density:	1kg/L
Activating Temperature:	68℃
Ambient Working Temperature:	0℃～50℃

Product Description

Wall-Mounted FM-200 Automatic Fire Suppression System

Heptafluoropropane (HFC-227ea, FM-200) is a colorless, odorless, and non-conductive gas. It is characterized by its cleanliness, low toxicity, good electrical insulation, and high fire extinguishing efficiency. Notably, it does not damage the ozone layer and has a relatively short residual time in the atmosphere. Its environmental performance is significantly better than that of halogenated alkanes. It is one of the most successfully developed clean gas fire extinguishing agents to date and is regarded as the ideal product to replace Halon 1301 and 1211.

The suspended heptafluoropropane fire extinguishing device (electromagnetic type) is composed of a fire extinguishing agent storage tank, electromagnetic drive components, nozzles, pressure display components, and signal feedback components. It can be suspended or fixed on a wall and used in conjunction with fire detectors, manual buttons, alarm bells, sound alarms, fire alarm controllers, and other alarm devices. The heptafluoropropane suspended fire extinguishing device features advanced design, reliable performance, simple operation, and excellent environmental protection.

System Types

FM-200 hanging fire extinguishing equipment is available in two types: temperature induction and electromagnetic induction.

Temperature Induction (Fixed Temperature Type)

The suspended HFC-227ea fire extinguishing device (fixed temperature) relies on the room-temperature glass bulb in the valve to expand and rupture during a fire, opening the valve to release the extinguishing agent.

Electromagnetic Induction Type

The suspended HFC-227ea fire extinguishing device (electromagnetic) consists of an extinguishing agent storage tank, electromagnetic drive components, nozzle, pressure display, and signal feedback components. It can be hung or fixed on a wall and is used in conjunction with alarm devices such as fire detectors, manual push buttons, alarm bells, sound alarms, and fire alarm controllers.

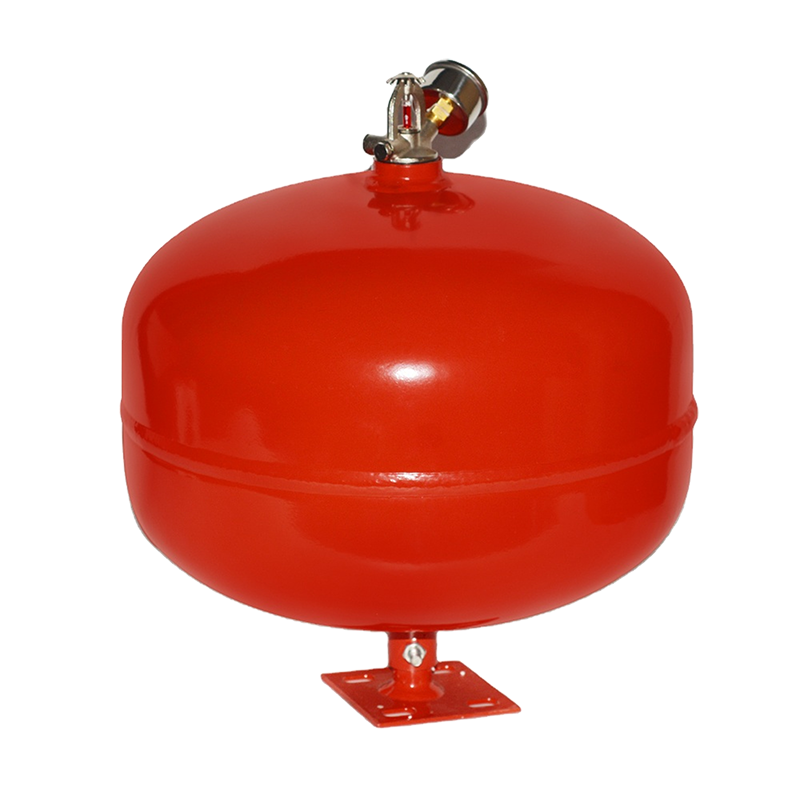

Suspended heptafluoropropane fire extinguishing device
(fixed temperature type)

Suspended heptafluoropropane fire extinguishing device
(electromagnetic type)

Specification Parameters

Fixed Temperature Type

Storage bottle specification	8L, 10L, 20L, 30L
Storage pressure	1.6 MPa
Maximum working pressure	2.5 MPa
Fire extinguishing agent discharge time	≤ 10 s
Maximum filling density	≤ 1150 kg/m³
Temperature sensing element	68 ℃
Ambient temperature of protected area	0 ℃ ～ 50 ℃

Electromagnetic Type

Storage bottle specification	16L, 20L, 30L
Storage pressure	1.6 MPa
Maximum working pressure	2.5 MPa
Fire extinguishing agent discharge time	≤ 8 s
Maximum filling density	≤ 1150 kg/m³
Device startup power supply	DC 24V / 1.6A
Ambient temperature of protected area	0 ℃ ～ 50 ℃

Device Components

Suspended heptafluoropropane fire extinguishing device
(fixed temperature type)

Suspended heptafluoropropane fire extinguishing device
(electromagnetic type)

Fixed Temperature Type — Model Specifications

Device Model	Fire Extinguishing Agent Filled (KG)	Tank Volume (L)	Storage Pressure (MPa)	Injection Time (S)
XQQW8/1.6	8	8	1.6	< 10
XQQW10/1.6	10	10	1.6	< 10
XQQW20/1.6	20	20	1.6	< 10
XQQW30/1.6	30	30	1.6	< 10

Electromagnetic Type — Model Specifications

Device Model	Fire Extinguishing Agent Filled (KG)	Tank Volume (L)	Storage Pressure (MPa)	H (mm)	D (mm)
XQQC16/1.6	16	16	1.6	375	300
XQQC20/1.6	20	20	1.6	360	350
XQQC30/1.6	30	30	1.6	470	350

Packaging and Shipping

Packaging

The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. Packaging materials include:

Heavy-duty cardboard box
Bubble wrap
Protective foam inserts
Instruction manual

Shipping

We offer worldwide shipping for our Inert Gas Fire Suppression System. All shipments are sent using a reliable and trusted courier service to ensure timely and secure delivery. Customers will receive a tracking number via email once their order has been shipped.

Special Handling Instructions

If there are any special handling instructions for your shipment, please contact us at least 24 hours before your order is shipped. We will do our best to accommodate your request.
