Home > Products > FM200 Gas Suppression System > Customizable FM200 Gas Suppression System with 5.6Mpa Storage Pressure, ≤10s Discharge Time, and 800m² Single Zone Protection

Customizable FM200 Gas Suppression System with 5.6Mpa Storage Pressure, ≤10s Discharge Time, and 800m² Single Zone Protection

Name: Customizable FM200 Gas Suppression System with 5.6Mpa Storage Pressure, ≤10s Discharge Time, and 800m² Single Zone Protection
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: 4.2MPa/5.6MPa
Price: 500.00 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou,China

Brand Name: XINGJIN

Certification: CCC,ROHS,CAC

Model Number: 4.2MPa/5.6MPa

Payment & Shipping Terms

Minimum Order Quantity: 10 set system

Price: USD480-520/set

Packaging Details: Wooden Box Or Plywood Outer Box With Bubble Bag Or Paper

Delivery Time: 15-20days

Payment Terms: T/T,L/C

Supply Ability: 30000set/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                5.6Mpa Storage Pressure FM200 Gas Suppression System, ≤10s Discharge Time FM200 Fire Extinguishing System, 800m² Single Zone Protection Heptafluoropropane Fire Suppression System


Filling Pressure:	4.2Mpa/5.6Mpa	Scale Of Protective Region For One Zone:	Area：max Single-zone Is 800m² Volume： Max Single-zone Is 3600m³
Spraying Time:	≤10s	Filling Density:	≤950kg/m3，≤1080kg/m3
Power:	DC24V/1.6A	Nitrogen Pressure Of Driving De Vice:	6.0±1.0MPa(20℃)
Condition Of Reserving Room For Container:	Temperature: -10~50℃, Relative Humidity: ≤97%	Max Working Pressure:	5.3Mpa/8.0Mpa
Min Working Pressure:	4.2Mpa/4.6Mpa

Filling Pressure:	4.2Mpa/5.6Mpa
Scale Of Protective Region For One Zone:	Area：max Single-zone Is 800m² Volume： Max Single-zone Is 3600m³
Spraying Time:	≤10s
Filling Density:	≤950kg/m3，≤1080kg/m3
Power:	DC24V/1.6A
Nitrogen Pressure Of Driving De Vice:	6.0±1.0MPa(20℃)
Condition Of Reserving Room For Container:	Temperature: -10~50℃, Relative Humidity: ≤97%
Max Working Pressure:	5.3Mpa/8.0Mpa
Min Working Pressure:	4.2Mpa/4.6Mpa

Product Description

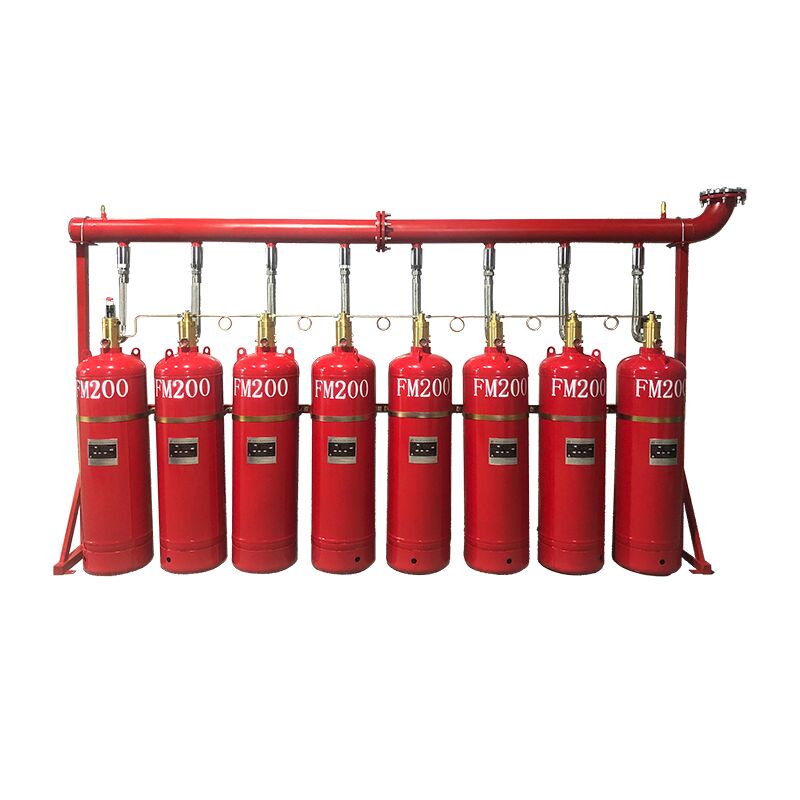

Customizable FM200 Pipe Network System

Automatic Gas Suppression for Industrial Use

Pipeline Gas Fire Extinguishing System (5.6 MPa)

Product Features

Heptafluoropropane (chemical formula CF₃CH₂F) is a colorless, odorless, non-conductive fire suppression agent that causes no secondary pollution. With zero ozone depletion potential (ODP), it is recognized by ISO as one of the cleanest gas fire extinguishing agents available. Key characteristics include exceptional cleanliness, low toxicity, excellent electrical insulation properties, and high fire suppression efficiency.

Fire Suppression Mechanism

Chemical Inhibition: Neutralizes active free radicals in flames, interrupting the combustion chain reaction
Cooling Effect: Rapid phase change from liquid to gas absorbs substantial heat, reducing flame zone temperature
Suffocation: Displaces oxygen concentration in protected areas, slowing combustion rates

FM200 fire extinguishing equipment complies with GB25972-2010 certification standards. The system offers complete functionality, reliable operation, comprehensive safety protection measures, and is suitable for protecting multiple large-scale areas.

Application Scope

Suitable for Extinguishing:

Electrical fires
Liquid fires or fires involving molten solids
Surface fires on solid materials
Gas fires where the gas source can be cut off prior to extinguishing

Typical Application Areas:

Fire protection zones for gases and liquids with explosion hazards
Libraries, archives, document repositories, and cultural relic storage
Oil-immersed transformers, oil-filled power distribution equipment, and standby generator rooms
Communication rooms and computer data centers

System Technical Parameters

Parameter	Specification
Storage Pressure	5.6 MPa
Extinguishing Agent Discharge Time	≤ 10 seconds
Extinguishing Agent Filling Density	≤ 1080 kg/m³
Drive Device Air Source Pressure	6.0 MPa (20℃)
System Working Power Supply	AC 220V DC 24V 1A
System Working Environment Temperature	0℃～50℃
System Protection Limit - Area	Maximum single zone 800m²
System Protection Limit - Volume	Maximum single zone 3600m³
System Startup Modes	Automatic, Electrical Manual, Mechanical Emergency Manual
Storage Bottle Volumes	70L, 90L, 120L

Why Choose Our FM200 System
