Highlight:
FM200 fire suppression pipe network
, centralized FM200 gas system
, high efficiency FM200 suppression solution
Filling Pressure: |
4.2Mpa/5.6Mpa |
Scale Of Protective Region For One Zone: |
Area：max Single-zone Is 800m² Volume： Max Single-zone Is 3600m³ |
Spraying Time: |
≤10s |
Filling Density: |
≤950kg/m3，≤1080kg/m3 |
Power: |
DC24V/1.6A |
Nitrogen Pressure Of Driving De Vice: |
6.0±1.0MPa(20℃) |
Condition Of Reserving Room For Container: |
Temperature: -10~50℃, Relative Humidity: ≤97% |
Max Working Pressure: |
5.3Mpa/8.0Mpa |
Min Working Pressure: |
4.2Mpa/4.6Mpa |

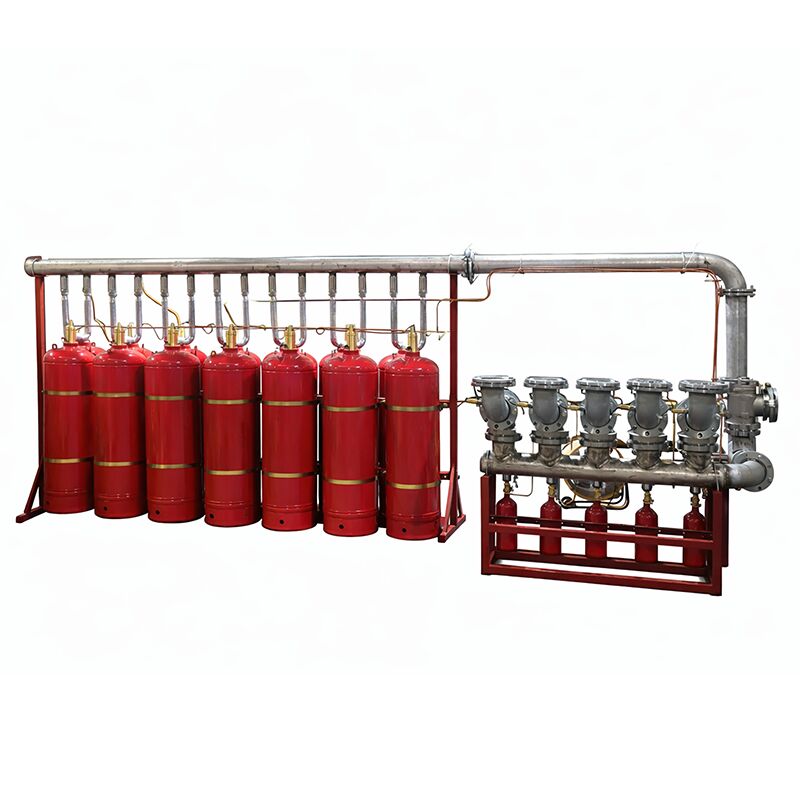

Multi-Zone Multi-Cylinder FM200 Fire Suppression System
Product Overview
The Multi-Zone Multi-Cylinder FM200 Pipe Network Fire Suppression System is an advanced clean agent fire protection solution designed for critical facilities such as data centers, server rooms, communication facilities, electrical rooms, archives, and museums.
The system uses multiple agent cylinders connected to a centralized pipe network, allowing one system to protect multiple hazard zones efficiently.
When a fire is detected, the fire detection system activates the control panel, releasing FM200 extinguishing agent within 10 seconds through the piping network. The agent quickly suppresses flames and interrupts the combustion chain reaction, protecting valuable assets and sensitive equipment.
The system provides fast fire suppression, zero residue, non-conductive protection, and safe operation for electronic equipment, making it an ideal solution for high-value facilities.
Key Advantages
Fast Fire Suppression
The system discharges extinguishing agent within 10 seconds, ensuring rapid fire suppression.
Multi-Zone Protection
One system can protect multiple hazard zones, improving efficiency and reducing installation costs.
Clean Agent – No Residue
FM200 leaves no residue after discharge, protecting sensitive electronics.
Safe & Environmentally Friendly
Safe for equipment and suitable for occupied environments.
Centralized Pipe Network System
The pipe network allows centralized distribution of the extinguishing agent.
Working Principle
The system consists of a fire detection system, control panel, cylinder bank, and pipe network.
When fire detectors sense smoke or heat:
-
Fire alarm control panel receives the signal
-
Pre-discharge alarm is activated
-
Solenoid valve opens the cylinder valve
-
FM200 agent flows through the pipe network
-
Nozzles discharge the agent into the hazard area
-
The agent reaches extinguishing concentration
This process suppresses fire rapidly and prevents re-ignition.
Applications
Typical Applications
System Components
Main Components
-
FM200 Agent Cylinders
-
Cylinder Valves
-
Electric Actuator
-
Selector Valves
-
Pipe Network
-
Discharge Nozzles
-
Fire Alarm Control Panel
-
Smoke & Heat Detectors
-
Audible & Visual Alarms
Technical Specifications
| Fire extinguishing agent |
FM200 (HFC-227ea) |
| Spraying time |
≤10 s |
| Fire extinguishing methods |
Total flooding fire extinguishing |
| Working temperature |
-10℃ ~ 50℃ |
| Drive mode |
Electric start / Air start |
| Number of protection zones |
Multi-zone protection |
| System structure |
Pipeline network type |
| Control method |
Automatic / Manual / Mechanical Emergency |
Why Choose Our FM200 System
Our Advantages
-
International fire safety standards compliance
-
Professional fire protection engineering experience
-
OEM / ODM service available
-
Customized system design support
-
Global project delivery capability
Request a Quote
Contact us today to get:
-
System design support
-
Project quotation
-
Technical documentation
-
OEM / ODM cooperation
