ZF Series Combination Air Valve for Petrochemical Plants

Product Introduction

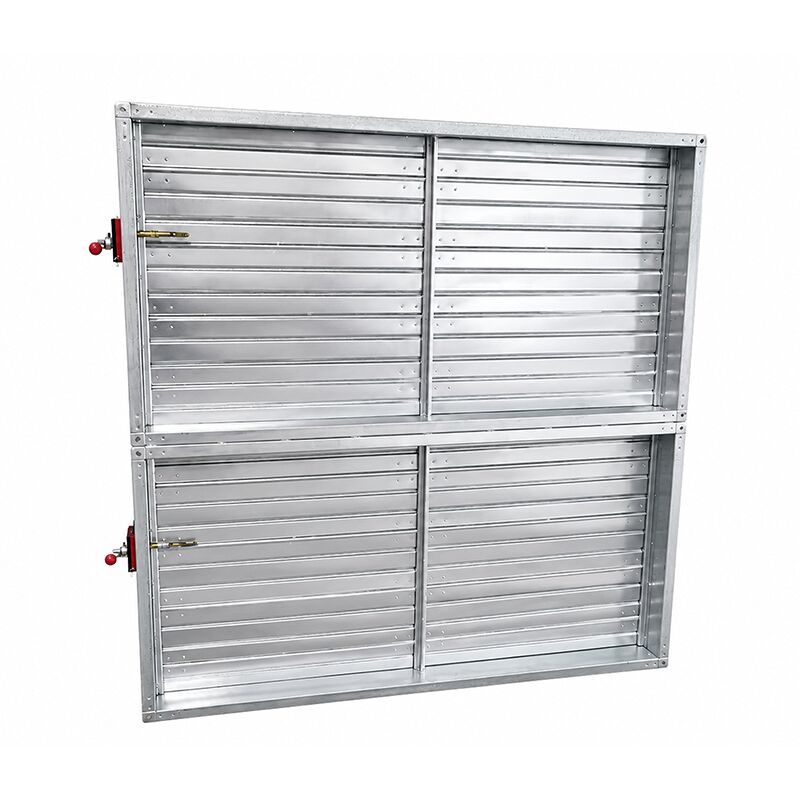

The Combination Air Valve (ZF Series) is an electric modular air volume control device specifically designed for large space HVAC systems. It consists of a bottom frame, multiple independent valve bodies, an actuator, and a transmission mechanism. Manufactured from galvanized steel sheet, the blades can be constructed as double-layer riveted or single-layer reinforced structures. Controlled via a connecting rod mechanism for multi-blade联动, it is ideal for subway tunnels, large warehouses, petrochemical plants, large coal mines, and other applications requiring large cross-section duct air volume regulation.

Applicable Locations

The Combination Air Valve is widely used in large space, large duct ventilation and air conditioning systems. Typical applications include:

Core Value: Designed specifically for large cross-section ducts, the Combination Air Valve integrates multiple small air valves into one unit for unified control — saving installation space while ensuring precise and reliable air volume regulation.

Product Advantages

1. Designed for Large Cross-Section Ducts

• Specifically for large-size ducts — single valve width can reach several meters

• Composed of multiple independent valve bodies for flexible configuration

• Solves the problem of no suitable ready-made valves for large ducts

2. Electric / Manual Dual Drive Mode

• Standard electric actuator (AC220V / DC24V optional)

• Manual operation device included — manual control available during power outages

• Meets both fire alarm integration and daily maintenance requirements

3. Double-Layer Blade Construction — High Strength, Excellent Sealing

• Blade options: 1.0mm+1.0mm double-layer riveted or 1.5-2.0mm single-layer reinforced

• Zinc coating thickness 275g/m² (both sides) for excellent corrosion resistance

• Stainless steel seals — leakage rate as low as 0.5%

4. Low Leakage Rate — Significant Energy Savings

• Standard type leakage rate ≤ 1%

• Tight shut-off type leakage rate ≤ 0.5%

• Resistance coefficient < 0.5 when fully open — smooth airflow

5. High-Quality Transmission Components — Reliable Operation

• Oil-impregnated self-lubricating brass bearings — no daily maintenance required

• 12×12mm galvanized square steel blade shaft — high strength, wear-resistant

• 16×4mm galvanized flat steel connecting rod — smooth transmission

6. Strong Weather Resistance — Suitable for Harsh Environments

• Operating temperature: -20℃ to 45℃

• Galvanized anti-corrosion treatment — suitable for humid, dusty environments

• Stainless steel option available for higher corrosion resistance requirements



Technical Specifications

Why Choose Guangzhou Gooven Combination Air Valve?

• ✅ Designed for Large Ducts — solves the problem of no suitable ready-made valves for large cross-section ducts

• ✅ Dual Drive Mode — electric control with manual backup — safe and reliable

• ✅ Low Leakage Design — tight shut-off type leakage ≤ 0.5% — significant energy savings

• ✅ High-Quality Transmission Components — brass bearings + galvanized steel shaft — maintenance-free, long life

• ✅ Strict Quality Control — each valve undergoes operational and sealing tests before shipment

• ✅ Strong Customization Capability — size, material, and drive mode can all be customized
