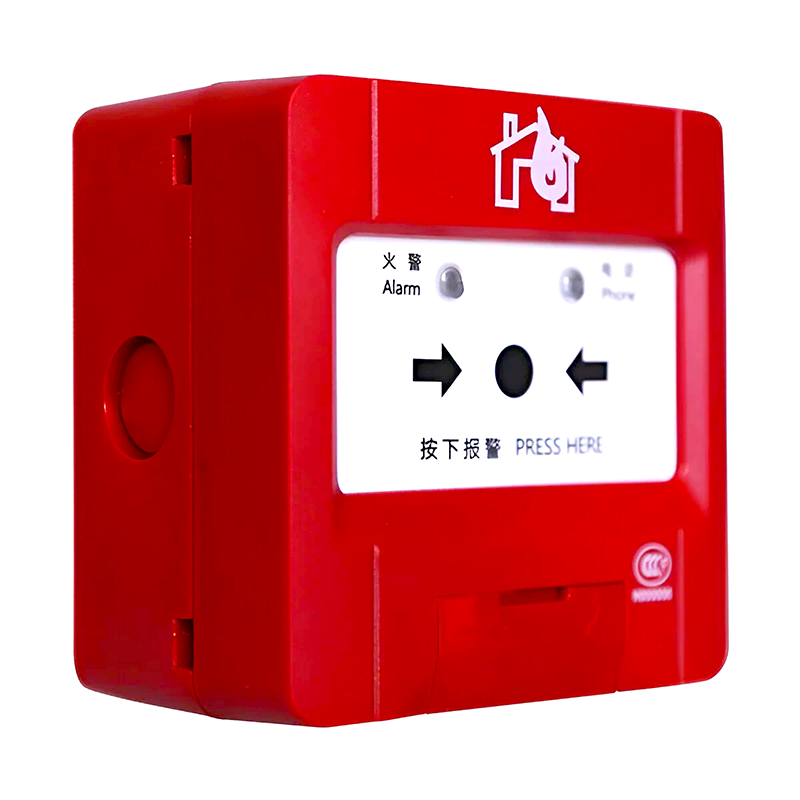

Fire Alarm Emergency Start Stop Push Button Station

Name: Fire Alarm Emergency Start Stop Push Button Station
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: J-SAP-JBF4121A
Price: 3.00 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou,China

Brand Name: XINGJIN

Certification: CCC;GB/T 3836.1-2021;GB/T 3836.4-2021;GB 19880-2005

Model Number: J-SAP-JBF4121A

Payment & Shipping Terms

Minimum Order Quantity: 100 set system

Price: USD3-4/pc

Packaging Details: Wooden Box Or Plywood Outer Box With Bubble Bag Or Paper

Delivery Time: 15-20days

Payment Terms: T/T,L/C

Supply Ability: 300000 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Poe:	Optional	Temperature:	-10℃ To +55℃
Installation:	Wall Mounting	Power:	Battery
Working Voltage:	DC19-28V	Minimum Oeder Quantity:	1set
Bus Voltage:	DC 14V ~ DC 24V	Indicated Light:	Red (Alarm/Failed), Green (Running)
Light Intensity:	135cd	Operatingtemperaturerange:	-10°C To 50°C
Usage:	Fire Alarm Display And Alarming	Nominal Diameter:	15mm, 20mm
Power Voltage:	DC 24V	Alarm Concentration:	0.65～15.5%FT
Maintenance:	Monthly Testing Recommended

Poe:	Optional
Temperature:	-10℃ To +55℃
Installation:	Wall Mounting
Power:	Battery
Working Voltage:	DC19-28V
Minimum Oeder Quantity:	1set
Bus Voltage:	DC 14V ~ DC 24V
Indicated Light:	Red (Alarm/Failed), Green (Running)
Light Intensity:	135cd
Operatingtemperaturerange:	-10°C To 50°C
Usage:	Fire Alarm Display And Alarming
Nominal Diameter:	15mm, 20mm
Power Voltage:	DC 24V
Alarm Concentration:	0.65～15.5%FT
Maintenance:	Monthly Testing Recommended

Product Description

Products Description

The J-SAP-JBF4121A-Ex is a microprocessor‑based intrinsically safe manual fire alarm button designed for use in hazardous areas requiring explosion‑proof protection. It is suitable for connection to addressable fire alarm control panels via a non‑polarised two‑bus system, offering reliable manual alarm initiation with low power consumption and extended communication range.

Product Advantages

Microprocessor‑Based Design

Built around a dedicated microprocessor, the device ensures stable performance and fast response. The use of SMT surface‑mount technology enhances reliability and product consistency across all units.

Non‑Polarised Two‑Bus Communication

The unit operates on a non‑polarised two‑bus system, which eliminates the need to distinguish between positive and negative terminals during wiring. This design simplifies installation, reduces the risk of connection errors, and supports communication distances of up to 1000 metres while maintaining low current consumption.

Intrinsically Safe Explosion‑Proof Construction

The device is of intrinsically safe type and must be used in conjunction with a certified safety barrier. It is suitable for installation in hazardous environments where explosive gases or vapours may be present.

Electronic Addressing

Address assignment is carried out using a dedicated electronic encoder, enabling fast and accurate on‑site configuration. The coding method supports straightforward system commissioning and re‑addressing when required.

Simple and Secure Operation

To activate an alarm, the operator presses the front panel. The button mechanism is designed for ease of use, ensuring quick manual fire reporting. After activation, the panel can only be reset using the matching special key, preventing unauthorised or accidental reset.

Plug‑In Structure for Easy Maintenance

The unit features a plug‑in mechanical design, allowing the button assembly to be easily inserted into or removed from its base. This simplifies initial installation, routine maintenance, and future replacement, reducing on‑site labour time and effort.

Products Parameters

Operating environmental conditions

Operating temperature	-10 to +55°C
Storage temperature	-30 to +75°C
Relative humidity	≤ 95% RH (40 ± 2°C)

Parameter	Technical Specification
Operating Voltage	DC 18-28V, modulated type provided by controller (must use safety barrier)
Standby Current	≤0.3mA (24V)
Alarm Current	≤1mA (24V)
Explosion-proof Mark	Ex ib IIC T6 Gb
Addressing Method	Electronic encoder addressing
Addressing Range	1-200
Indicator Light	Fire indicator flashes momentarily in standby mode; stays steady red when pressed and in alarm
Dimensions	90mm (L) × 90mm (W) × 52mm (H)
Wiring System	Two-wire bus, non-polarity
