FM200 Fire Suppression System Alarm System With Low Maintenance For Fire Detection

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:

fm 200 suppression system

,

firefighting equipments

Storage Pressure:
2.5 Mpa
Zone Management:
Single Zone
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Capacity Of Cylinder:
40L、70L、90L、100L、120L、150L、180L
Pattern Of Extinguishing:
Enclosed Flooding
Actuation:
Automatic Or Manual
Storage Pressure:
2.5 Mpa
Zone Management:
Single Zone
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Capacity Of Cylinder:
40L、70L、90L、100L、120L、150L、180L
Pattern Of Extinguishing:
Enclosed Flooding
Actuation:
Automatic Or Manual
Product Description

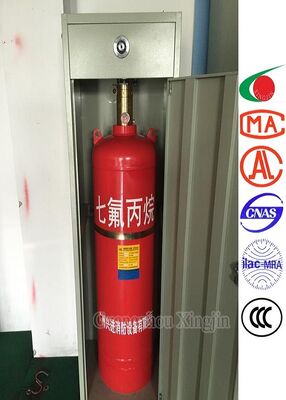

Single cabinet type of fm200 automatic fire suppression system

Parameter:



No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa



No. model max filling weight of agent(Kg) outline dimension length*width*height(mm)
1 GQQ40 38 450*400*1450
2 GQQ70 67 500*450*1650
3 GQQ90 85 500*400*1650
4 GQQ100 95 500*400*1650
5 GQQ120 114 550*550*1900
6 GQQ150 143 550*550*1900
7 GQQ180 173 600*550*1900



Description:



An FM200 automatic fire suppression system is a type of gaseous fire suppression system designed to extinguish fires quickly and efficiently in critical areas where water-based fire suppression systems would be detrimental to sensitive equipment or materials. FM200 is a clear, colorless, and electrically non-conductive gas that leaves no residue after discharge.

The FM200 system comprises of FM200 cylinders, release valves, detection, and control panels, piping, and discharge nozzles. The detection and control panels include heat detectors, smoke detectors, manual call points, and pre-action systems.

When a fire is detected, the FM200 system is triggered to release FM200 gas into the affected area, extinguishing the fire by reducing the oxygen concentration to a level where combustion can no longer occur. The FM200 gas is distributed through the piping system and nozzles to the protected area, which is designed to provide fast and effective fire suppression with minimal disruption to the protected area, occupants, and assets.

One of the main advantages of the FM200 system is its fast response time, which can suppress a fire within seconds after detection. The FM200 gas is also safe for use in occupied spaces and leaves no residue, making it ideal for use in areas with sensitive equipment such as computer rooms, data centers, and telecom facilities.

FM200 automatic fire suppression systems are commonly used in critical industrial applications such as data centers, computer rooms, archives, museums, and clean rooms, among others. The system is an efficient and reliable solution for protecting high-value assets and minimizing production downtime in the event of a fire. It is also environmentally friendly since it has no ozone depletion potential and has a low global warming potential, making it an ideal choice for organizations that prioritize sustainability.



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.



Compositions:



    single cabinet type of fm200 automatic fire suppression system is mainly composed by two parts. Extinguishing devices and electrical accessories.



    Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose ans solenoid actuator and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



    Here attached below is complete composition of whole system,



FM200 Fire Suppression System Alarm System With Low Maintenance For Fire Detection 0

FM200 Fire Suppression System Alarm System With Low Maintenance For Fire Detection 1

Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.



    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is relatively small and there is no multiple zones more than three, it will save much money than the former.



Working principle:



Here is the illustration of working principle to whole system,



FM200 Fire Suppression System Alarm System With Low Maintenance For Fire Detection 2

Simulated diagram:



Below attached is one mimic diagram of single cabinet type of fm200 automatic fire suppression system,



FM200 Fire Suppression System Alarm System With Low Maintenance For Fire Detection 3



FM200 Fire Suppression System Alarm System With Low Maintenance For Fire Detection 4
