Home > products > Fire Safety Equipments > Fm200 System High Pressure Hose For Connecting Container Valve And Manifold Reasonable Good Price High Quality

Fm200 System High Pressure Hose For Connecting Container Valve And Manifold Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1

Model Number: QRG40-XJ

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fire safety accessories

,

fire fighting accessories

Nominal Diameter:
32mm
Working Pressure:
5.4Mpa
Length:
450mm
Model:
QRG40-XJ
Material:
Steel
Color:
Silver
Nominal Diameter:
32mm
Working Pressure:
5.4Mpa
Length:
450mm
Model:
QRG40-XJ
Material:
Steel
Color:
Silver
Product Description

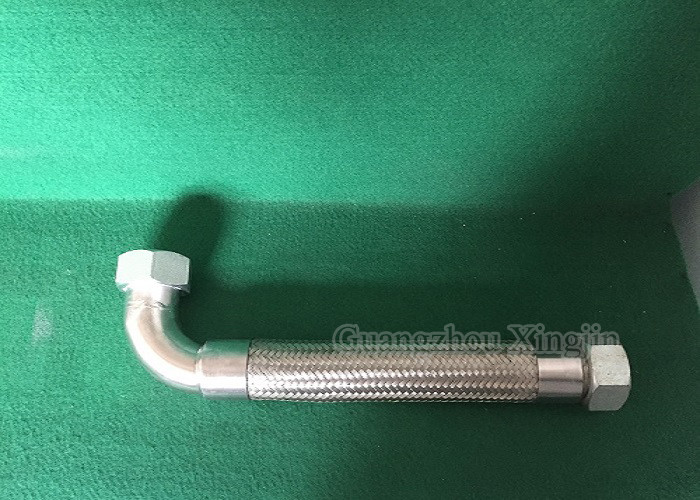

Fm200 System High Pressure Hose For Connecting Container Valve And Manifold



  High Pressure Hose







Description:



    It is used for connecting container valve and manifold. Of course, there is liquid flow check valve to prevent reflux of agent. But when it is a part of cabinet type fm200 system. It will be used to connect container valve and nozzle. Also, its function is to guide agent into a proper direction flexibly and relieve the pressure of gas when it is discharged through container valve.



The FM200 system high pressure hose is a component of fire suppression systems used to protect sensitive and critical equipment or spaces. FM200 is a clean agent, colorless, odorless, and non-toxic gas that is used to extinguish fires by reducing oxygen levels, inhibiting the combustion process, and removing heat from the affected area.

The high pressure hose is an integral part of the FM200 system that allows the gas to be delivered to the affected area in a controlled manner. The hose is designed to be flexible, durable, and resistant to kinks and abrasions to ensure that it is always ready to respond in the event of a fire.

The FM200 system high pressure hose is made from materials such as stainless steel or Teflon and is manufactured to withstand pressure of up to 3600 psi. The hose is available in different lengths and diameters to fit specific system needs.

Proper maintenance and testing of the high pressure hose is crucial for system functionality and safety. The hose should be inspected regularly for signs of wear and damage, and replaced if necessary. It is also recommended that the FM200 system be tested annually to ensure that it is in proper working condition.



             Fm200 System High Pressure Hose For Connecting Container Valve And Manifold Reasonable Good Price High Quality 0



Parameter:



Model

Nominal diameter Working pressure Length
QRG40-XJ 32mm 5.4Mpa 450mm



Attention:



    The hose should not be an acute angle when it being used in bending.



Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


Fm200 System High Pressure Hose For Connecting Container Valve And Manifold Reasonable Good Price High Quality 1

Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.

FAQ:

Q: What is the brand name of FM200 Hanging System?
A: The FM200 Hanging System is manufactured by Guangzhou Xingjin Fire Equipment Co.,Ltd.
Q: Where is the FM200 Hanging System made?
A: The FM200 Hanging System is made in Guangzhou, Guangdong, China.
Q: What models are available for FM200 Hanging System?
A: The FM200 Hanging System is available in 8L/10L/16L/20L/30L/40L models.
Q: How to install the FM200 Hanging System?
A: Please refer to the installation manual for detailed instructions on how to install the FM200 Hanging System.
Q: What are the advantages of FM200 Hanging System?
A: The FM200 Hanging System is highly reliable and efficient, and is designed to quickly extinguish fires and protect property.
