Pipe Network FM200 Fire Suppression System For Multi Zone Non Corrosive

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 system

,

fm200 suppression system

Standard Of Examination:
GB25972-2010
Agent:
Fm200
Power:
DC24V/1.6A
Pattern Of Extinguishing:
Enclosed Flooding
Zone Management:
Multi-Zone
Type:
Pipe Network
Standard Of Examination:
GB25972-2010
Agent:
Fm200
Power:
DC24V/1.6A
Pattern Of Extinguishing:
Enclosed Flooding
Zone Management:
Multi-Zone
Type:
Pipe Network
Product Description

Pipe Network FM200 Fire Suppression System For Multi Zone Non Corrosive



parameter:



No. Specification Technical Parameter
1 Filling pressure 4.2Mpa 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤950kg/m3 ≤1080kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa 8.0Mpa
9 min working pressure 4.2Mpa 4.6Mpa





Description:



    1. Clean gas, colorless and tasteless and non-corrosive

    2. Electric insulation, utilization for extinguishing of electrical combustion

    3. No residue and pollution inside protection zone

    4. No damage to ozone layer

    5. Totally automatic system

    6. Accurate control of protection zone



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.



Competitive Advantage:



    1. clean gas agent

    2. colorless, tasteless, low toxicity, and non-conductive

    3. no residue or oily deposits

    4. small storage space and easily pressurized in cylinder

    5. compliance with environmental protection requirement

    6. Large range of application area

    7. perfect protection of apparatus or zones

    8. no damage to equipment or device

    9. simple disposal after ventilation



Composition:



    1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent

    2. Electrical parts: smoke detector, heat detector, bell etc.

    3. Pipe fittings: conduit, connector, elbow, flange etc.

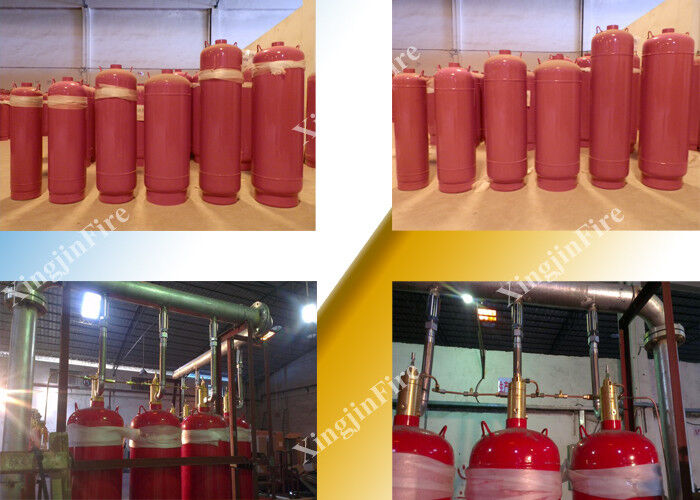

         Pipe Network FM200 Fire Suppression System For Multi Zone Non Corrosive 0





Working procedures:



     The way of putting out fire : whole flooding



     The process of activating the system : a fire happens → a smoke and heat detector send back the signal to control panel together → control panel gets the signal and activates the alarm bell → after several seconds' delay, the control panel activates the fire suppression system to put out the fire





Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.





Pipe Network FM200 Fire Suppression System For Multi Zone Non Corrosive 1



Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
