20L Hanging Fm200 Firefighting System Factory direct quality assurance best price

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 8L/16L/20L/30L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 fire system

,

hfc227ea fire suppression systems

Type:
Hanging Type
Capacity Of Cylinder:
20L
Zone Management:
Single
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Actuation:
Automatic Or Manual
Type:
Hanging Type
Capacity Of Cylinder:
20L
Zone Management:
Single
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Actuation:
Automatic Or Manual
Product Description

20L Hanging Fm200 Firefighting System



Parameter:



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start or manual start



Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.



Applications:

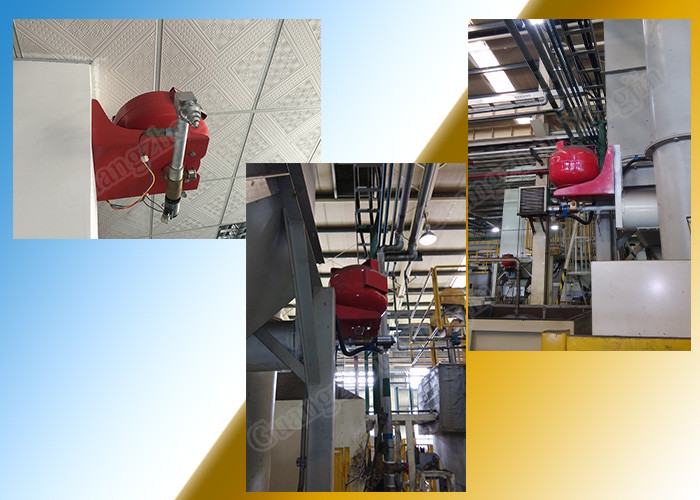

    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.



Compositions:

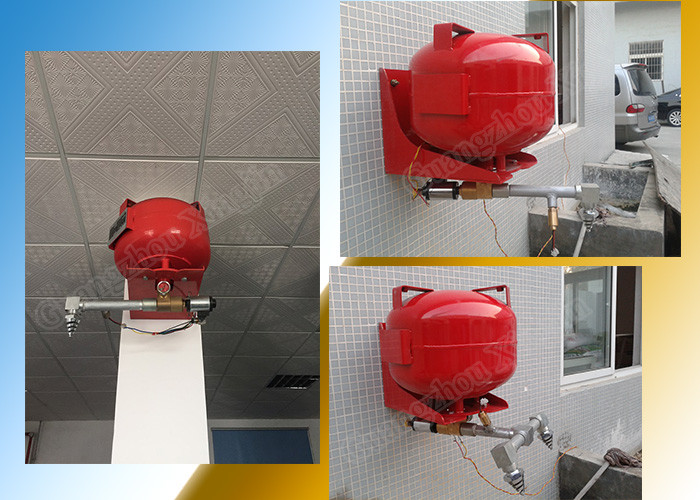

    20L hanging Fm200 Firefighting System is mainly composed by two parts. Extinguishing devices and electrical accessories.



    Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose and solenoid actuator and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



    Here attached below is complete composition of whole system,



               20L Hanging Fm200 Firefighting System Factory direct quality assurance best price 0



20L Hanging Fm200 Firefighting System Factory direct quality assurance best price 1





Advantages:



1 / Pure, odorless, colorless and clean

2 / No damage for ozone layer

3 / Environmentally friendly

4 / Convenient transportation and simple installation

5 / Saving space and money

6 / Short spraying time, less than 8s

7 / No residue left





Packages:



We usually pack products first the polyfoam and then wooden cases, and sometime we will make a palletizing for the further protection.

20L Hanging Fm200 Firefighting System Factory direct quality assurance best price 2





Working principles:



1. Electromagnetic type:



When a fire happens in the protected zone, a smoke detector can detect the smoke and send signal to the control panel. After receiving the signal, the control panel activates alarm bell to inform people that they should quickly run out from the protected zone if the protected zone is a kind of office, or to tell users that the protected zone has gotten a fire, they should go for a check and refill. After the control panel receiving signal from both smoke and heat detector, it will activate the fire extinguishing system and the fire agent sprays out within 8s.



2. Temperature-based type:



When a fire happens, temperature will slowly climb up. As the temperature reaches to the special temperature of the temperature sensor, the glass ball will be burnt by the high temperature and then fire agent goes out for putting out fire within 8s. Here is a warning for users: we suggest that one protected zone should not have two or above temperature-based fire extinguishers in case that the temperature difference influence the efficiency of the extinguisher.
