Enclosed Flooding FM200 Fire Suppression System For Multiple Rooms Control

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal, Credit card
Supply Ability: 300 sets per month

Detail Information

Storage Pressure: 4.2Mpa Actuation: Automatic Or Manual
Standard Of Examination: GB25972-2010 Working Temperature: -10~50℃
Zone Management: Multiple Rooms Pattern Of Extinguishing: Enclosed Flooding
High Light:

fm 200 system

,

fm 200 fire fighting system

Product Description

Enclosed Flooding FM200 Fire Suppression System For Multiple Rooms Control





Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤950kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa
9 min working pressure 4.2Mpa



Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    Management of Multiple zones is also in the safe control of the whole system. We can use one system to protect multiple zones through selective valves. It can let the whole system alternative aiming at different protective zone. Agent can be discharged into where the fire happens. It will be very efficient to put out fire in short time. One thing that need to mention, is that a little room should be prepare to be as storage space for the whole system.



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.



Compositions:



    4.2Mpa Fm200 System Used For Multiple Rooms Control is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

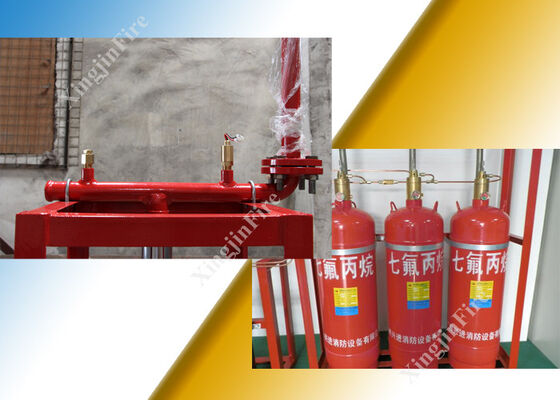

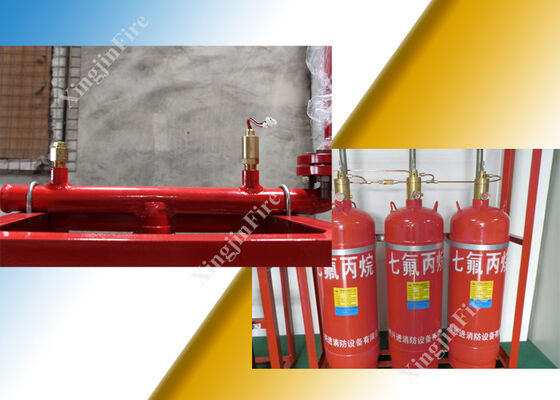

    Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.



    Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



    Here attached below is complete composition of whole system

                 Enclosed Flooding FM200 Fire Suppression System For Multiple Rooms Control 0

Attention:



    1. Choice for storage room, including ambient environment and volume

    2. Design of pipeline, including placement of conduits and connection

    3. Installation, integration of each parts and connection between parts
