100L Cabinet Model Hfc227Ea Fm200 Waterless Fire Suppression Systems

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

gas fire suppression system

,

gas fm 200

,

hfc227ea fm200 fire systems

Volume Of Cabinet:
408L
Capacity Of Cylinder:
100L
Zone Management:
Single
Power:
DC24V/1.6A
Working Pressure:
2.5Mpa
Standard Of Examination:
GB25972-2010
Volume Of Cabinet:
408L
Capacity Of Cylinder:
100L
Zone Management:
Single
Power:
DC24V/1.6A
Working Pressure:
2.5Mpa
Standard Of Examination:
GB25972-2010
Product Description

100L Cabinet Model Hfc227Ea Fm200 Waterless Fire Suppression Systems





Parameter:



No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa





Description:



    Fm200(hfc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





Compositions:



  1. Mechanical parts: cylinder with container valve, cabinet, flexible hose, liquid flow check valve, solenoid actuator, nozzle and fm200 fire agent.

  2. Electrical parts: smoke detector, heat detector, alarm bell, control panel, sounder with light, discharge indicate light and stop and release button.

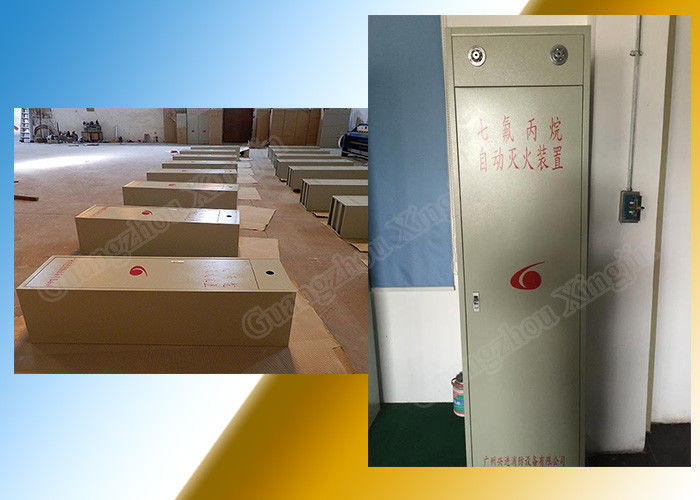

                  100L Cabinet Model Hfc227Ea Fm200 Waterless Fire Suppression Systems 0





Competitive advantage:



    1. Choice for storage room, including ambient environment and volume

    2. Design of pipeline, including placement of conduits and connection

    3. Installation, integration of each parts and connection between parts





Attentions:



    1. Please notice that the proportion and volume of protected zone for a cabinet type fm200 fire suppression system should be less than 500 suare metres and 1600 cubic metres.



    2. Please check the components according to the schedual that we provide.
