China FM200 Fire Suppression System manufacturer

100L Storage Fm200 Fire Suppression System No Damage To Ozone Layer

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case or box case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per month

Detail Information

Pattern Of Extinguishing: Enclosed Flooding Actuation: Automatic Or Manual
Standard Of Examination: GB25972-2010 Capacity: 100L
Agent: Htc227ea Storage Pressure: 4.2Mpa
High Light:

fm 200 system

,

fm200 suppression system

Product Description

100L Storage Fm200 Fire Suppression System No Damage To Ozone Layer





Description:



    1. No residue and pollution inside protection zone

    2. No damage to ozone layer

    3. No need for employment of monitor staff

    4. Manual or electromagnetic manipulation and mechanical manipulation

    5. Preparation for storage room

    6. Space confirmation of placement for cylinder group



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.



Compositions:



    4.2Mpa Type Fm200 Fire Suppression System With 100l Storage is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.



    Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.



    Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

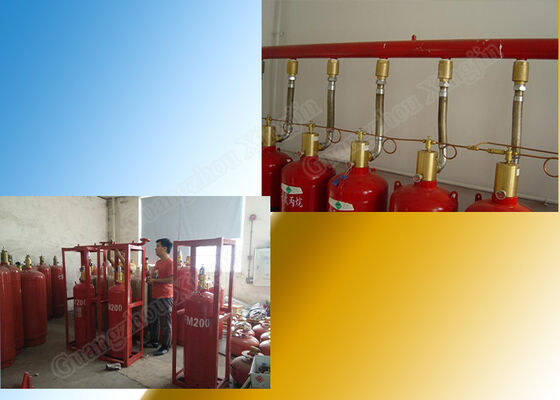

    Here attached below is complete composition of whole system,



                   100L Storage Fm200 Fire Suppression System No Damage To Ozone Layer 0





Parameter:



NO. Specifications Parameters
    4.2Mpa 5.6Mpa
1. Capacity 70l,100l,120l,150l,180l 90l,120l
2. Filling pressure 4.2Mpa 5.6Mpa
3. Filling density ≤950kg/m³ ≤1080kg/m³
4. Discharge time ≤10s ≤10s
5. Power DC24V/1.6A DC24V/1.6A
6. Nitrogen driving device 6.0±1.0Mpa 6.0±1.0Mpa
7. Storage surroundings

Temperature:-10~50℃

Relative humidity:≤97%

Temperature:-10~50℃

Relative humidity:≤97%

8. proportion ≤800m² ≤800m²
9. volume ≤3600m³ ≤3600m³





Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.



    It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.
