5.6Mpa FM200 Fire Suppression Pipe Network System for Electrical Combustion

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:

5.6Mpa FM200 Pipe Network System

,

800m² FM200 Pipe Network System

Agent:
Fm200
Type:
Piping
Working Temperature:
-10~50℃
Pattern Of Extinguishing:
Enclosed Flooding
Relative Humidity:
≤97%
Storage Pressure:
5.6Mpa
Agent:
Fm200
Type:
Piping
Working Temperature:
-10~50℃
Pattern Of Extinguishing:
Enclosed Flooding
Relative Humidity:
≤97%
Storage Pressure:
5.6Mpa
Product Description

Tasteless Piping Fm200 Fire Suppression System Pipe Network System





Parameter:



No. specification Technical Parameter
1 Filling pressure 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤1080kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 8.0Mpa
9 min working pressure 4.6Mpa




Applications:



    1.Clean gas, colorless and tasteless and non-corrosive

    2. Electric insulation, utilization for extinguishing of electrical combustion

    3. Totally automatic system

    4. Accurate control of protection zone

    5. Multiple management in the control of the whole system

    6. Agent quantity for biggest zone is enough to protect all zones through selector valves





Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.



    It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones





Simulated diagram:



    Below attached is one mimic diagram of 5.6Mpa Piping Fm200 Suppression



                      5.6Mpa FM200 Fire Suppression Pipe Network System for Electrical Combustion 0



Composition:

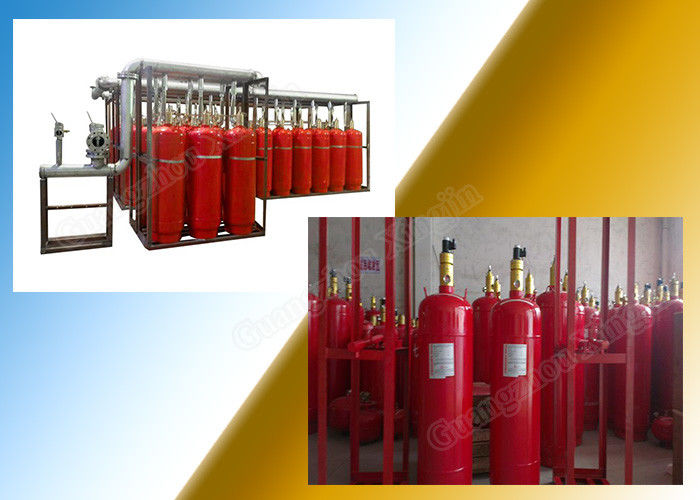

    1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent

    2. Electrical parts: smoke detector, heat detector, bell etc.

    3. Pipe fittings: conduit, connector, elbow, flange etc.





Working principle:



    The way of putting out the fire: whole flooding way



    The process of the system activated: a fire happens → the smoke detector catches smoke and sends signal to control panel → control panel get signal and activates the alarm bell to tell people to get out of the building → the heat detector feels the heat and sends signal back to control panel → control panel gets both signal from smoke and heat detector, after a few seconds' delay, starts the fire extinguishing device → fm200 fire agent sparys from the nozzle and puts out the fire.
