3kg Fm200 Fire Detection Tube Professional Manufacturers Direct Sales Quality Assurance Price Concessions

Product Details:
Place of Origin: China
Brand Name: xingjin
Model Number: WZ-Q/T-QZ3 -XJ60
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 200 sets per week
  • Detail Information
  • Product Description

Detail Information

Discharge Type: Direct Capacity Of Agent: 3kg Fm200
Standard Of Examination: GB25972-2010 Pattern Of Extinguishing: Enclosed Flooding
Agent: Agent Fm200(htc-227ea Or Heptafluoropropane) Zone Management: Single
High Light:

fire detection tubing


fire detection system


3kg Fire Detection Tube

Product Description

3kg Fm200 Fire Detection Tube




No. Specification Technical parameter
1 Type Fm200 direct type
2 model WZ-Q/T-QZ3-XJ60
3 Working pressure 2.5Mpa
4 Max working pressure 4.2Mpa
5 Working temperature 0-50℃
6 Density of unit volume 0.7kg/m3
7 Max length of detecting tube 20m
8 Quantity of agent 3kg




    3kg Fm200 Fire Detection Tube is an automatic fire extinguishing devices. The agent of this extinguishing system is fm200 , it is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing.


    Through long detecting tube with gas and pressure inside, it can be an automatic fire extinguisher without any manual manipulation.

An FM200 fire detection tube is a thin-walled polymer tube filled with FM200 gas that is used to detect and suppress fires. The tube contains a pressurized internal gas that is released upon activation by heat or flame, causing the tube to rupture, and the FM200 gas is rapidly released into the protected area.

The FM200 fire detection tube works by responding to heat or flame in close proximity to the tubing. As the temperature in the tube's vicinity increases, the internal pressure of the tube increases, and it ruptures at the point of the detected fire's origin. This, in turn, leads to the rapid release of the FM200 gas into the area, which suppresses the fire by eliminating heat and cutting off the oxygen supply.

FM200 fire detection tubes are used in areas with a high fire risk, such as confined spaces, electrical control panels, libraries, and archives. They can detect and suppress fires more quickly than traditional fire suppression systems because they detect the fire at its source, suppress it before it grows and spread, and the FM200 gas dispersed directly to the fire where it is needed.

FM200 fire detection tubes require minimal maintenance and can be easily installed by certified professionals. The system's size and shape can be customized to fit the unique needs of each environment, and the tubes can be linked to a control panel for automated activation and monitoring in real-time.




    Power plants, communications, broadcasting, petrochemical, railway ans so on system.

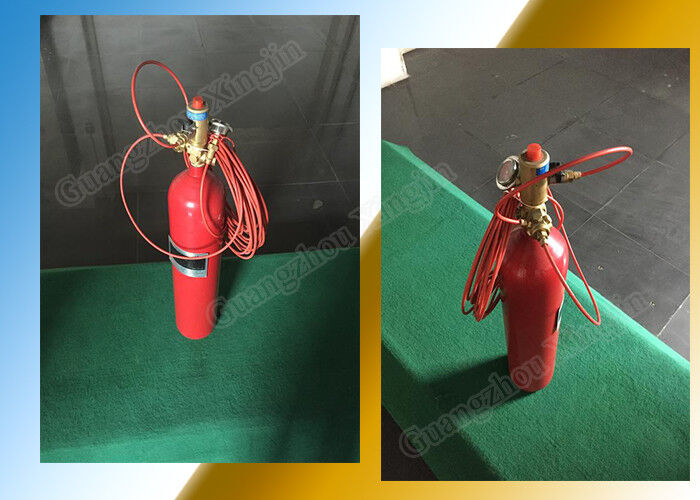

              3kg Fm200 Fire Detection Tube Professional Manufacturers Direct Sales Quality Assurance Price Concessions 0
