Multiple Zones Fm200 Gas Suppression System

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case or case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Working Temperature: -10~50℃ Relative Humidity: ≤97%
Zone Management: Multiple Pattern Of Extinguishing: Enclosed Flooding
Agent: Heptafluoropropane Type: Conduits
High Light:

firefighting equipments

,

fire safety solutions

,

DC24V Fm200 Gas Suppression System

Product Description

Fm200 Gas Suppression System with Conduits for Multiple Zones





Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m2 volume:max single-zone is 3600m3
3 Spraying time ≤10s
4 Filling density ≤950kg/m3 ≤1080kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa 8.0Mpa
9 min working pressure 4.2Mpa 4.6Mpa



Description:



1. Management of multiple zones



2. Efficient fire protection in big region



3. Less occupation in fire-controlled space



4. Relatively cheap price than cabinet or hanging type if zone is big and multiple



Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.



    It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.



Working principle:



    Here is the illustration of working principle to whole system,

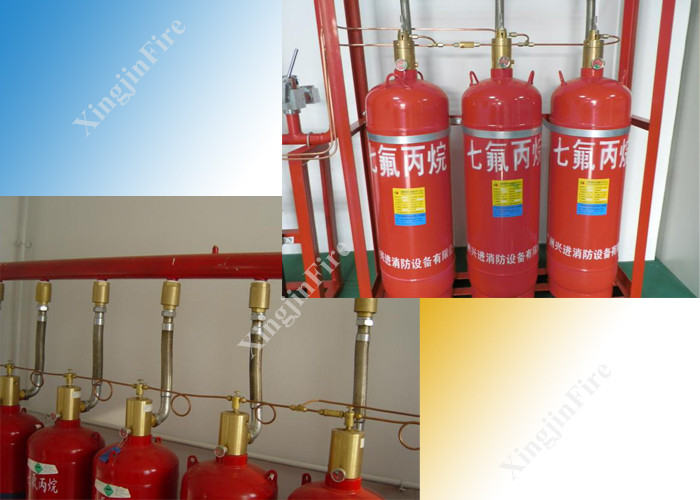

             Multiple Zones Fm200 Gas Suppression System 0
