30L Red Hanging Cylinder FM200 HFC227ea Fire Suppression System For Small Single Zone Reasonable Good Price High Quality

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiable

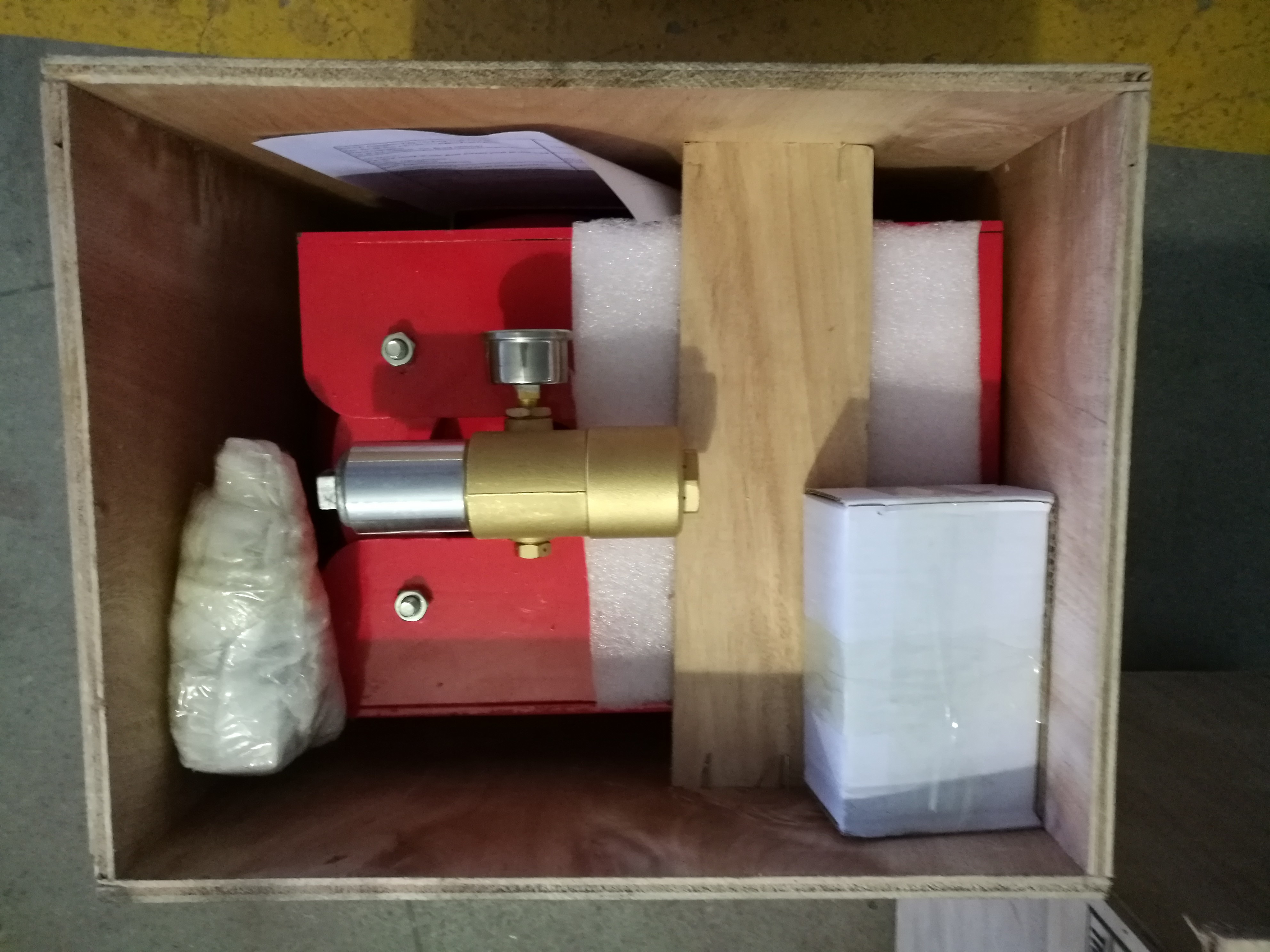

Packaging Details: Plywood case or paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
  • Detail Information
  • Product Description

Detail Information

Filling Pressure: 1.6Mpa Spraying Time: ≤8s
Standard Of Examination: GB25972-2010 Storage Pressure: 2.5Mpa
Agent: Fm200 Max Working Pressure: 4.2Mpa
High Light:

fire safe solutions

,

fire suppression systems

Product Description

30L Red Hanging Cylinder FM200 Fire Suppression System For Small Single Zone





Parameter:



NO. Specifications Parameters
1. Capacity 8l, 10l, 16l, 20l, 30l
2. Filling pressure 1.6Mpa
3. Spraying time ≤8s
4. Working temperature 0~50℃
5. Starting mode Electrical start or manual start


Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in a special place where electrical fire easily happens.



    Combined with extinguishing device and electronic accessories, the whole system can actuate

automatically. It can monitor the situation of a protective region through detectors and when there is a fire, it can start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notices the fire when it happens and also it saves much money for employment to supervise the protective area.

The 30L Red Hanging Cylinder FM200 HFC227ea Fire Suppression System is a highly effective and reliable solution designed to protect small, single-zone areas. This system uses FM200, a clean and eco-friendly gas that has been proven to effectively suppress fires in a range of different scenarios.

The system consists of a 30L red cylinder that is filled with FM200 and mounted on the ceiling or wall of the protected area. When a fire is detected, the system releases the gas into the space, extinguishing the flames quickly and efficiently.

The design of this system is particularly well-suited to small, single-zone areas such as server rooms, electrical control rooms, or other enclosed spaces where the risk of fire is high. Its compact size and ease of installation make it an ideal choice for facilities that require a reliable, yet straightforward fire suppression solution.

This system is also highly customizable and can be designed to meet the specific needs of individual facilities. For example, it can be integrated with fire detection systems or configured to discharge automatically in the event of a fire, or manually by an operator.

Overall, the 30L Red Hanging Cylinder FM200 HFC227ea Fire Suppression System is an excellent choice for anyone looking for a high-quality, effective, and reliable fire suppression solution for a small, single-zone area.



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire easily happens, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.



Compositions:



Hanging type fm200 fire suppression device can be divided into two types: one is the electromagnetic type, the other is the temperature-based type.



The electromagnetic type hanging fm200 fire suppression device consists of a fm200 cylinder, a container valve, a solenoid actuator, a pressure switch, a stainless steel pipe, and a nozzle.



The temperature-controlled type hanging fm200 fire suppression system prefers a unit of temperature sensor instead of container valve and solenoid valve.



                           30L Red Hanging Cylinder FM200 HFC227ea Fire Suppression System For Small Single Zone Reasonable Good Price High Quality 0



Competitive Advantage:



Though hanging type fm200 fire suppression system has two kinds of system, but their advantages are the same as followings:



1/ Substantial consideration of little protection. Some areas, such as server rooms or electric rooms or the like would be very small, which require little fire extinguishing agent. Then, hanging type system can play its role.



2/ Little occupation of space. As the protection zone is very small, so maybe there is no much space to place other machines or devices or objects. Then, the hanging type is designed with the small but efficient function of fire suppression and overall coverage to the whole room.



3/ Convenient installation and transportation. Because of relative light and small figure, even one person can hold and fix it on the top of ceiling or wall. But additionally, the temperature-controlled model cannot be installed more than one piece in principle or practice.





Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd., which is situated in Guangzhou, which is a key hub for communication between China and the rest of the globe, is surrounded by easy access to transit and a stunning natural environment. We are a manufacturer, and our professional and experienced staff, which includes the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, devotes its time to the study and development of HFC-227ea (FM200) products. The pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are currently among the most commonly utilized of our well-known FM200 products. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China. 30L Red Hanging Cylinder FM200 HFC227ea Fire Suppression System For Small Single Zone Reasonable Good Price High Quality 1



Part Cases Show:

• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School, Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City, Tobacco Building, etc.

• In Guangdong province, the project cases are GAC Group, 10086 in Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air Controller, Yingfu Building in Shenzhen, Bank of Communication in Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV Station, etc.

• In Shandong province, the project cases are Lushang Office Building, Lushang Marketing Center, etc.



Why Choose Us

• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.

After-Sale Service

• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.

FAQ

Q1: Are you a trading company or a manufacturing, first?
A1: We are a producer.



Q2: Do OEM items exist?
A2: Your own artwork and design are appreciated.



Q3: Where is your factory located? Can I go there?
A3: Shilou, Panyu, Guangzhou, Guangdong, China is where our factory is located. Yes, of course. We always look forward to seeing you.



Q4: How can I get to your plant ?
A4: You can take a taxi or take the subway to get here because of how easily it can be reached. If arriving by subway, you must take the line 4 and alight at the Shiqi station. Take the No. 126 bus out of the station after that, and get off at Yuexi station.
