Insulated FM 200 Fire Suppression System Without Residue And Pollution Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 system

,

fm 200 fire fighting system

Capacity:
4.2Mpa
Colour:
Red
Filling Pressure:
≤950kg/m3
Agent:
Fm200
Capacity:
4.2Mpa
Colour:
Red
Filling Pressure:
≤950kg/m3
Agent:
Fm200
Product Description

          Insulated Fm200 Fire Suppression System Without Residue And Pollution





Description



FM200 automatic fire suppression system is widely used in China even all over the world . FM200 , a kind of clean, odorless and colourless gas , is a good substitute for Halon 1301 . This FM200 system works by removing heat from fire so that the combustion cannot continue.



There are three ways to activate the system , mechanical way , automatic way and manual way . Besides , If the hfc-227ea fire suppression system is equipped with our electrical elements , it will be more efficient . When the fire happens , the electrical elements initiate the fire suppression system timely so that the critical possessions , such as the significant commercial files , the excellent staffs and so on , can be protected very well .





Parameters





No.



Specifications Technical Parameters



1



Filling Pressure 4.2Mpa



2



Spraying Time ≤ 10s



3



Nitrogen-pressure Driving Device 6.0 ± 1.0Mpa



4



The Max Area of Protected Zone 800m2



5



The Max Proportion of Protected Zone 3600m3











































Composition

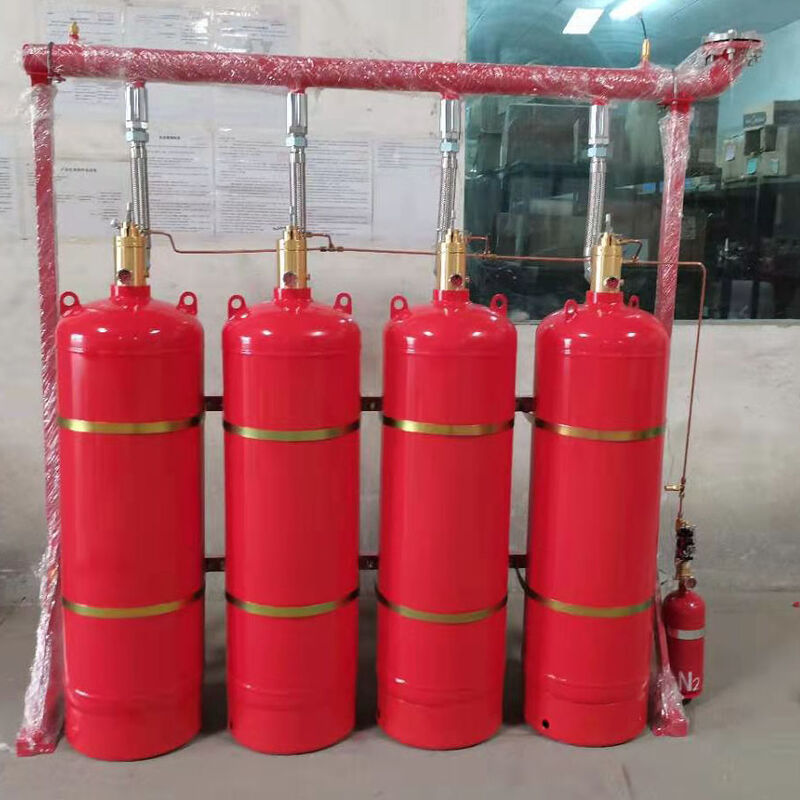

This FM200 fire suppression system consists of two parts , one is the fire extinguishing equipment , the other is the pipe network . However , we will just clarify the fire extinguishing equipment here . The extinguishing equipment includes : FM200 cylinder , container valve , flexible hose , liquid flow check valve , gas flow check valve , gas control pipe , manifold , nitrogen-pressure driving device , selective valve and pressure signal transfer . As the following picture shows you .



                        Insulated FM 200 Fire Suppression System Without Residue And Pollution Reasonable Good Price High Quality 0





Strong Points



1/ Low toxicity . HFC-227ea gas has passed the CCC test , which is the authorized quality test in China.



2/ No residue left so that users can safe the clean-up money.



3/ Environmentally friendly .  It has no possibility of hurting the ozone layer.



4/ High efficiency . The fast spraying speed can help protect many valuable possession better.



5/ Less storage place . The whole system just needs a small storage place outside but next to the

    protected zone.





Needed noticed points



1/ Every half of year , the whole system needs to have a check to see if it is fine .



2/ One system can at most cover 8 protected zones.



3/ This hfc-227ea fire suppression system is only fit for occupied places , and cannot be used outside.





Applications



FM200 fire suppression system is suitable for a lots of high-hazard commercial and industrial places, and the followings are taken as examples for users:



- Data processing centers



- Process control rooms



- Clean manufacturing facilities



- Bank vaults



- Telecommunication centers



- Battery backup room



- Document storage areas



Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


Insulated FM 200 Fire Suppression System Without Residue And Pollution Reasonable Good Price High Quality 1

Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.

FAQ:

Q: What is the brand name of FM200 Hanging System?
A: The FM200 Hanging System is manufactured by Guangzhou Xingjin Fire Equipment Co.,Ltd.
Q: Where is the FM200 Hanging System made?
A: The FM200 Hanging System is made in Guangzhou, Guangdong, China.
Q: What models are available for FM200 Hanging System?
A: The FM200 Hanging System is available in 8L/10L/16L/20L/30L/40L models.
Q: How to install the FM200 Hanging System?
A: Please refer to the installation manual for detailed instructions on how to install the FM200 Hanging System.
Q: What are the advantages of FM200 Hanging System?
A: The FM200 Hanging System is highly reliable and efficient, and is designed to quickly extinguish fires and protect property.
