Single Zone Pipe Network FM200 Fire Suppression System For Telecommunication Rooms

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 system

,

fm 200 fire fighting system

Capacity:
70l, 100, 120l, 150l, 180l
Agent:
Fm200
Color:
Red
Filling Prussure:
4.2Mpa
Capacity:
70l, 100, 120l, 150l, 180l
Agent:
Fm200
Color:
Red
Filling Prussure:
4.2Mpa
Product Description

Single Zone Pipe Network Fm200 Fire Suppression System For Telecommunication Rooms





Description



FM200 fire suppression system is widely used in China and all over the world. The most strong point of it is that this system meets thw world's requirement of environment protection. I t will not hurt the ozone layer even for 1% possibility. The other strong points, such as the clean odorless and colorless agent, the easy installation and so on, make it the best substitute for the halon 1301 in people's mind.



FM200 fire suppression system works more efficient when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. This system also distinguishes itself by the spraying time less than 10s.





Parameters





NO. Specifications Parameters
    4.2Mpa 5.6Mpa
1 Filling pressure 4.2Mpa 5.6Mpa
2 Cylinder capacity 70l, 100l, 120l, 150l, 180l 90l, 120l
3 Filling density ≤950kg/m3 ≤1080kg/m3
4 Nitrogen-pressure driving device 6.0±1.0Mpa 6.0±1.0Mpa
5 Power DC24V/1.6A DC24V/1.6A
6 Discharge time ≤10s ≤10s
7 Storage surroundings

Temperature: -10~50℃

Relative humidity:≤97%

Temperature: -10~50℃

Relative humidity:≤97%

8 The largest Protected proportion 800m2 800m2
9 The largest Protected volume 3600m3 3600m3
10 Max. working pressure 5.3Mpa 8.0Mpa
11 Min. working pressure 4.2Mpa 4.6Mpa





Components



One unit single zone pipe network fm200 fire suppression system is formed by three parts: fire fighting equipment part, pipe network part and electrical elements part. The single zone pipe network fm200 fire fighting equipment is not as same as the multiple zone fm200 fire suppression system, it lacks the selective valve.

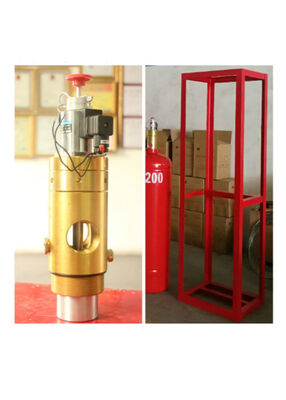

So this single zone system consists by the followings: fm200 agent, several fm200 cylinders ( it depends on the volume of the protected zone ) , a cylinder frame, a nitrogen-pressure driving device, driving device frame ( it is not necessary ) , several container valves ( the quantity equals to the number of cylinders ) , several liquid flow check valves ( the quantity equals to the cylinder’s ) , several gas control pipes and gas flow check valves, a manifold, a safety valve, a pressure signal transfer, a pair of flange and elbow.



Single Zone Pipe Network FM200 Fire Suppression System For Telecommunication Rooms 0





Applications



As its name says, the single zone pipe network fm200 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network fm200 fire suppression system can be used to protect some large and also significant places, such as the followings:



- Computer rooms



- Telecommunication center



- Facilities underground



- Offshore oil extraction



- Library



- Data and paper archives



- Valuable article storage



- Power generator storage room





Advantages



There are a lot of advantages of the single zone fm200 fire suppression system compared to other fire suppression system.



1/ It is the single zone fm200 fire suppression system that can protect the largest volume among the fm200 fire suppression system. Only a single zone system can protect at most 3600 cubic meters.



2/ Using single zone fm200 fire suppression system can help saving money. Obviously, using several systems are more expensive than only using one.



3/ It helps saving place. Because it needs a separate room outside but next to the protected zone, so it won’t waste the places in the protected zone.



4/ The single cylinder has large capacity. It has 120l, 150l, and 180l capacity.
