Three Activated Mode Hfc-227ea Fire Suppression System Pipe Network Type OEM

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 system

,

fm 200 fire fighting system

Capacity:
70l, 100, 120l, 150l, 180l
Agent:
Fm200
Color:
Red
Filling Prussure:
4.2Mpa
Capacity:
70l, 100, 120l, 150l, 180l
Agent:
Fm200
Color:
Red
Filling Prussure:
4.2Mpa
Product Description

Three Activated Mode Hfc-227ea fire suppression system pipe network type With OEM





Description



Hfc-227ea, heptafluoropropane, is a kind of clean agent used in the fire fighting industry. Though agent CO2 and halo is widely used all over the world, people keep finding other agents to instead them because they endanger the environment. Thus, fm200 gradually comes into people’s eyes.



Hfc-227ea fire suppression system now is considered as the proper good substitute for CO2 and halon series, but there still remains a problem that hfc-227ea doesn’t fit for those open areas, but just for occupied rooms. This limitation is due to the way how the system put out the fire. Fm200 fire suppression system utilizes the whole flooding way to put out the fire so it is not suitable for an open area.





Application



As above mentions, fm200 fire suppression system only fits for occupied places, the followings are listed for reference.



1/ High-tech medical

2/ Robotic equipment

3/ Telecommunication centers

4/ Textile manufacturing

5/ Records and data archives

6/ Electric utility facilities

7/ Testing/imaging equipment

8/ Media storage

9/ Chemical laboratories

10/ Military vehicles





Parameter





NO. Specifications Parameters
    4.2Mpa 5.6Mpa
1. Capacity 70l,100l,120l,150l,180l 90l,120l
2. Filling pressure 4.2Mpa 5.6Mpa
3. Filling density ≤950kg/m³ ≤1080kg/m³
4. Discharge time ≤10s ≤10s
5. Power DC24V/1.6A DC24V/1.6A
6. Nitrogen driving device 6.0±1.0Mpa 6.0±1.0Mpa
7. Storage surroundings

Temperature:-10~50℃

Relative humidity:≤97%

Temperature:-10~50℃

Relative humidity:≤97%

8. proportion ≤800m² ≤800m²
9. volume ≤3600m³ ≤3600m³





Component



Fm200 fire suppression system consists of two parts, one is fire extinguishing device part and other is electrical elements part. Because there is a special part only for talking the electrical elements, so here is not going to make it clear. The follow-ups is talking about the fire extinguishing device.

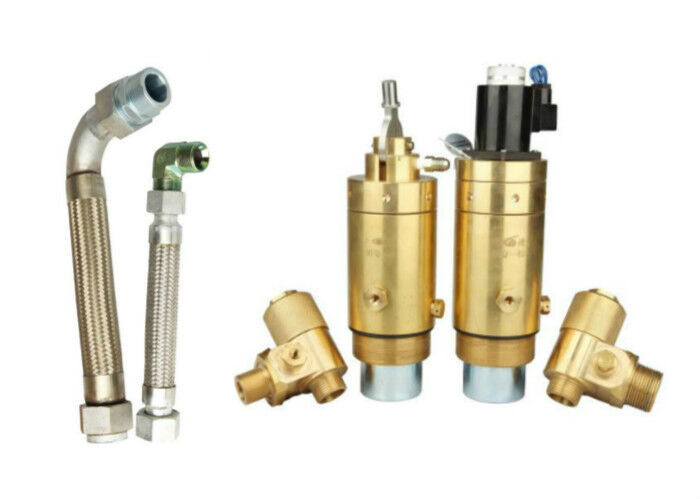

Pipe network fm200 fire suppression device is composed of the following components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and selective valve should be got rid of from its composition.

Three Activated Mode Hfc-227ea Fire Suppression System Pipe Network Type OEM 0





Advantages



There are a lot of strong points of this system, and here is going to have a summary for all the customer.

Strong points:



1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.



2/ Efficient spraying of gas. One set of pipe network system can make the discharge on average for big zones in less than 10 seconds with the help of the deployment of the pipeline.



3/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building, and those rooms are with different dimensions or on different floors. Meanwhile, it can help saving money based on the original by the least and safe utilization of fire extinguishing gas. Because of the way that the system adopts selective valves to guide the fm200 gas into the room on fire, a smarter way to avoid an accident is to monitor each room's situation. Lastly, one thing must be noticed that the combined rooms should be less than eight including eight in accordance with our standard.
