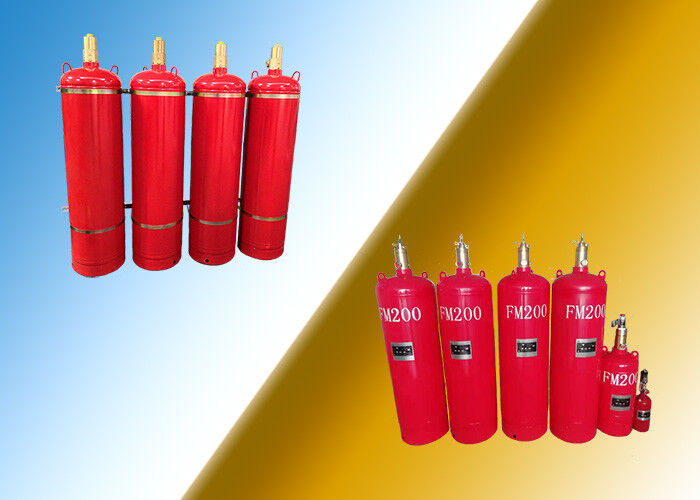

4.2MPa Pipeline Fire Suppression System

Product Details

Place of Origin: China

Brand Name: Xingjin / OEM

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5.6

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:

fm 200 system

,

fm200 suppression system

Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.6A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.6A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Product Description



FM200 4.2MPa Pipeline Fire Suppression System Without Driving Device

Description

HFC-227ea(FM200) clean agent automatic fire suppression system is widely used in China and all over the world. Its most strong point is that this system meets the world’s requirement of environmental protection. It will not hurt the ozone layer even for 1% possibility. The other strong point is that such as the clean, odorless and colorless agent, the easy installation and so on, make it the best substitute for the halon 1301 in people’s mind.
Fm200 gas fire suppression system works more efficient when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. This system also distinguishes itself by the fast spraying time with less than 10s.


Parameters

NO.Specifications4.2Mpa system5.6Mpa system
1Capacity40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr70Ltr,90Ltr,120Ltr
2Device modelQMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2QMP70/5.6, QMP90/5.6, QMP120/5.6
3Filling pressure4.2Mpa5.6Mpa
4Max filling rate0.95kg/L1.08kg/L
5Discharge time≤10s
6PowerDC24V/1.6A
7Nitrogen driving device6.0±1.0Mpa
8Storage surroundingsTemperature:-10~50℃
Relative humidity:≤97%
9Proportion≤800m²
10Volume≤3600m³




4.2MPa Pipeline Fire Suppression System 0


Components

The pipe network type fm200 fire suppression system consists of actually three parts: the The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.

4.2MPa Pipeline Fire Suppression System 1

Application

• Computer room, communication room, power distribution room, library, archives,
Museum, etc.

• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
