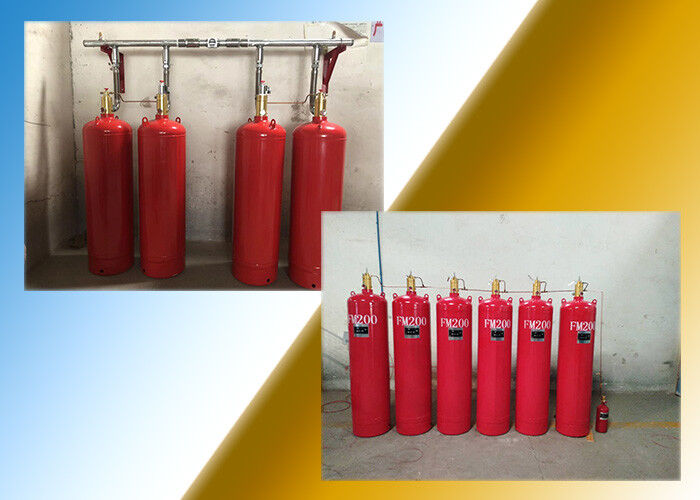

3600m³ Museum 120L FM200 Gas Suppression System

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 suppression system

,

firefighting equipments

,

120l fm200 gas suppression system

Nitrogen Pressure Of Driving Device:
6.0±1.0Mpa(20℃)
Spraying Time:
≤10s
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Capacity Of Cylinder:
40L, 70L, 100L, 120L, 150L, 180L
Type:
Pipe Network
Nitrogen Pressure Of Driving Device:
6.0±1.0Mpa(20℃)
Spraying Time:
≤10s
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Capacity Of Cylinder:
40L, 70L, 100L, 120L, 150L, 180L
Type:
Pipe Network
Product Description

FM200 Gas Fire Suppression System with 4.2MPa Storage Cylinder





Parameter:

NO. Specifications 4.2Mpa system 5.6Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2Mpa 5.6Mpa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.6A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³




Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and it also saves much money for employment to supervise the protective area.



    Management of Multiple zones is also in the safe control of the whole system. We can use one system to protect multiple zones through selective valves. It can let the whole system alternative aiming at different protective zone. Agent can be discharged into where the fire happens. It will be very efficient to put out fire in short time. One thing that need to mention, is that a little room should be prepare to be as storage space for the whole system.



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.



Working principle:



    Here is the illustration of working principle to whole system,





                3600m³ Museum 120L FM200 Gas Suppression System 0
