Home > products > Automatic Fire Suppression Tube > 0.5m³ Automatic Fire Suppression Tube For Electrical Cabinet

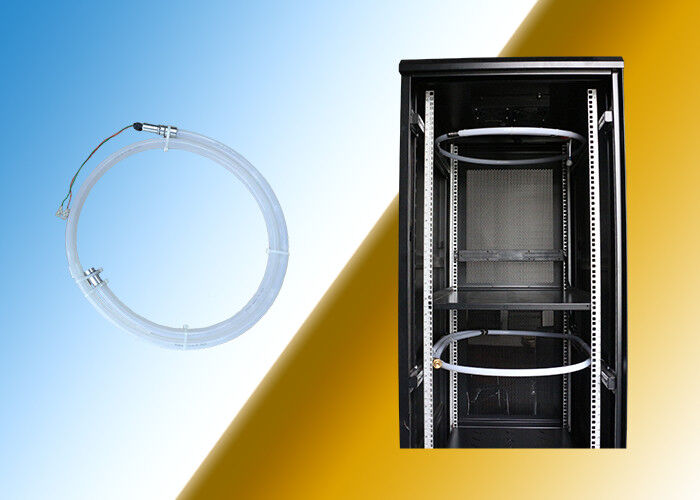

0.5m³ Automatic Fire Suppression Tube For Electrical Cabinet

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE

Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N

Payment & Shipping Terms

Minimum Order Quantity: 100 sets

Price: negotiation

Packaging Details: Plywood case, carton or as requirement

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

0.5m³ Automatic Fire Suppression Tube

,

Hfc227ea Automatic Fire Suppression Tube

Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea / Novec1230
Color:
White
Length:
200cm, 300cm, 400cm, 500cm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent:
500g±5g; 750g±5g; 1000g±10g; 1250g±10g
Blasting Temperature:
110℃±10℃
Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea / Novec1230
Color:
White
Length:
200cm, 300cm, 400cm, 500cm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent:
500g±5g; 750g±5g; 1000g±10g; 1250g±10g
Blasting Temperature:
110℃±10℃
Product Description

0.5m³ Automatic Fire Suppression Tube For Electrical Cabinet



Automatic fire suppression tube for electrical cabinet



Features:

1.Blasting Temperature:110℃±10℃;

2.Fire Agent: Clean agent, FM200/Novec1230. They are very friendly to human beings and the environment.

3.Easy to clean or don't have to clean it up. Because the fire agent is gas.

4.Without any waste materials after using.

5.Easy to install and use.

6.Normally, the length of our tubes are 200cm-500cm. But the length can be changed according to your request.





Technical Specification:



Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage (cubic meter)

Working temperature(℃) Blasting temperature(℃)
XJ200H/N Hfc-227ea/
Novec 1230
500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±5 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10





Application:

The relatively confined space is protected by the Tube Type Automatic Fire Systems, including but not limited to:


1) Boat and yacht engine compartments.



2) Engine spaces in all on- and off-road vehicles, including cars, vans, buses, minibuses, trucks, rally cars, mining or construction equipment, etc.


3) Control boxes, switch boards, server panels, and electric panels.





0.5m³ Automatic Fire Suppression Tube For Electrical Cabinet 0

























































Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

0.5m³ Automatic Fire Suppression Tube For Electrical Cabinet 1



Company Introduction:


Guangzhou Xingjin Fire Equipment Co., Ltd., a company that plays a significant role in communication between China and the rest of the globe, is situated in this city and is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and we focus on the research and development of HFC-227ea (FM200) products with the help of our experienced and qualified staff, which includes the program design team, the skilled installation team, the quality detecting team, and the after-sale service team. These days, many of our well-known FM200 products are in use, including the automated FM200 fire extinguisher (ceiling mounted style), the cabinet type FM200 fire suppression system, the pipe network FM200 fire suppression system, the fire detecting tube suppression system, and the automatic fire suppression tube.



0.5m³ Automatic Fire Suppression Tube For Electrical Cabinet 20.5m³ Automatic Fire Suppression Tube For Electrical Cabinet 3



After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.



FAQ



Q1: Are you a trading company or a manufacturing?

A1: Our company is a producer.



Q2: Do OEM items exist?

A2: Your own artwork and design are appreciated.



Q3: Where is your factory located? Can I go there?

A3: Shilou, Panyu, Guangzhou, Guangdong, China is where our factory is located.

Yes, of course. We always look forward to seeing you.



Q4: How can I get to your plant, question 4?
A4: You can take a taxi or take the subway to get here because of how easily it can be reached. If arriving by subway, you must take the line 4 and alight at the Shiqi station. Take the No. 126 bus out of the station after that, and get off at Yuexi station.
